Sale!

Dawes Spire 1.0 Crossbar Hybrid Electric Bike – Black

Be the First to Write a Review

Original price was: £1,799.00.Current price is: £1,299.00.

The all-new Dawes Spire 1.0 Crossbar electric bike is a versatile hybrid; perfectly suited for the daily commute, popping to the shops or a weekend of riding your local country park and canal towpaths.

Compare

Add ons & Accessories

Below is a list of our most popular and best selling products bought by our customers.

  • Raleigh Mission Pioneer Navy

    £24.99
    Select options This product has multiple variants. The options may be chosen on the product page Compare
  • Cargo Waterproof Pannier Bag

    £49.99
    Add to basket Compare
  • XLC Light Set Front Rear Cupid Oberon

    £28.99
    Add to basket Compare
  • Beto Steel Track Pump

    £21.99
    Add to basket Compare

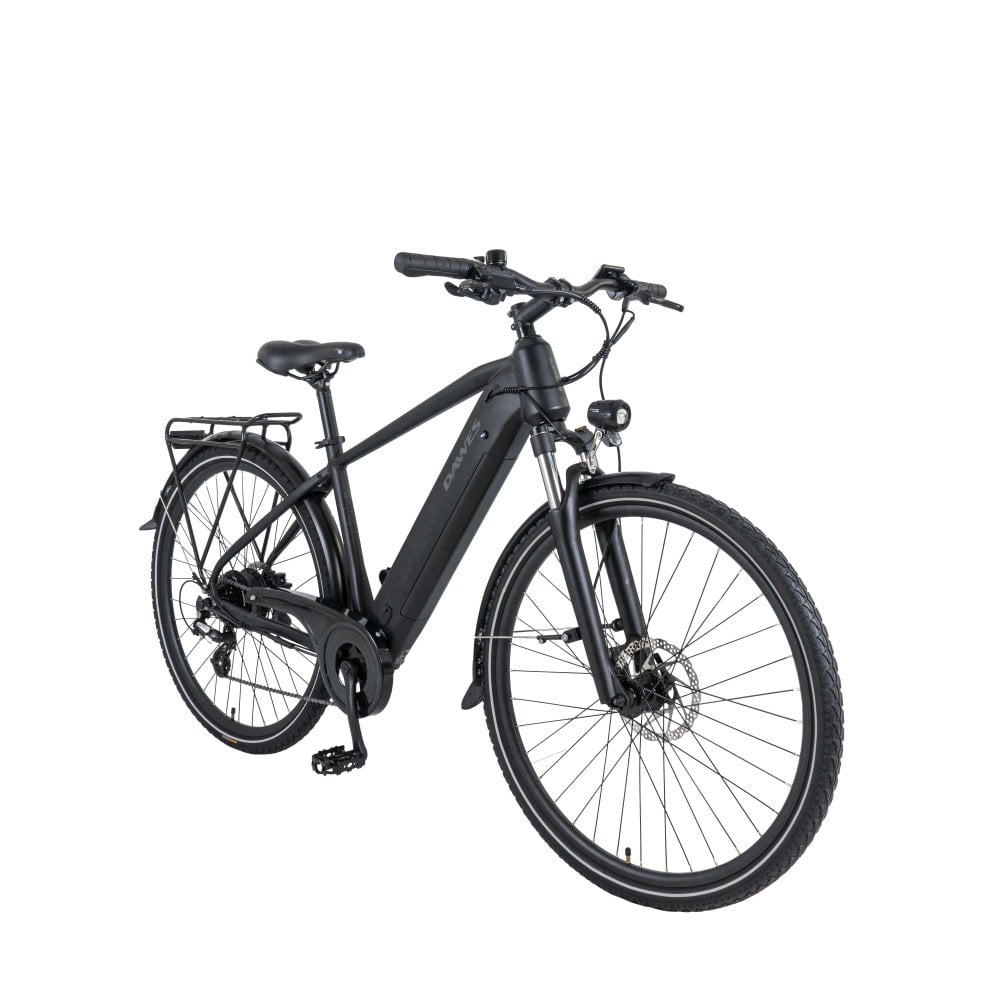

Dawes Spire 1.0 Crossbar Hybrid Electric Bike – Black

The all-new Dawes Spire 1.0 Crossbar electric bike is a versatile hybrid; perfectly suited for the daily commute, popping to the shops or a weekend of riding your local country park and canal towpaths.

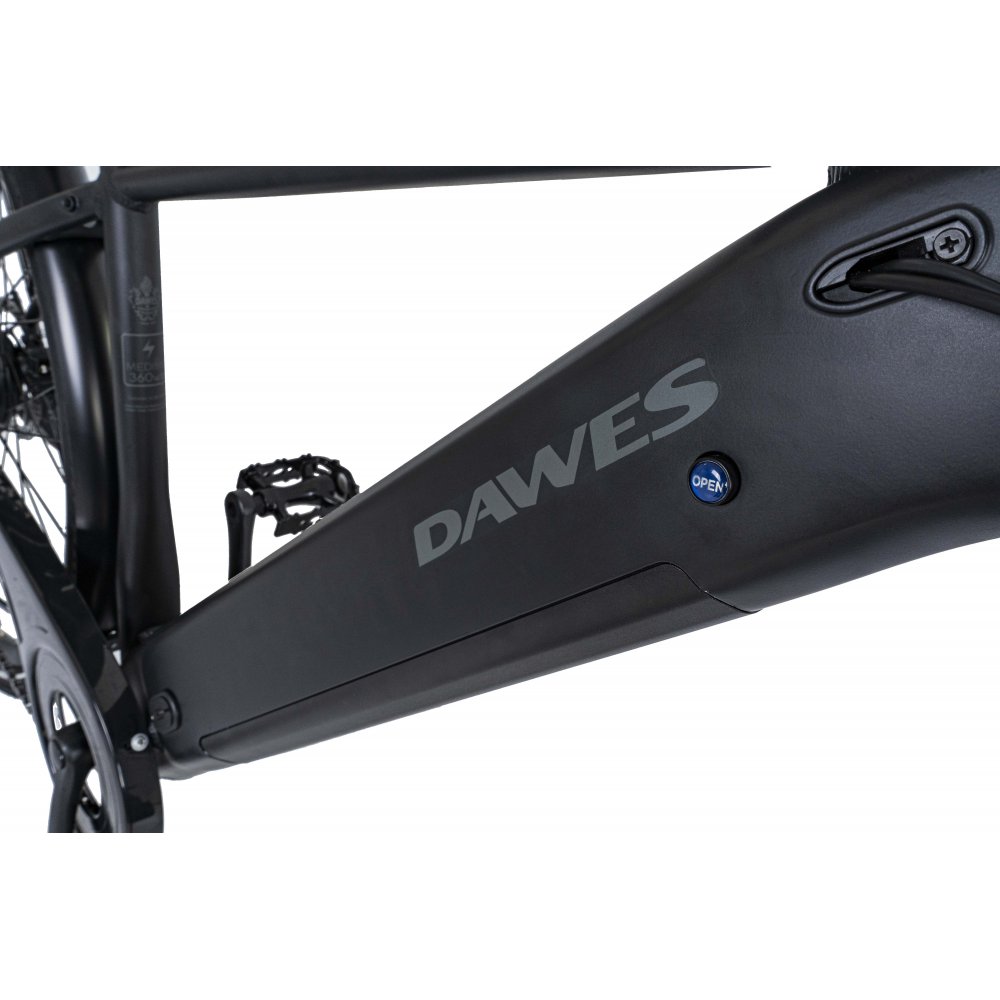

The crossbar frame is equipped with a neatly integrated 360wh battery that can deliver over 40 miles / 64km of assisted pedalling. The power is delivered from within the Bafang rear hub motor.

With 32nm of torque, the Spire 1.0 delivers plenty of power to keep the wheels turning up dragging hills and make flat terrain a breeze. The battery uses high quality cells from Samsung, another leading brand in the electric bike industry. The battery can be charged on or off the bike, with a complete charge from flat within 5 hours and is easily removed without tools for added convenience. An integrated battery lock ensures peace of mind when left in public.

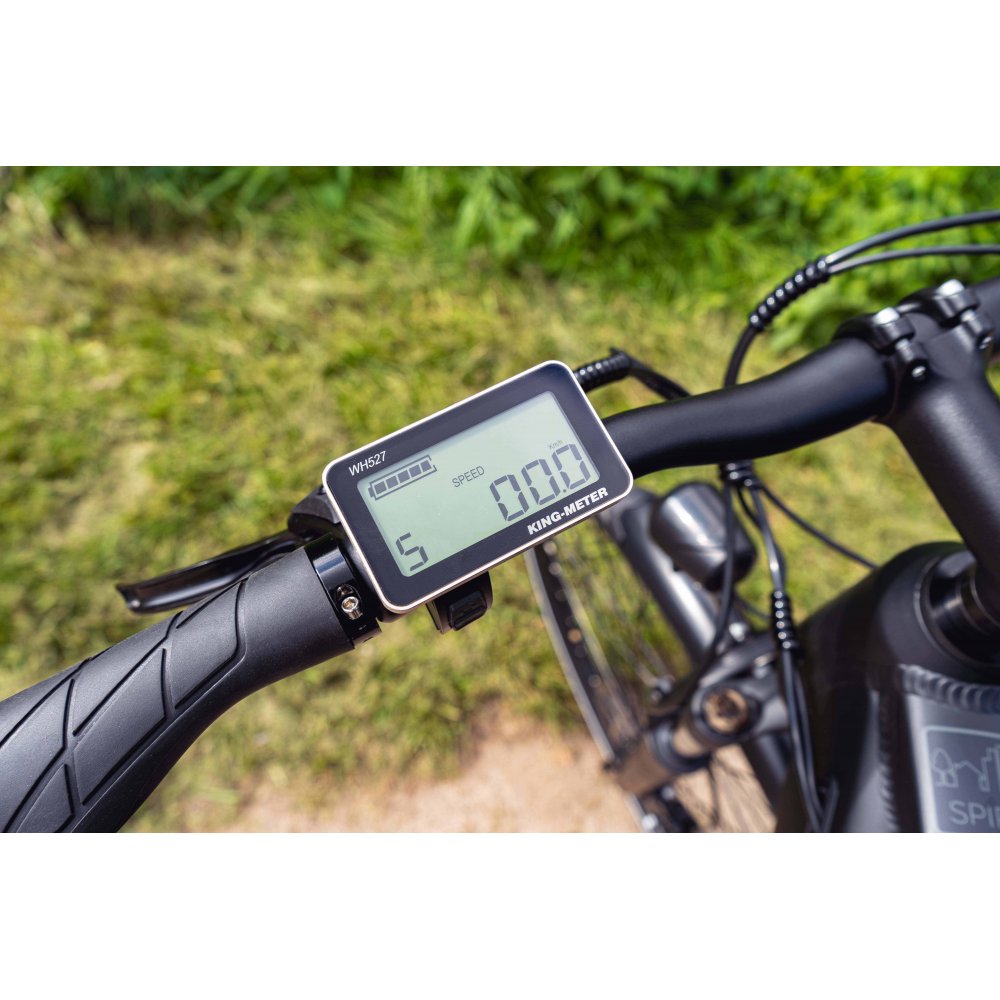

An easy-to-read display and intuitive computer system offers 5 power assist modes and plenty of information to track your ride including; battery level, current speed, average speed, max speed, trip distance and trip time. To make things easy when off the bike, we’ve fitted a walk assist mode that engages the motor to help drive the bike when pushing up steep hills.

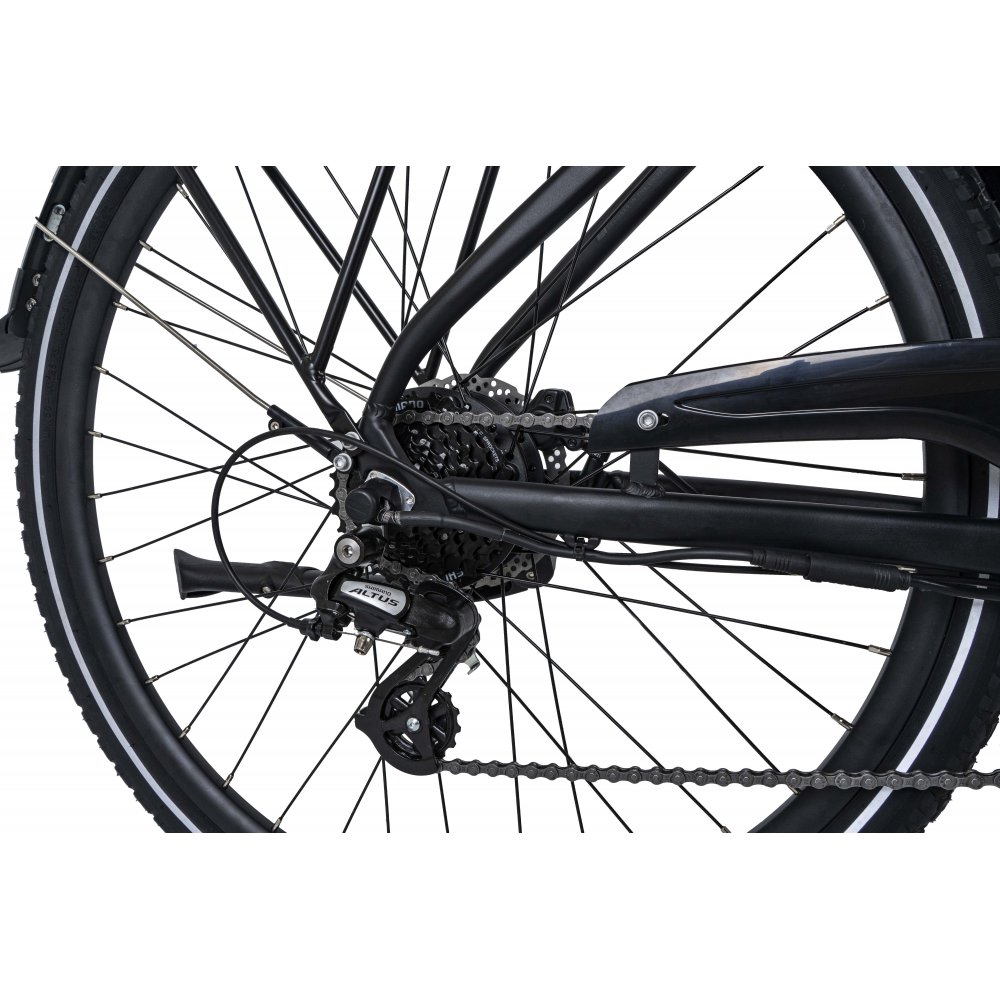

We’ve equipped the Spire 1.0 with dependable 1×8 speed Shimano Altus gearing and powerful, low maintenance Tektro hydraulic disc brakes to help keep you in control when navigating the city traffic or local cycle path. A 70mm travel suspension fork with hydraulic lockout takes care of bumps and uneven terrain.

Key Features:

  • Maximum Range – 28 miles / 45km
  • Recharge Time – 5 hours
  • Maximum Assisted Speed – 15.5mph / 25kmh
  • Motor – Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed
  • Motor Type – Rear hub motor
  • Motor Torque – 32nm
  • Battery – Integrated 360wh (36V 10.0ah), Samsung cells, Removable for charging on or off the bike
  • Charger – 42V 2A, 3 pin UK plug
  • Display – Handlebar LCD display, 5 modes, Walk assist, Battery Indicator, Speed, Average speed, Max speed, Odometer, Trip, Trip Time
  • Speed Sensor – Left hand crank mounted
  • Frame – 6061 aluminium crossbar frame, Internal cable routing, Fully integrated removable battery, 700c wheels
  • Fork – 700c suspension fork, Hydraulic lockout, 70mm travel
  • Headset – Sealed bearings

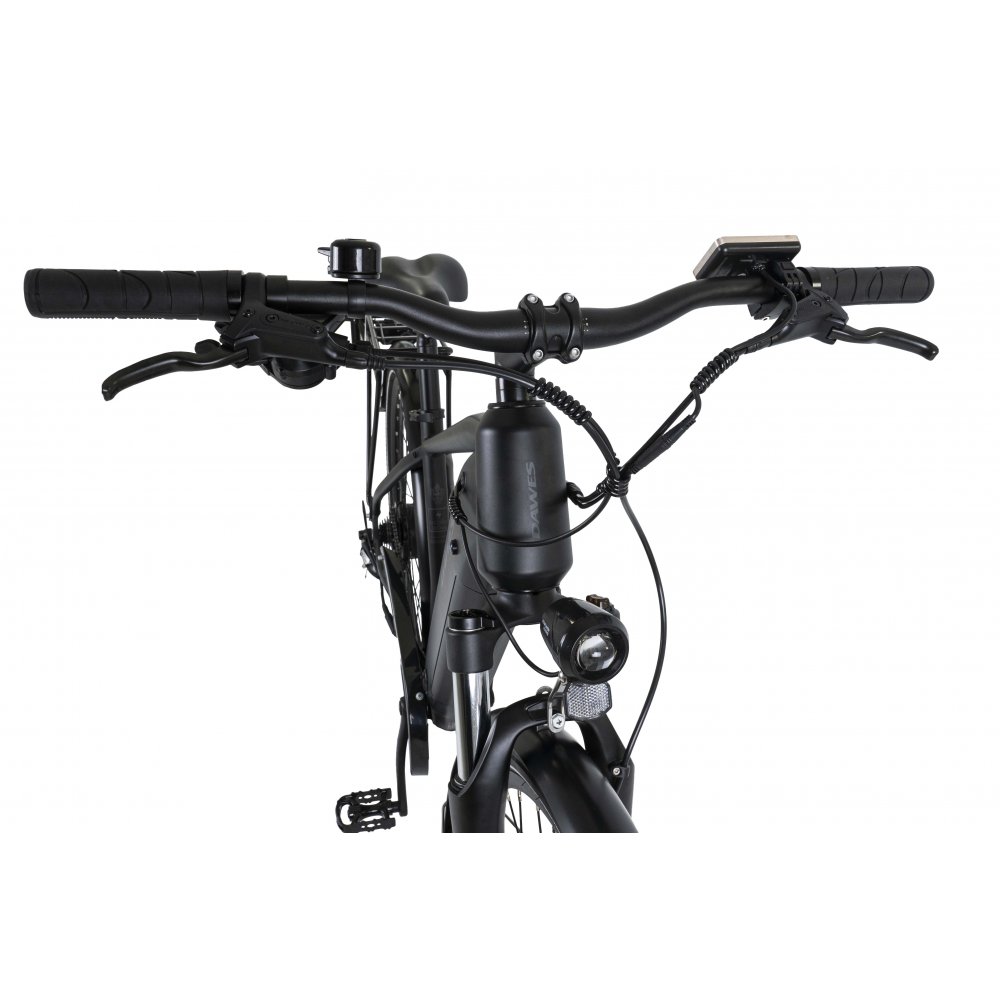

  • Handlebar – Aluminium, 680mm wide, 20mm rise, 6° backsweep
  • Stem – Aluminium, 90mm reach, 31.8mm
  • Grips – Ergonomic comfort, Lock on, Black
  • Gear Shifters – Shimano Altus SL-M315 Rapidfire Plus, 8 speed
  • Rear Derailleur – Shimano Altus RD-M310, 8 speed
  • Chain – KMC Z8.1, 8 speed
  • Cassette/Freewheel – Shimano Altus CS-HG200, 12-32T, 8 speed
  • Chainset – Aluminium, 42T, 170mm
  • Number of Gears – 8
  • Bottom Bracket – Sealed
  • Pedals – Alloy city style, Black
  • Brakes – Tektro M275 hydraulic disc, 180mm rotor (front), 160mm rotor (rear)
  • Brake Levers – Tektro M275 hydraulic disc
  • Front Hub – Alloy with quick release, 36 hole
  • Rear Hub – Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed
  • Rims – 700c double wall alloy, 36 hole
  • Tyres – Kenda K197, 700x45c, Puncture protection and reflective side strip
  • Saddle – Selle Royal Freeway
  • Seat Post – Aluminium, 350mm, 30.4mm
  • Lights – Front – Star Union LED, 20 Lux, Fork mounted, Powered by bike battery / Rear – Star Union 3 LED with integrated reflector, Pannier rack mounted, Powered by bike battery
  • Mudguards – Full length, 56mm wide, Black
  • Kickstand – Chainstay mounted, Aluminium
  • Pannier Rack – Aluminium with rear light mounted

Dawes Spire 1.0 Crossbar Hybrid Electric Bike – Black

Battery Size

10 Ah / 360 Wh

Type

Hybrid

Brake Type

Hydraulic Disc

Brand

Dawes

Colour

Black

Drive Type

Rear Hub

Frame Size

Large, Medium

Frame Style

Gears

8

Gender

Men & Unisex

Material

Aluminium

Range (miles)

Suspension

Front

Top Speed (mph)

Type

Wheel Size

700c

Battery Specification:

  • Battery: 10Ah 36v – Up to 28 Miles*

*This will vary depending on weight of user, terrain and mode of pedal assistance used.

Extra Information:

  • This Electric Bike will be SUPPLIED ASSEMBLED complete with charger, rear rack and everything you see included.
  • Upon arrival, simple attachment of the pedals and the straightening of the handlebar will be required.
