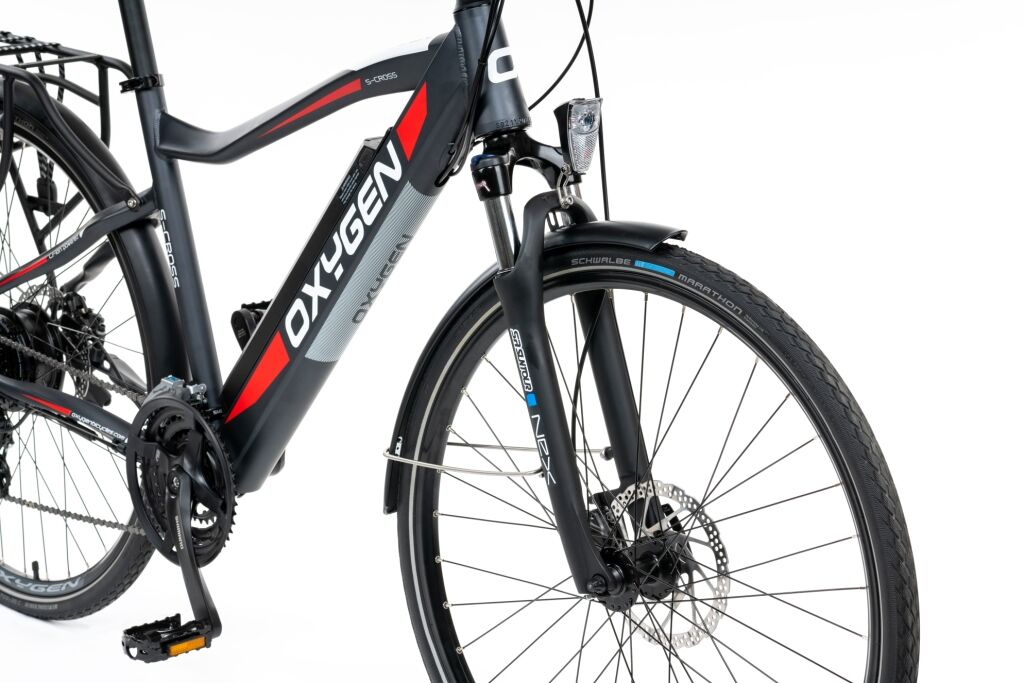

Oxygen S-CROSS CB MK2 Hybrid Electric Bike – Grey

Be the First to Write a Review

£1,549.99£1,729.99

MK2 Model – Built to adapt to terrain & environment. Performing flawlessly in unpredictable, rural settings before setting pace on the open road.

Compare

Oxygen S-CROSS CB MK2 Hybrid Electric Bike – Grey

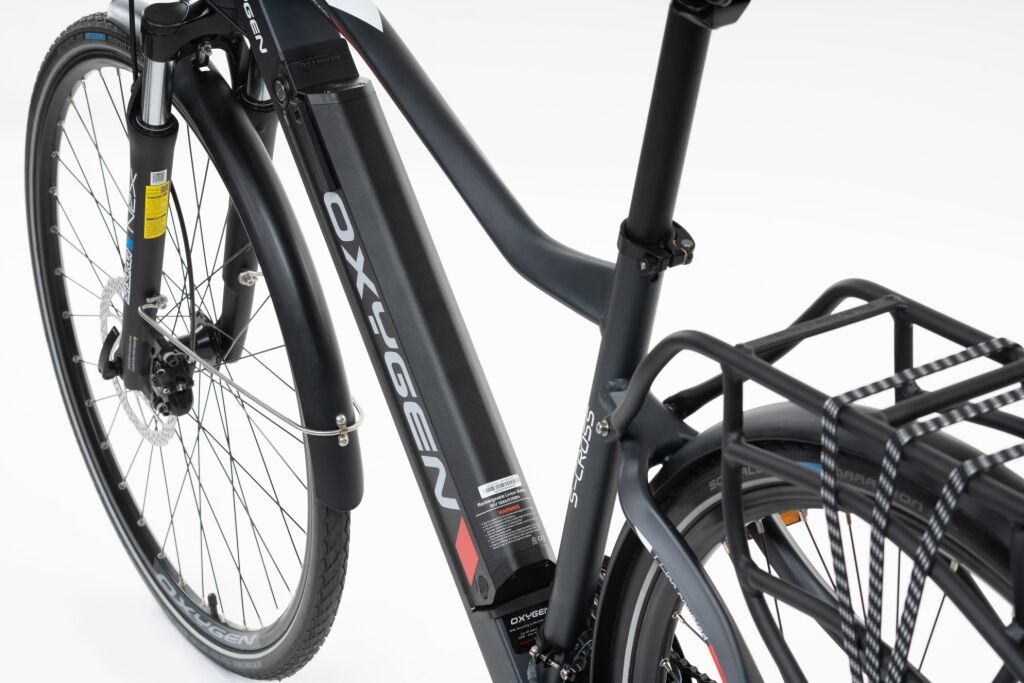

The S-Cross CB Commuter/trekking bike has been designed with a discrete in frame 36v battery which comes with the option of 3 battery sizes (10.4ah, 13ah or 16ah), a new centrally mounted backlit LCD display with 6 power assist levels and the further option of 3 power modes, a handlebar mounted USB port for charging mobile devices from the bikes battery, a powerful 250w motor, 24 speed Shimano gearing, disc brakes, front and rear mudguards, pannier rack, front and rear lights.

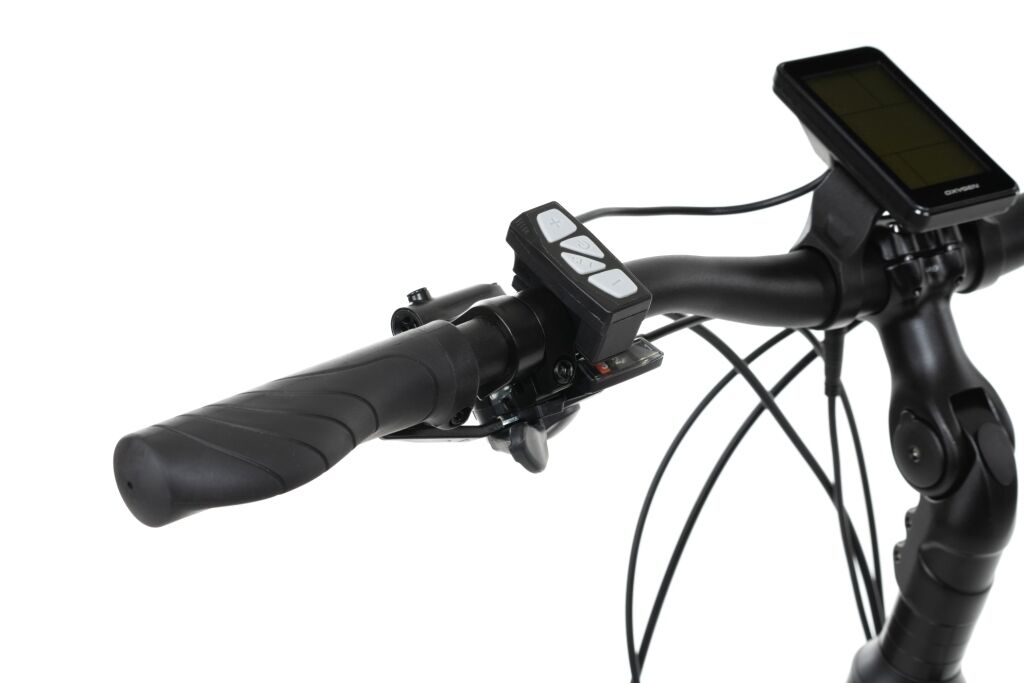

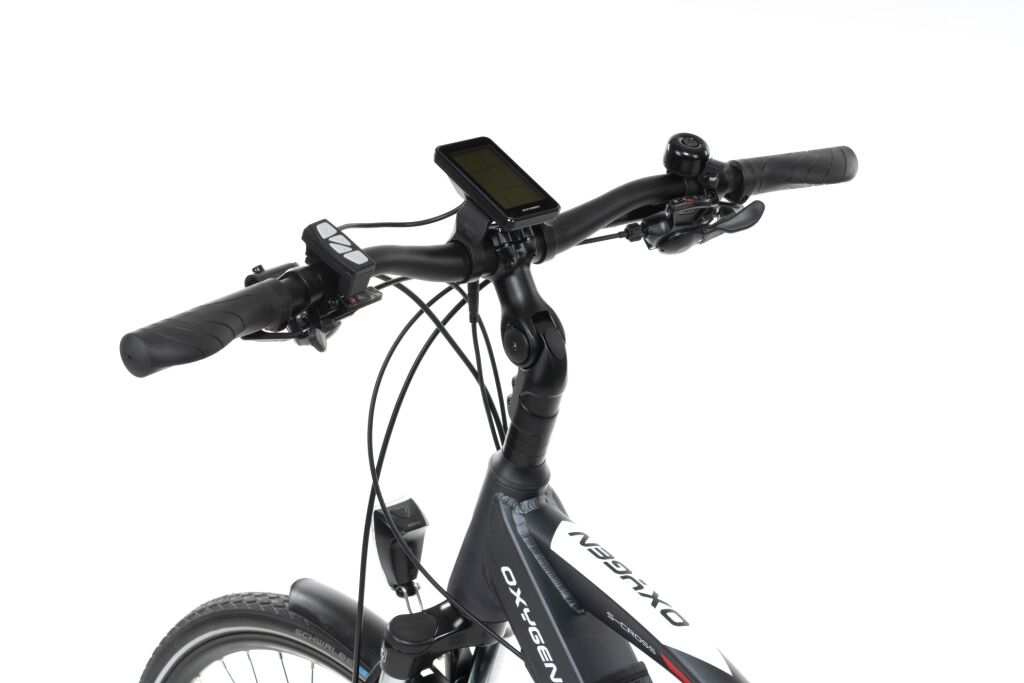

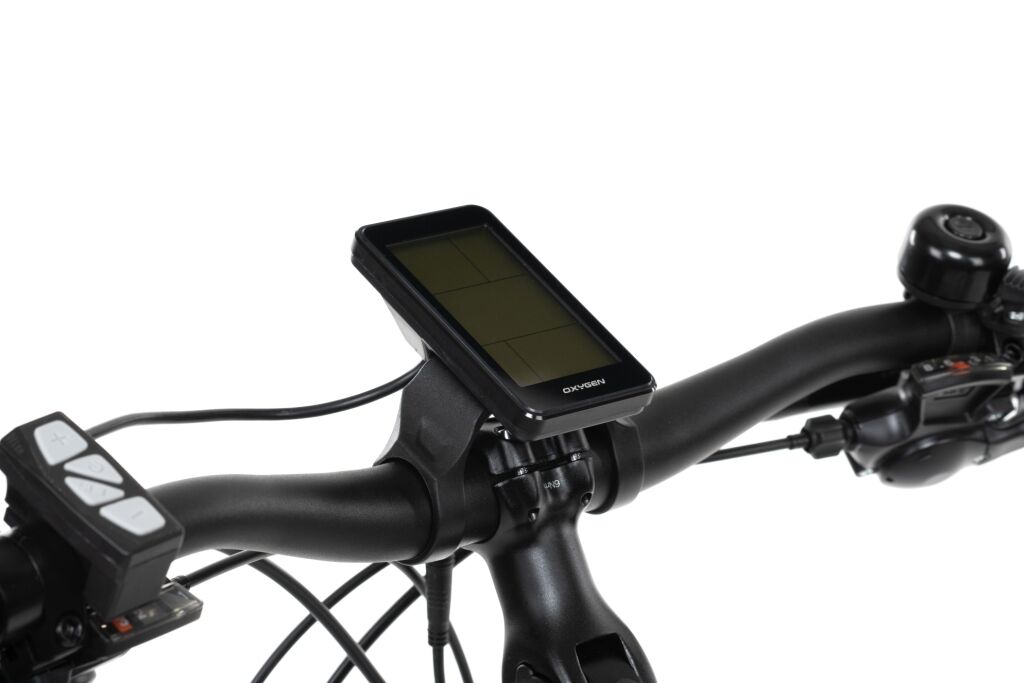

LCD Console

The S-Cross MTB features a new easy to read centrally mounted LCD Backlit display with a handlebar mounted USB port to charge your devices while on the move.

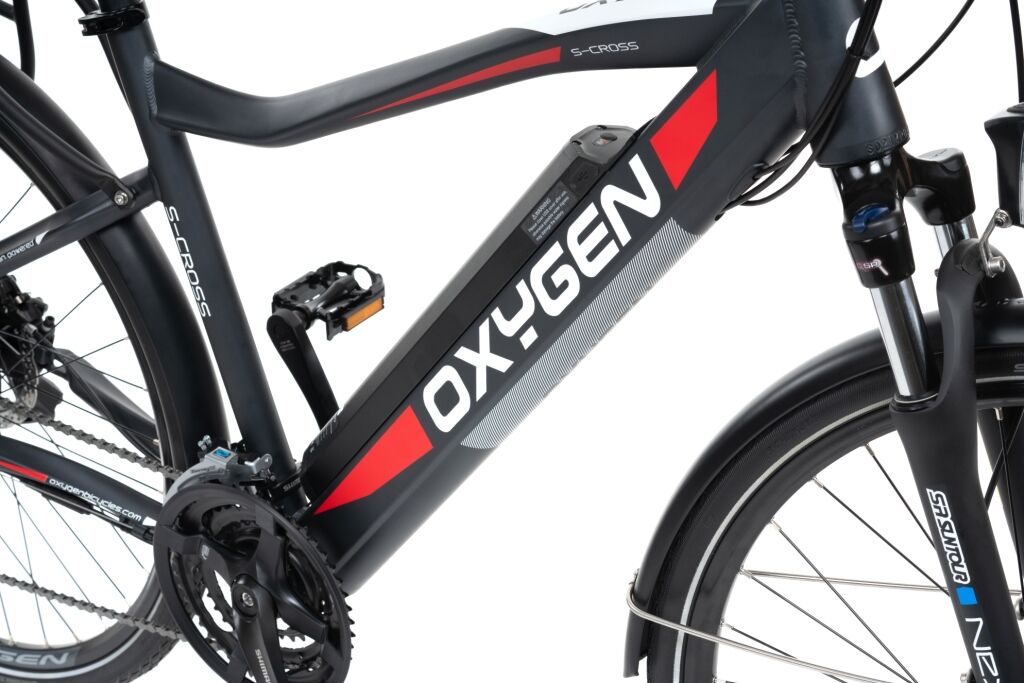

Alpha Alloy Frame

Alpha 6061 T4/T6 is the frame technology which delivers the superlight and rigid frames for our Oxygen Electric Bikes.

All of our frames are made of alloy mix containing a mix of aluminium 6061 and magnesium. The 6061 alloy delivers a super lightweight frame with maximum strength which is crucial to achieve reliability. Additionally every frame is hand welded to ensure the highest quality.

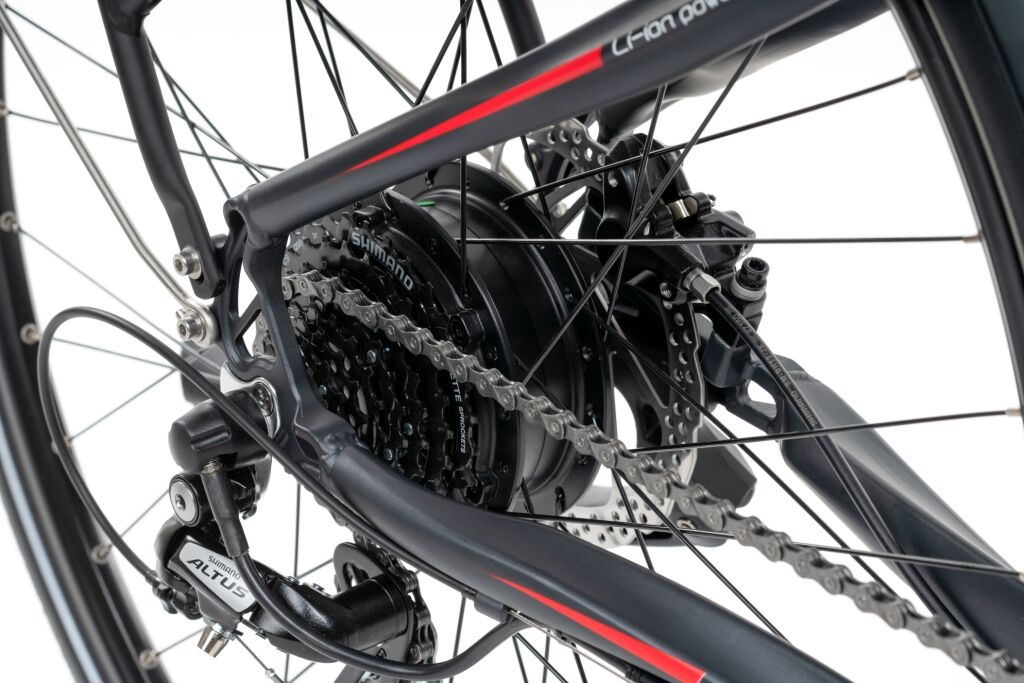

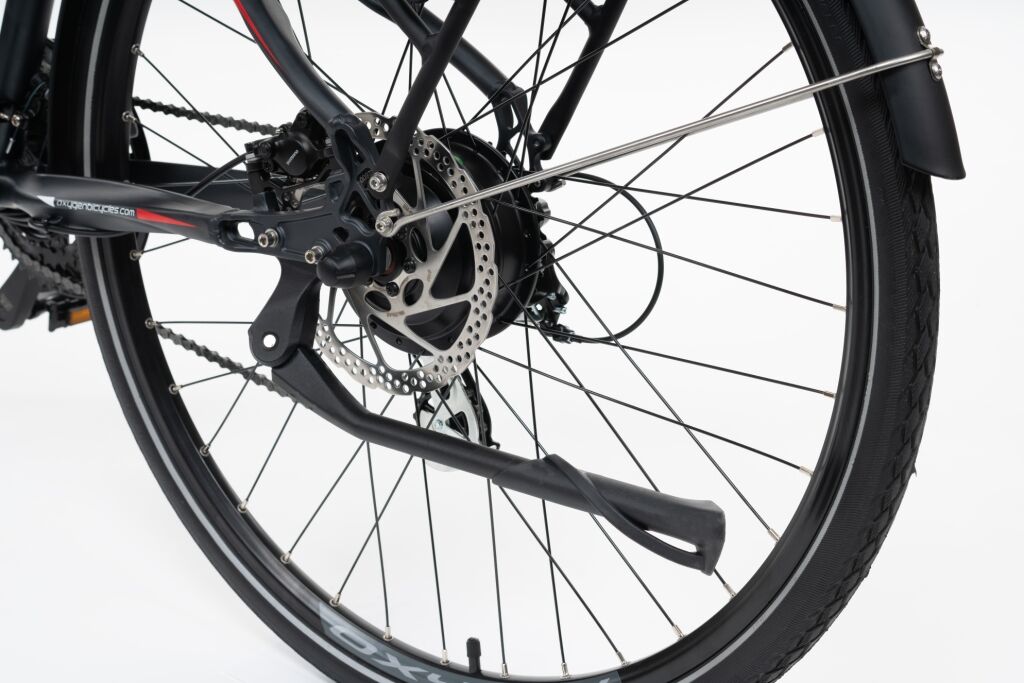

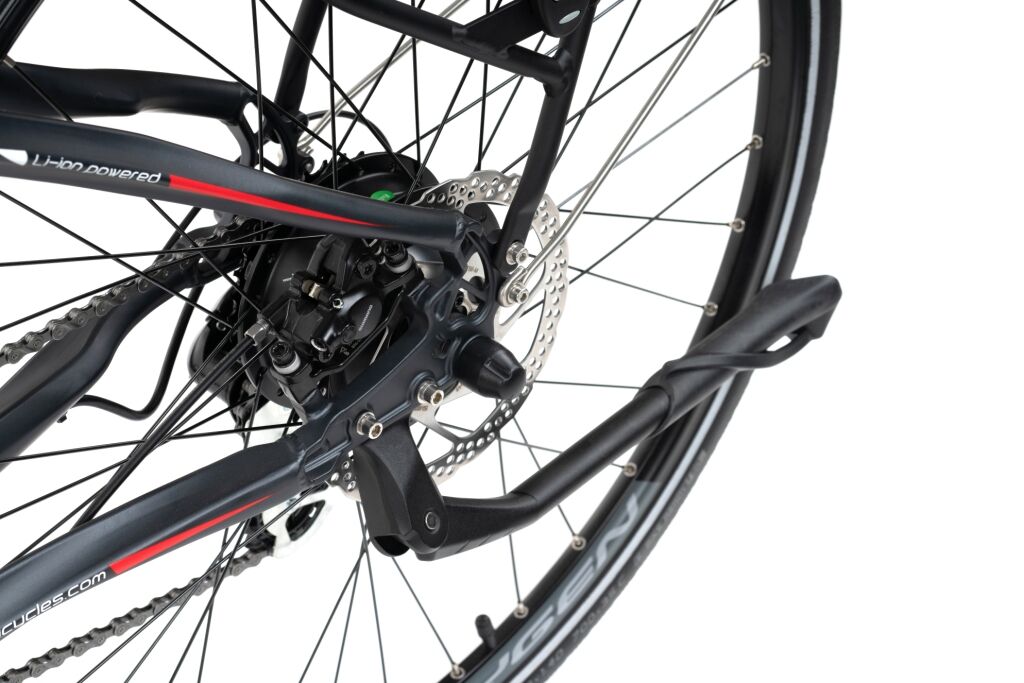

High Torque Rear Motor

The S-Cross CB uses a powerful 250w 8-Fun motor for smooth, reliable power delivery and great hill climbing ability.

Key Features:

  • Motor: 36V 250W Shengyi DGWH2S
  • Frame: Alloy 6061 Cross Bar

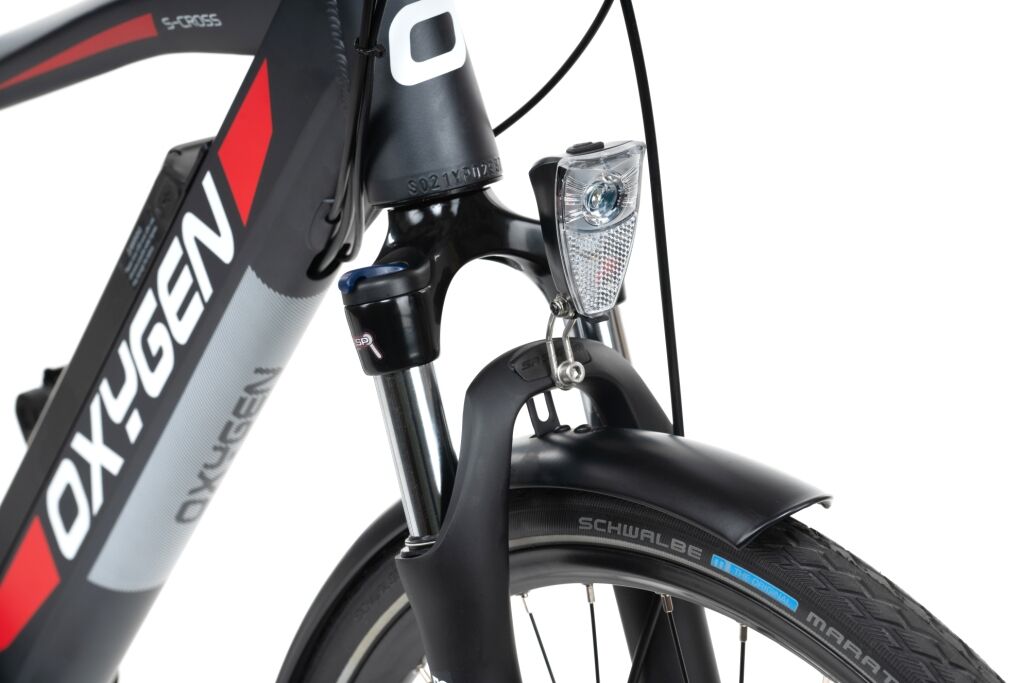

  • Forks: SR Suntour NEX HLO DS
  • Gears: Shimano Altus 24 Speed

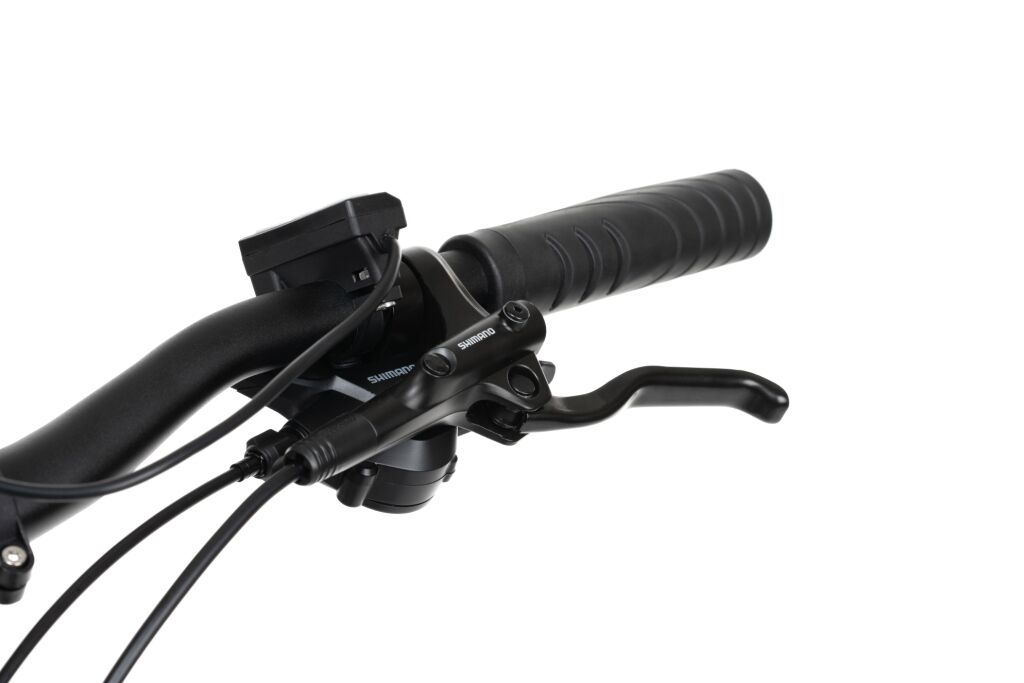

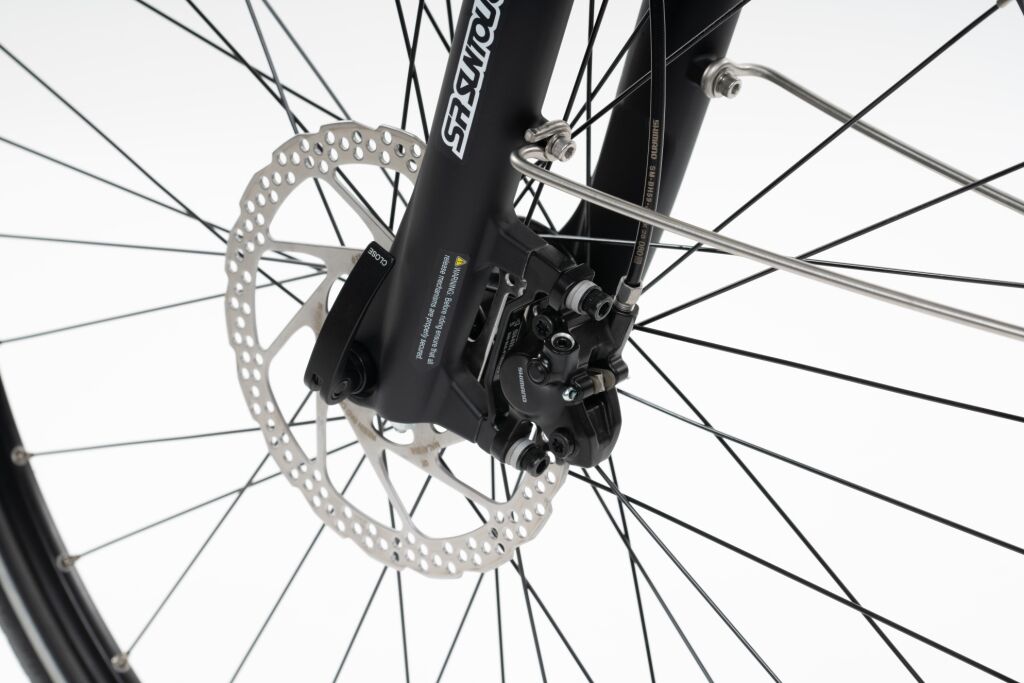

  • Brakes: Shimano Hydraulic Disc
  • Wheels: 700c Remerx Top Disc Rim x Shimano HB-TX505 Hub
  • Battery: Choice of 10.4Ah up to 30 Miles* or 13Ah Battery (LG Cells) – up to 30,50,70 Miles*

* This will vary depending on weight of user, terrain and mode of pedal assistance used.

Specification:

Frameset

  • Size: 19"
  • Frame: AI 6061 T4&T6
  • Front Suspension: SR Suntour XCT HLO DS 27,5″

Electric Drive

  • Motor: 36V 250w High Torque Shengyi DGWX2C Brushless
  • Battery: 36v 10.4Ah or 36V 13Ah or 36v 16Ah LG Cells
  • Controller: OXYGEN Cloud Drive
  • Pedal Assist: Variable assist level – 6 levels
  • Charger: Anglie 42V 2A
  • Display: Backlit easy read LCD – Central

Performance

  • Range: Up to 30,50,70 Miles*
  • Max Speed: 15.4mph dependent on terrain
  • Max Power: 250W (peak 576W)
  • Weight: 26.4Kg including battery
  • Max Payload: 120Kg

Wheels

  • Rims: OXYGEN – Remerx Top Disc
  • Spokes: 14G – 2 / 270 – 310 black, resin
  • Hubs: Shimano HB-TX505
  • Tyres: Shwalbe Marathon GreenGuard

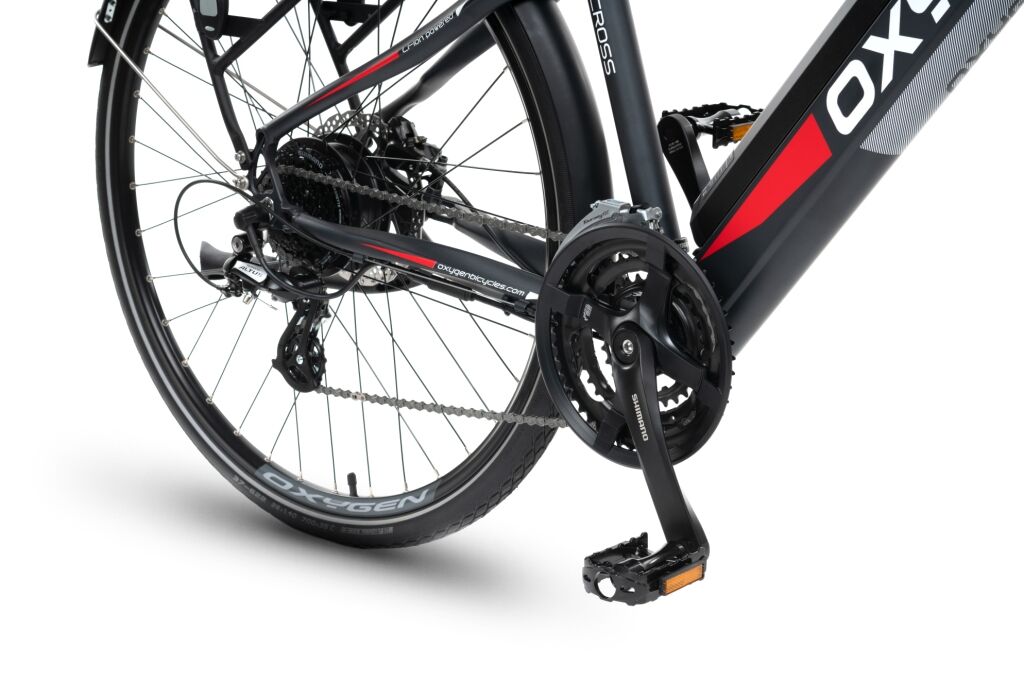

Drivetrain

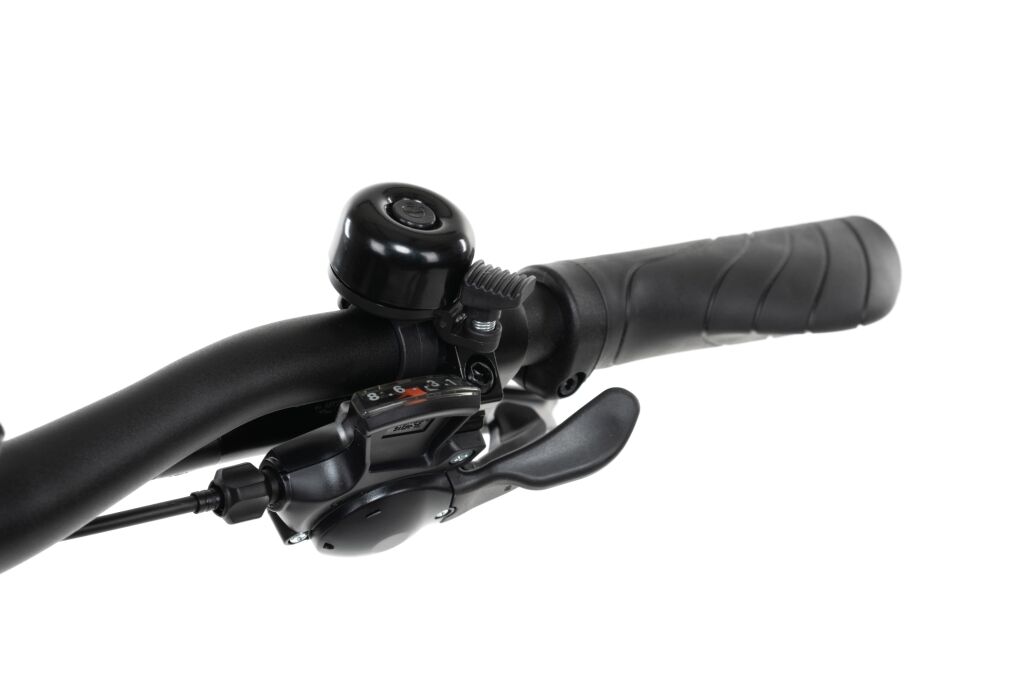

  • Shifters:
    • Shimano SL-M315 8 SPEED
    • Shimano SL-M315-L 3 SPEED RAPIDFIRE PLUS
  • Rear Derailleur: Shimano Altus 8 Speed
  • Chain: KMC 1/2″ x 3/32″
  • Crank: Shimano Tourney TX 48x38x28T
  • Cassette: Sunrace 13-34T

Components

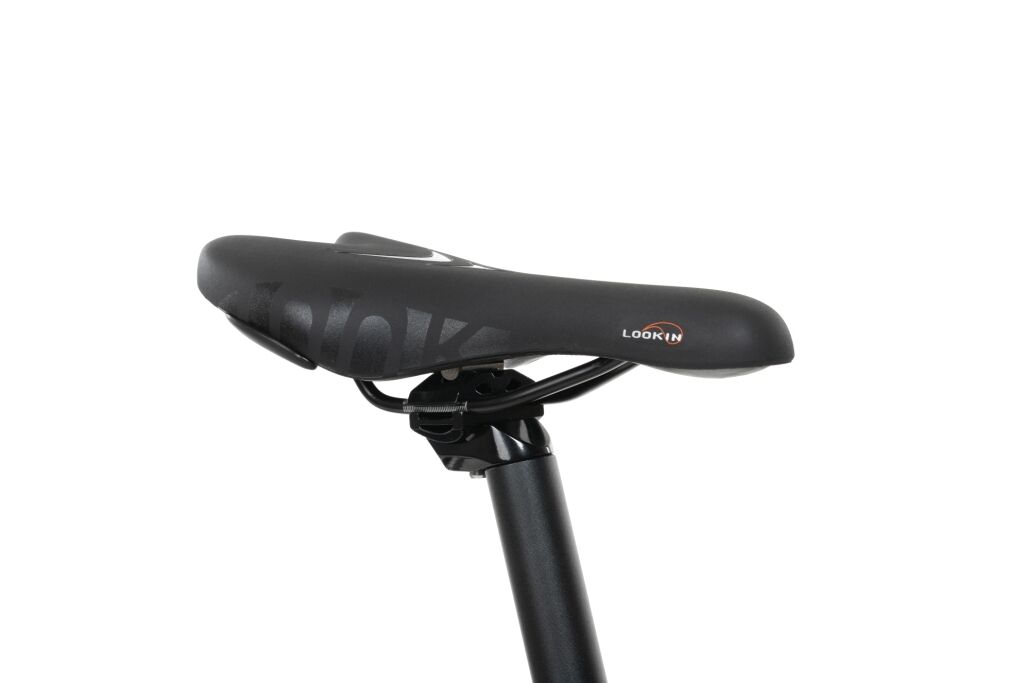

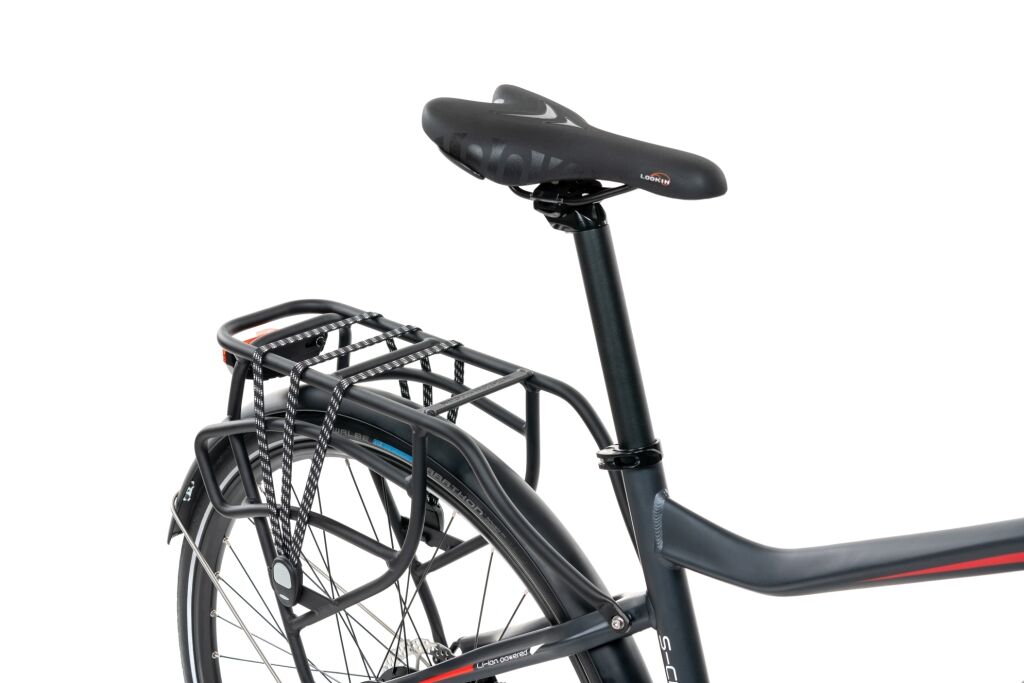

  • Saddle: Selle Royal Gel Saddle
  • Seat Post: Lightweight Alloy 30.9mm
  • Handlebars: A-One Riser 31.8mm 640mm

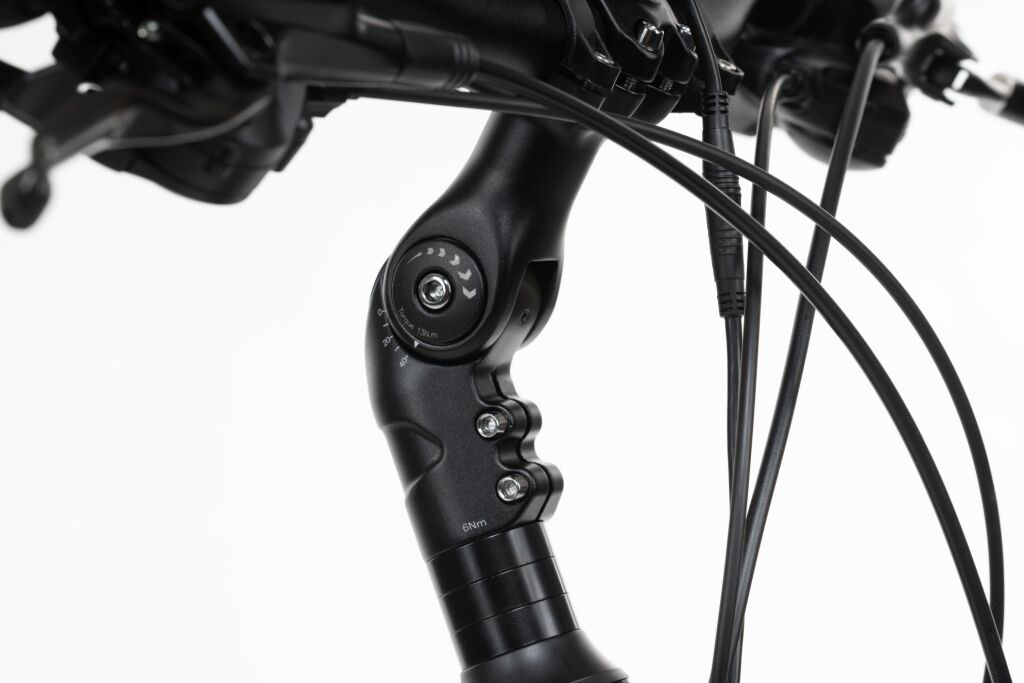

  • Stem: Promax 105mm adjustable
  • Headset: Promax Integrated
  • Brakes: Shimano Hydraulic Disc Front and Rear
Battery Size

10 Ah / 360 Wh, 13 Ah / 468 Wh, 16 Ah / 575 Wh

Wheel Size

700c

Top Speed (mph)

Frame Style

Colour

Grey

Brake Type

Disc

Suspension

Front

Gears

24

Drive Type

Rear Hub

Battery Voltage

36

Brand

Oxygen

Battery Specification

  • 36v 10.4Ah or 36v 13Ah or 36v 16Ah LG Cells

Extra Information:

  • This Electric Bike will be SUPPLIED ASSEMBLED complete with charger and everything you see included.
  • Upon arrival, simple attachment of the pedals and the straightening of the handlebar will be required.
