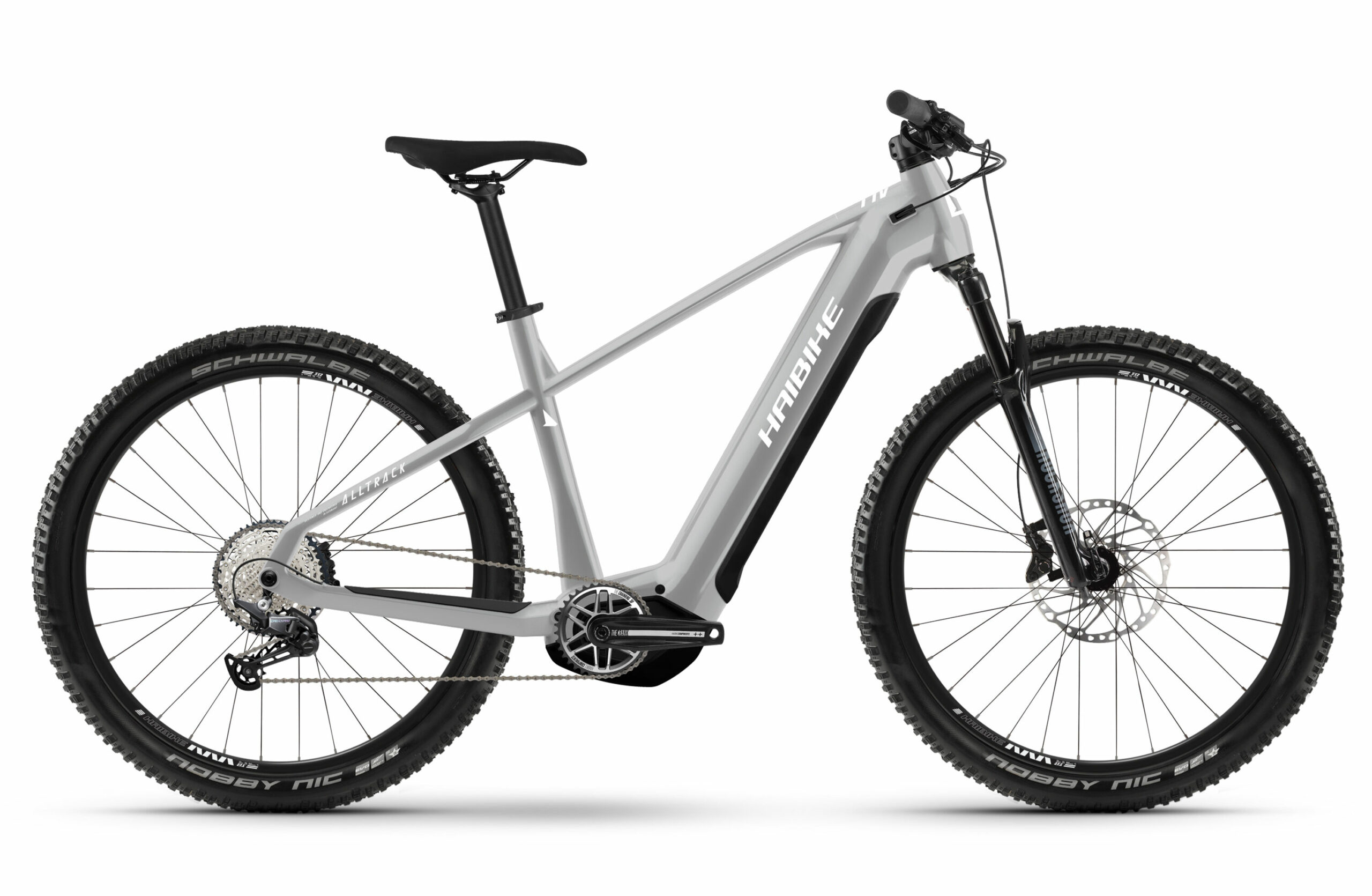

Haibike AllTrack 7 Hardtail Electric Mountain Bike 2023, Yamaha PW-S2 – Gloss Grey
Are you looking for a sporty eMTB with on and off-road credentials? With the ALLTRACK 7 you get an eHardtail with well balanced equipment that will not let you down even on rides in tough terrain. With the reliable Shimano Deore 12-speed rear derailleur, powerful 4-piston disc brakes and the sensitive suspension fork from RockShox with 130 mm travel, you can fully concentrate on the trail. The powerful Yamaha PW-X3 motor with 720 Wh battery gives you enough reserve to explore new terrain. The ALLTRACK 7 is available in frame sizes S and M with 27.5" wheels. The sizes M to XL roll on 29" tyres.
Yamaha PW-X3
Yamaha takes its Pure Ride concept to the next level with the all-new PW-X3. Lighter, smaller and with higher torque output than ever before, this next generation drive unit delivers instant response for outstanding off-road performance.
Key Features:

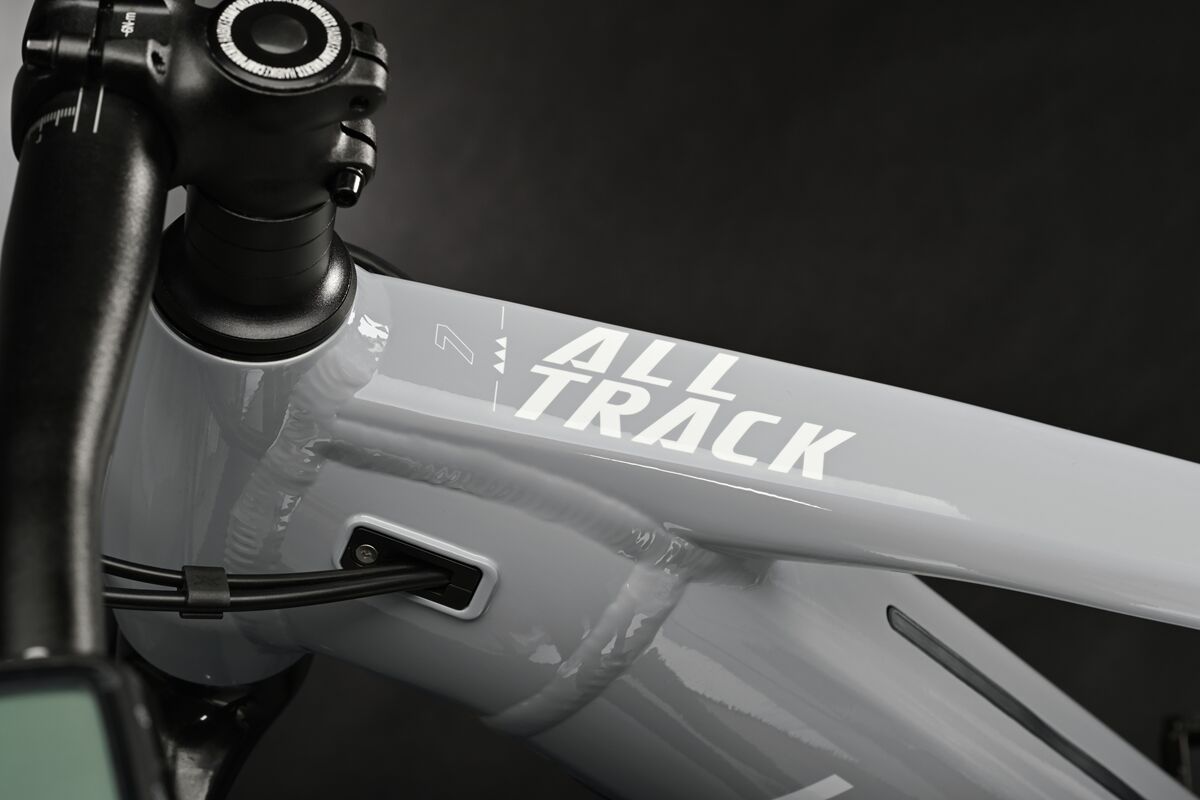

- Frame: Haibike AllTrack, Yamaha PW-X3 Int. Aluminium – 40cm,45cm
- Motor: Yamaha PW-X3, 85Nm
- Battery: Yamaha InTube 720Wh
- Display: Yamaha Side Switch, 1.7" LCD, 7 Function
- Suspension Fork: RockShox, 35 Silver TK, Air, travel= 130 mm, Aluminium steerer tube 1 1/8" – 1 1/2" tapered, 15 x 110mm thru-axle Boost
- Handlebars: Haibike Components, TheBar ++, 780mm
- Stem: Alu, A-head

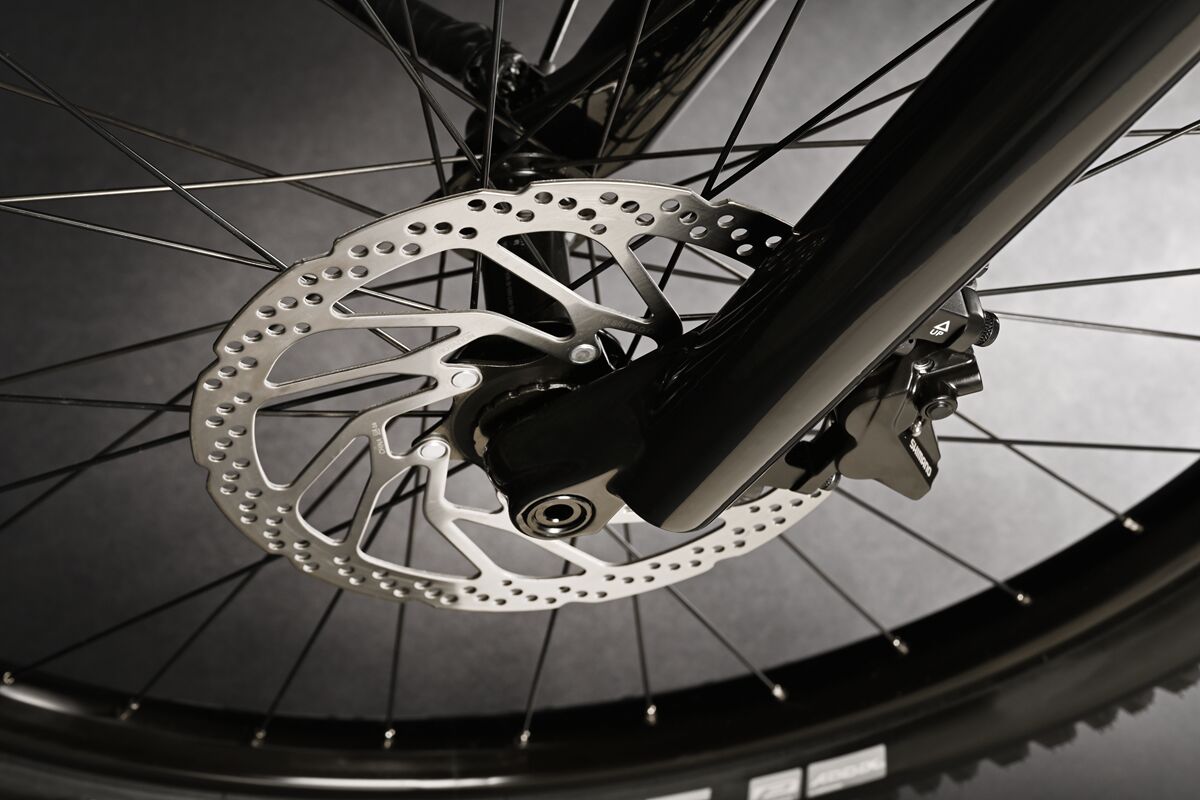

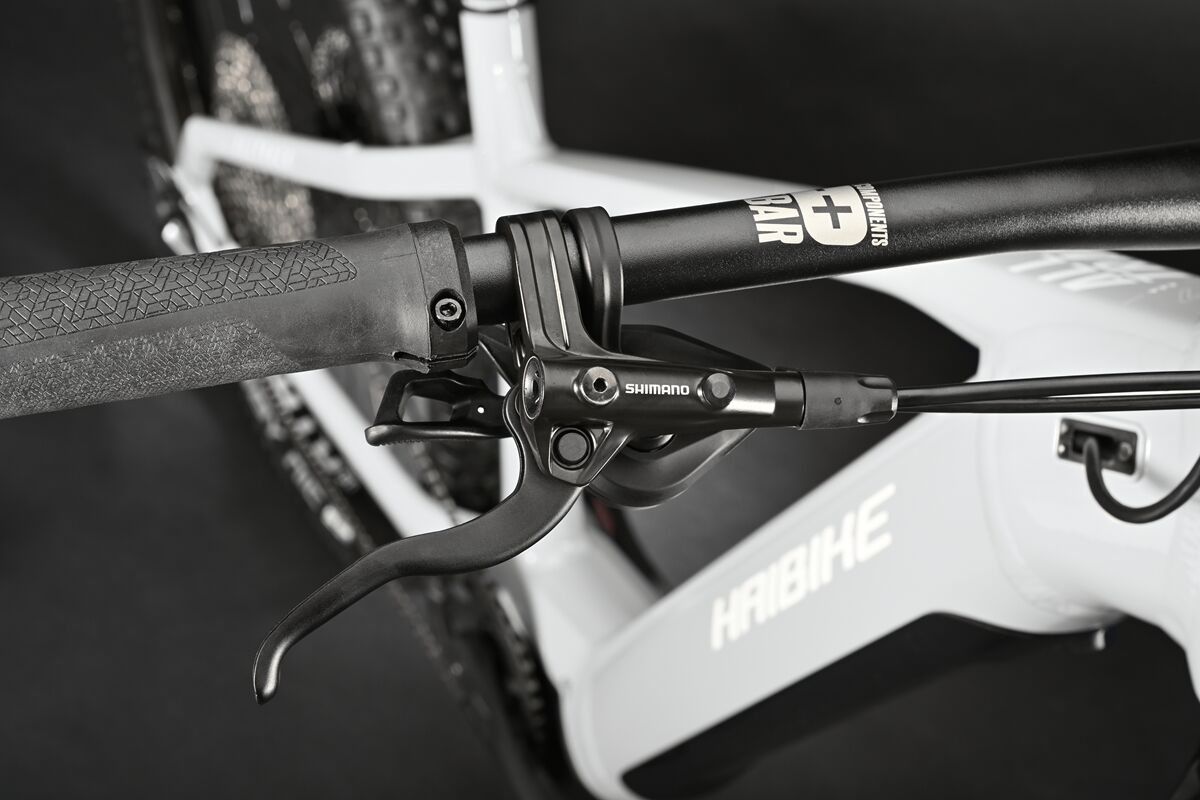

- Brakes: Shimano, MT420, 4-piston disc brake

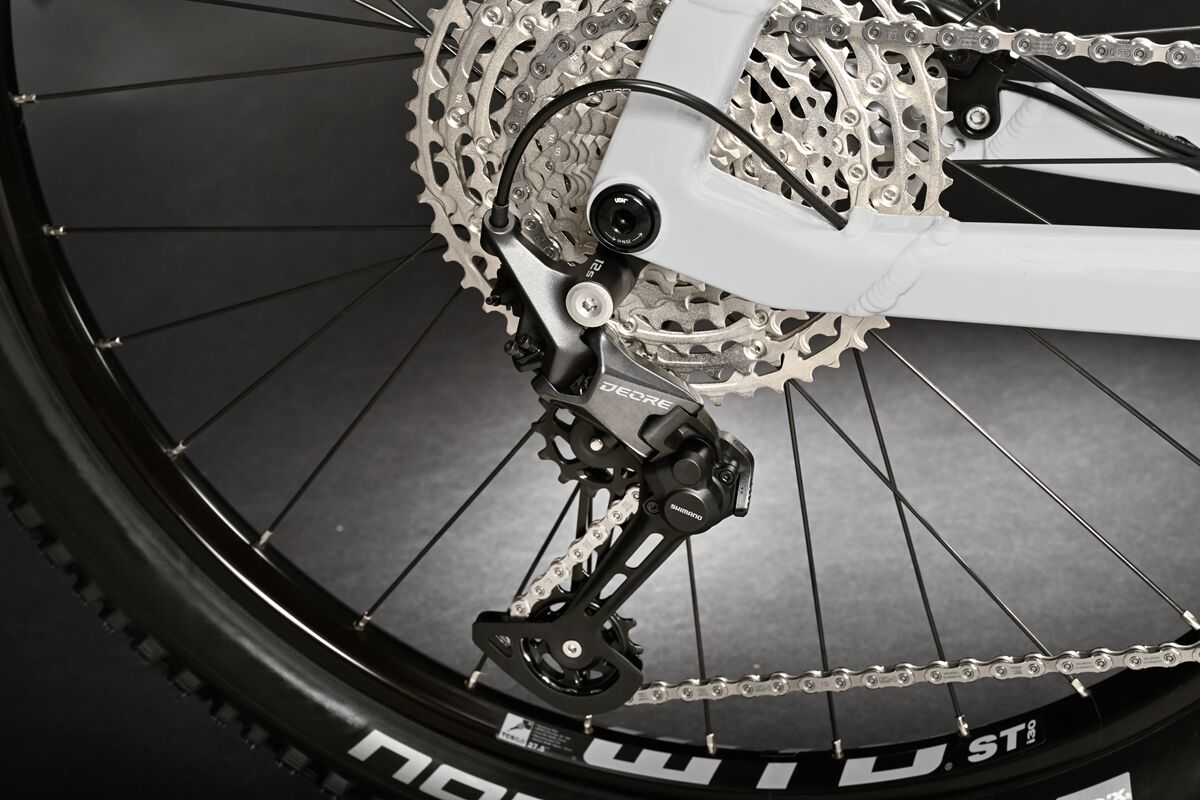

- Gearing: Sram, SX Eagle 12 Speed
- Shifters: Sram, SX Eagle
- Wheels: 27.5" / 29" WTB, ST i30 TCS, Double Wall Rim x Aluminium Thru Axle Hubs

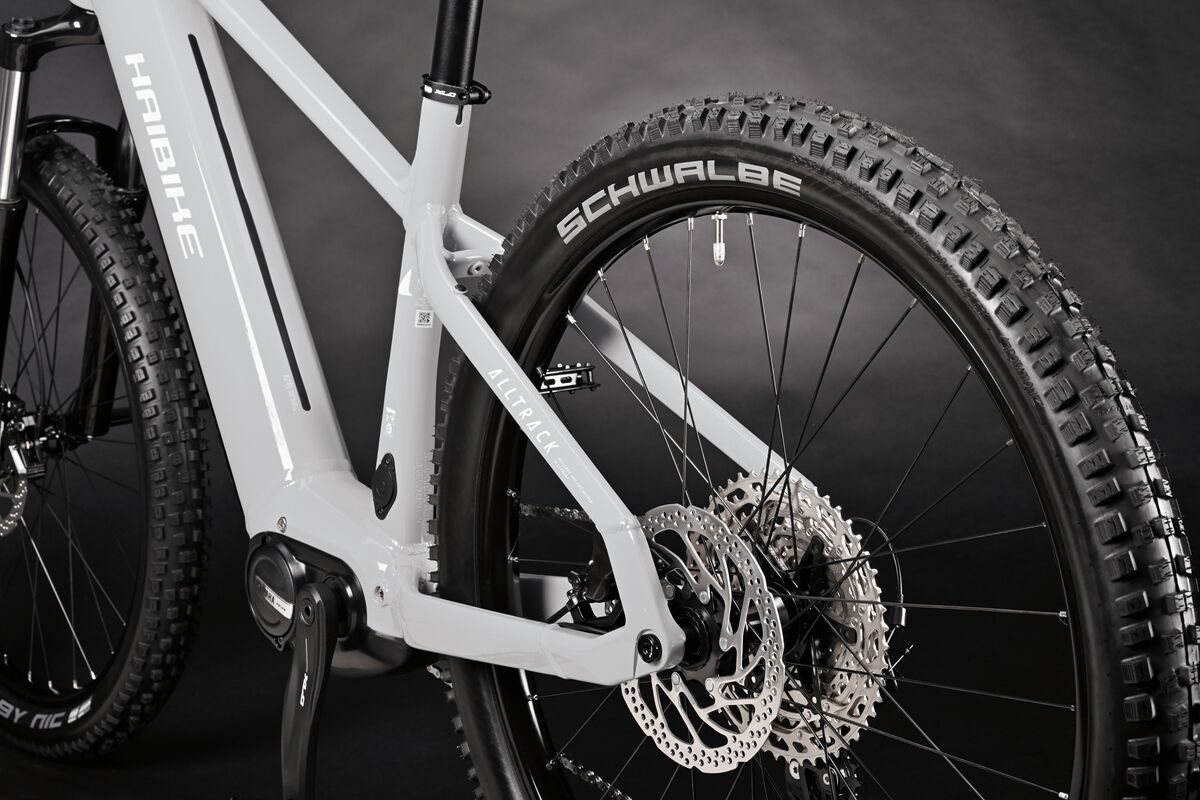

- Front Tyre: Schwalbe, Nobby Nic Performance, 65-584, 27.5"/29" x 2.6"
- Rear Tyre: Schwalbe, Nobby Nic Performance, 65-584, 27.5"/29" x 2.6"
- Battery Range: Yamaha InTube 720Wh – 30-130 Power Assisted Miles*
*As provided by Haibike UK. This will vary depending on weight of user, terrain and mode of pedal assistance used
Haibike AllTrack 7 Hardtail Electric Mountain Bike 2023, Yamaha PW-S2 – Gloss Grey
- Frame: Haibike AllTrack, Yamaha PW-X3 Int. Aluminium – 40cm,45cm
- Motor: Yamaha PW-X3, 85Nm
- Battery: Yamaha InTube 720Wh
- Display: Yamaha Side Switch, 1.7" LCD, 7 Function
- Suspension Fork: RockShox, 35 Silver TK, Air, travel= 130 mm, Aluminium steerer tube 1 1/8" – 1 1/2" tapered, 15 x 110mm thru-axle Boost
- Handlebars: Haibike Components, TheBar ++, 780mm
- Stem: Alu, A-head
- Brakes: Shimano MT410, Hydraulic disc, 180mm
- Gearing: Sram, SX Eagle 12 Speed
- Shifters: Sram, SX Eagle
- Cassette: Sram, PG1210 Eagle, 11-50T
- Chainring: Steel, 38T
- Crank: Miranda Kies, Alloy
- Saddle: Selle Royal, Vivo Unitech
- Seatpost: Aluminium, Patent, 34.9mm
- Wheels: 27.5" / 29" Rodi, Tryp 30 Rim x Shimano MT400-B Hubs
- Front Tyre: Schwalbe, Nobby Nic Performance, 65-584, 27.5"/29" x 2.6"
- Rear Tyre: Schwalbe, Nobby Nic Performance, 65-584, 27.5"/29" x 2.6"
- Battery Range: Yamaha InTube 720Wh – 30-130 Power Assisted Miles*
*As provided by Haibike UK. This will vary depending on weight of user, terrain and mode of pedal assistance used
| Battery Size |
20 Ah / 720 Wh
|
| Wheel Size |
27.5 in/29 in
|
| Range (miles) |
120+, 20-40, 40-60, 60-80, 80-100
|
| Top Speed (mph) |
15.5
|
| Frame Style |
Crossbar
|
| Colour |
Grey
|
| Frame Size |
16.75 in / 40 cm, 17.75 in / 45 cm, 19.5 in / 50 cm, 21.5 in / 55 cm
|
| Brake Type |
Disc
|
| Suspension |
Front
|
| Material |
Alloy
|
| Gears |
11
|
| Drive Type |
Crank
|
| Battery Make |
Yamaha
|
| Motor Make |
Yamaha
|
| Brand |
Haibike
|
Yamaha PW-X3
High Output
Through a complete drive unit redesign, PW-X3 delivers 85Nm of motor torque throughout a wide cadence range. The PW-X3 design is committed to motor performance, keeping the high torque output figures despite the drastic size and weight reduction.
Natural, Agile Response
Right from the beginning, every PW-X series drive unit has featured the 128mm ISIS interface bottom bracket axle that gives the best Q-factor in any e-bike system. Yamaha Motor’s new PW-X3 continues with this idealized layout, making it especially attractive to expert riders. Exclusive mechanical components and control program realize an unparalleled level of maneuverability. The reduced backlash of the ratchet mechanism and lightweight designs for major moving parts, such as the axle shaft and reduction gear, contributes to a quicker, more direct response to pedaling. Fundamental design choices create the Yamaha distinctive feature of providing instant support with full torque immediately after pressure is applied to the pedal, not after certain crank turn.
Compact & Lightweight
The new PW-X3 is approximately 20% smaller and 10% lighter than the PW-X2 model. Its ultra-compact dimensions offer e-bike manufacturers greater freedom to develop nice-looking bikes aiming for ideal frame geometry and suspension kinematics, as well as increased ground clearance.
Automatic Support Mode for E-MTB Ride
The PW-X3's exclusively tuned Automatic Support Mode delivers optimal assist in settings ranging from trail riding to racing by choosing from the bike's three riding modes -Eco, Standard, and High- as conditions demand. The system reduces assist on level roads but boosts power on steep inclines to offer fine-grained assist feel that makes it seem like it's reading the rider's mind.
