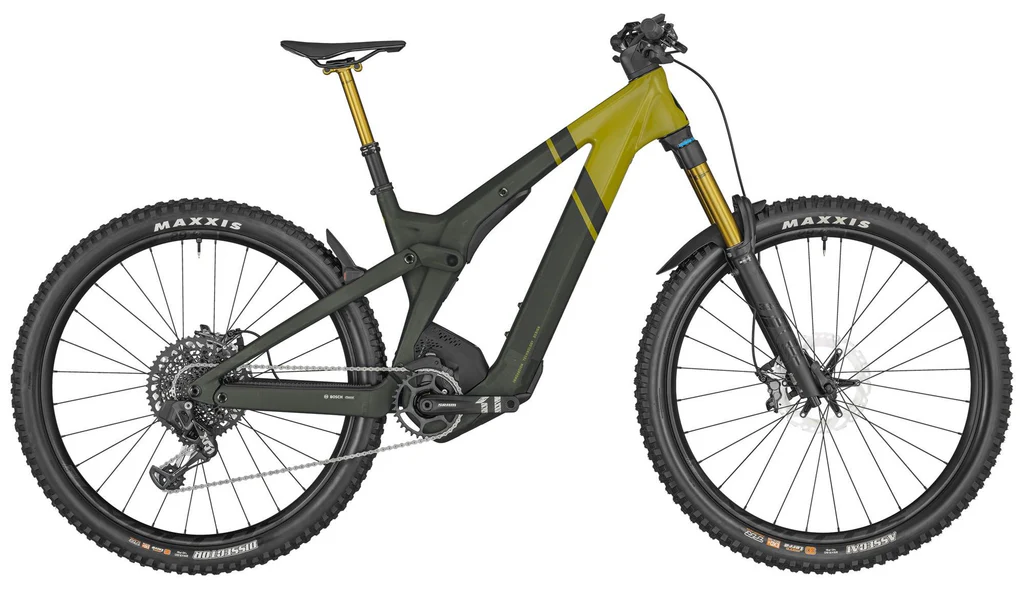

SCOTT Patron ST ERide 900 Tuned Electric Mountain Bike, 750Wh – Black/Yellow
ST for Super Trail, the Scott Patron ST eRIDE 900 Tuned is based on the classic Patron platform but optimized for the ones who like spending more time in the air and in steeper terrain. No Twinloc on the fork, more travel with 170 front and beefier tires. Master the trails!
Key Features:
- Frame: Carbon Main Frame & SST / Alloy CST-Link. Virtual 4 link kinematic VLK. 29×2.6 / Boost 148x12mm UDH. 160mm travel / Bosch SmartSystem / Integr. removable Battery. 1.8″.
- Headtube: Central Kickstand Mount. Integr. Cable. Travel. Front: 170mm / Rear: 160mm
- Fork: FOX 38 FIT Factory Grip 2 Air / Kashima. HSC – LSC – HSR- LSR adjustable / QR Axle 15x110mm. 44mm offset / tapered steerer. 170mm travel
- Rear Shock: FOX NUDE T eRIDE EVOL Kashima / Trunnion. SCOTT custom w. travel / geo adj.
- 3 modes: Lockout-Traction Control-Descend. custom large air volume / DPS / Reb. Adj. Travel 160-115-Lockout / 205X60mm
- Remote System: TracLoc Technology. Rear Suspension & Dropper Remote. 3 Rear Suspension modes
- Drive Unit: Bosch Performance CX-R. EU: 25kmh / INT: 20mph
- Battery: PowerTube 750Wh
- Display: Bosch LED Remote & Kiox 300
- Rear Derailleur: SRAM GX Eagle AXS Transmission 12 Speed. Wireless Electronic Shift System
- Shifters: SRAM GX Eagle AXS Rocker Controller
- Crankset: SRAM X1 1000 / 165mm
- Chainguide: e*thirteen / e*spec Slider
- Chainring: SRAM Eagle Transmission 34T chainring / Steel
- Chain: SRAM CN GX Eagle Transmission
- Cassette: SRAM GX Eagle XS 1275 Transmission 10-52T
- Brakes: Shimano XT / BR-M8120 4 Piston
- Rotor: Front: RT-MT800 CL 203mm / Rear: RT-EM800 CL 203mm
- Handlebar: Syncros Hixon iC SL / 15mm Rise / integrated cockpit. S&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension. 7° backsweep / 6° upsweep / Syncros Endurance lock-on grips
- Seatpost: FOX Transfer Factory Dropper Post Kashima. 31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm
- Seat: Syncros Tofino 1.5 Regular. Titanium rails
- Headset: Acros / 1.8″. ZS66 OD74 / integr. Cable
- Wheelset: Syncros Revelstoke-E 1.5 CL. F: 15x110mm. R: 12x148mm Boost. 30mm Tubeless ready rim 28H. Syncros Axle w/Removable Lever with Tool
- Front Tire: Maxxis Assegai 29×2.6″. 120TPI Foldable Bead. EXO+ / TR Tubeless ready. 3C Maxx Terra
- Rear Tire: Maxxis Dissector 29×2.6″. 120TPI Foldable Bead. EXO+ / TR Tubeless ready. 3C Maxx Terra
- Lights: Syncros integrated rear fender light. Front Light Cable pre-installed
- Extras: Syncros Fork Fender. SRAM AXS Extension Cord
- Approx weight in KG: 23.6 (with tubes)
- Max. System Weight: 128 kg. The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
