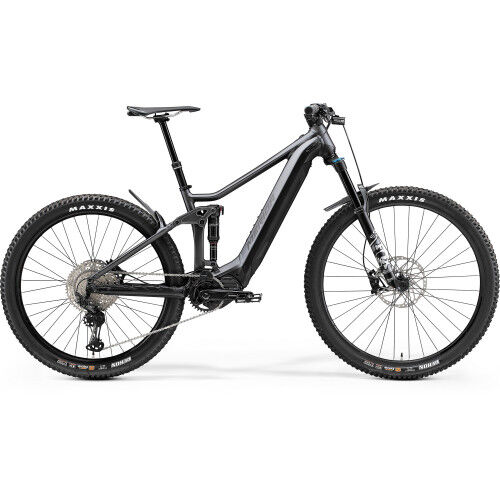

Merida eOne-Forty 700 eMTB 29″ Wheel, 12 Speed – Grey/Black

Be the First to Write a Review

£3,802.00£5,600.00

The eOne-Sixty is the headline grabber of the Merida eBike range; for 3 generations it’s been winning tests, gathering accolades and generally hogging the limelight! The eOne-Forty shares exactly the same frame and design features but has different ride characteristics.

Compare

Add ons & Accessories

Below is a list of our most popular and best selling products bought by our customers.

  • XLC Light Set Front Rear Cupid Oberon

    £28.99
    Add to basket Compare
  • Raleigh Mission Pioneer Navy

    £24.99
    Select options Compare
  • Cargo Waterproof Pannier Bag

    £49.99
    Add to basket Compare
  • Beto Steel Track Pump

    £21.99
    Add to basket Compare

Merida eOne-Forty 700 eMTB 29" Wheel, 12 Speed – Grey/Black

The eOne-Sixty is the headline grabber of the Merida eBike range; for 3 generations it's been winning tests, gathering accolades and generally hogging the limelight! The eOne-Forty shares exactly the same frame and design features but has different ride characteristics. The shock stroke on the eOne-Forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach, delivering a slightly steeper head angle. In combination these small changes make the eOne-Forty more agile and playful; a highly competent climber that's perfect for all day riding. The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, a 29er front wheel with a 2.5" tyre is combined with a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction. All eOne-Forty models use the powerful Shimano EP8 85NM motor and bigger 630Wh battery (with the exception of frame size – S which uses 504Wh). Shimano's e-Tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising.

Key Features:

  • Frame – Lite III – Hydroformed 6061 Double butted aluminium with intergrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8".
  • Motor – Shimano Steps EP8; 85Nm
  • Battery – Shimano E8036; 630Wh internal battery
  • Battery Capacity – 630 Wh
  • Ebike Display – Shimano SC-E7000
  • Charger – Shimano EC-E8004; 4A Charging current
  • Power Button – Shimano satellite system on/off; EW-SW300
  • Mode Switch – Shimano SW-E7000-L
  • Shock – RockShox Deluxe Select+; platform
  • Fork – FOX Rhythm 34 Float eMTB+; Air; 140mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.5"
  • Gears – 12
  • Shifters – Shimano Deore SL-M6100 12 speed with Shimano SL -MT500-IL lever
  • Rear Derailleur – Shimano XT RDM8100 Shadow+ 12
  • Bottom Bracket – Part of Shimano Steps motor
  • Chain – KMC e12T EPT
  • Chainset – Shimano CRE80-12-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank
  • Cassette – Shimano M6100; 10-51 teeth; 12 speed
  • Brake Lever – Shimano SLX
  • Front Brake – Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RT64; 203 mm rotor
  • Rear Brake – Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RTEM600; 203 mm rotor
  • Grip – Merida Expert EC
  • Handlebar – Merida Expert eTR; 780mm wide; 20mm rise
  • Stem – Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise – Stem length: 50mm (all sizes). GoPro & Supernova mount point.
  • Headset – Merida-8152
  • Pedal – VP Components, VPE-527
  • Saddle – Merida Expert CC; V-mount including Merida multitool
  • Seatpost – Merida Expert TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M), 150mm (L/XL), 170mm (XXL)
  • Wheel Size – 29" / 27.5"
  • Rims – Merida Expert TR; 29mm inner rim width; Aluminium; Tubeless ready (tubeless tape and valves not included)
  • Spokes – Black stainless
  • Front Hub – Shimano SLX; 110x15mm; 32 spokes; Center lock
  • Rear Hub – Shimano SLX; 148x12mm, 36 spokes; Center lock; including removable lever with 4/6mm Allen key
  • Front Tyre – Maxxis Rekon; 29" x 2.4"; kevlar bead; 3C EXO MaxxTerra
  • Rear Tyre – Maxxis Rekon; 27.5" x 2.6"; kevlar bead; TR 3C EXO MaxxTerra
  • Front Tyre – Lezyne eBike Power STVZO E115 front light
  • Rear Light – CG-214RG USB rear light
  • Other – Complete with: mini fenders and front / rear lights. Shimano Satellite charging port; EW-CP100

Merida eOne-Forty 700 eMTB 29" Wheel, 12 Speed – Grey/Black

Key Features:

  • Frame – Lite III – Hydroformed 6061 Double butted aluminium with intergrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8".
  • Motor – Shimano Steps EP8; 85Nm
  • Battery – Shimano E8036; 630Wh internal battery
  • Battery Capacity – 630 Wh
  • Ebike Display – Shimano SC-E7000
  • Charger – Shimano EC-E8004; 4A Charging current
  • Power Button – Shimano satellite system on/off; EW-SW300
  • Mode Switch – Shimano SW-E7000-L
  • Shock – RockShox Deluxe Select+; platform
  • Fork – FOX Rhythm 34 Float eMTB+; Air; 140mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.5"
  • Gears – 12
  • Shifters – Shimano Deore SL-M6100 12 speed with Shimano SL -MT500-IL lever
  • Rear Derailleur – Shimano XT RDM8100 Shadow+ 12
  • Bottom Bracket – Part of Shimano Steps motor
  • Chain – KMC e12T EPT
  • Chainset – Shimano CRE80-12-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank
  • Cassette – Shimano M6100; 10-51 teeth; 12 speed
  • Brake Lever – Shimano SLX
  • Front Brake – Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RT64; 203 mm rotor
  • Rear Brake – Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RTEM600; 203 mm rotor
  • Grip – Merida Expert EC
  • Handlebar – Merida Expert eTR; 780mm wide; 20mm rise
  • Stem – Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise – Stem length: 50mm (all sizes). GoPro & Supernova mount point.
  • Headset – Merida-8152
  • Pedal – VP Components, VPE-527
  • Saddle – Merida Expert CC; V-mount including Merida multitool
  • Seatpost – Merida Expert TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M), 150mm (L/XL), 170mm (XXL)
  • Wheel Size – 29" / 27.5"
  • Rims – Merida Expert TR; 29mm inner rim width; Aluminium; Tubeless ready (tubeless tape and valves not included)
  • Spokes – Black stainless
  • Front Hub – Shimano SLX; 110x15mm; 32 spokes; Center lock
  • Rear Hub – Shimano SLX; 148x12mm, 36 spokes; Center lock; including removable lever with 4/6mm Allen key
  • Front Tyre – Maxxis Rekon; 29" x 2.4"; kevlar bead; 3C EXO MaxxTerra
  • Rear Tyre – Maxxis Rekon; 27.5" x 2.6"; kevlar bead; TR 3C EXO MaxxTerra
  • Front Tyre – Lezyne eBike Power STVZO E115 front light
  • Rear Light – CG-214RG USB rear light
  • Other – Complete with: mini fenders and front / rear lights. Shimano Satellite charging port; EW-CP100
Battery Size

17.5 Ah / 630 Wh

Top Speed (mph)

Frame Style

Colour

Black, Grey

Frame Size

16 in / 41 cm, 17 in / 43 cm, 17.75 in / 45 cm, 18.5 in / 47 cm

Brake Type

Disc

Type

Suspension

Full

Material

Aluminium

Gears

12

Drive Type

Crank

Brand

Merida

Battery Specifications:

  • Battery: Shimano E8036; 630Wh internal battery

Extra Information:

  • This Electric Bike will be SUPPLIED ASSEMBLED complete with charger and everything you see included.
  • Upon arrival, simple attachment of the pedals and the straightening of the handlebar will be required.
