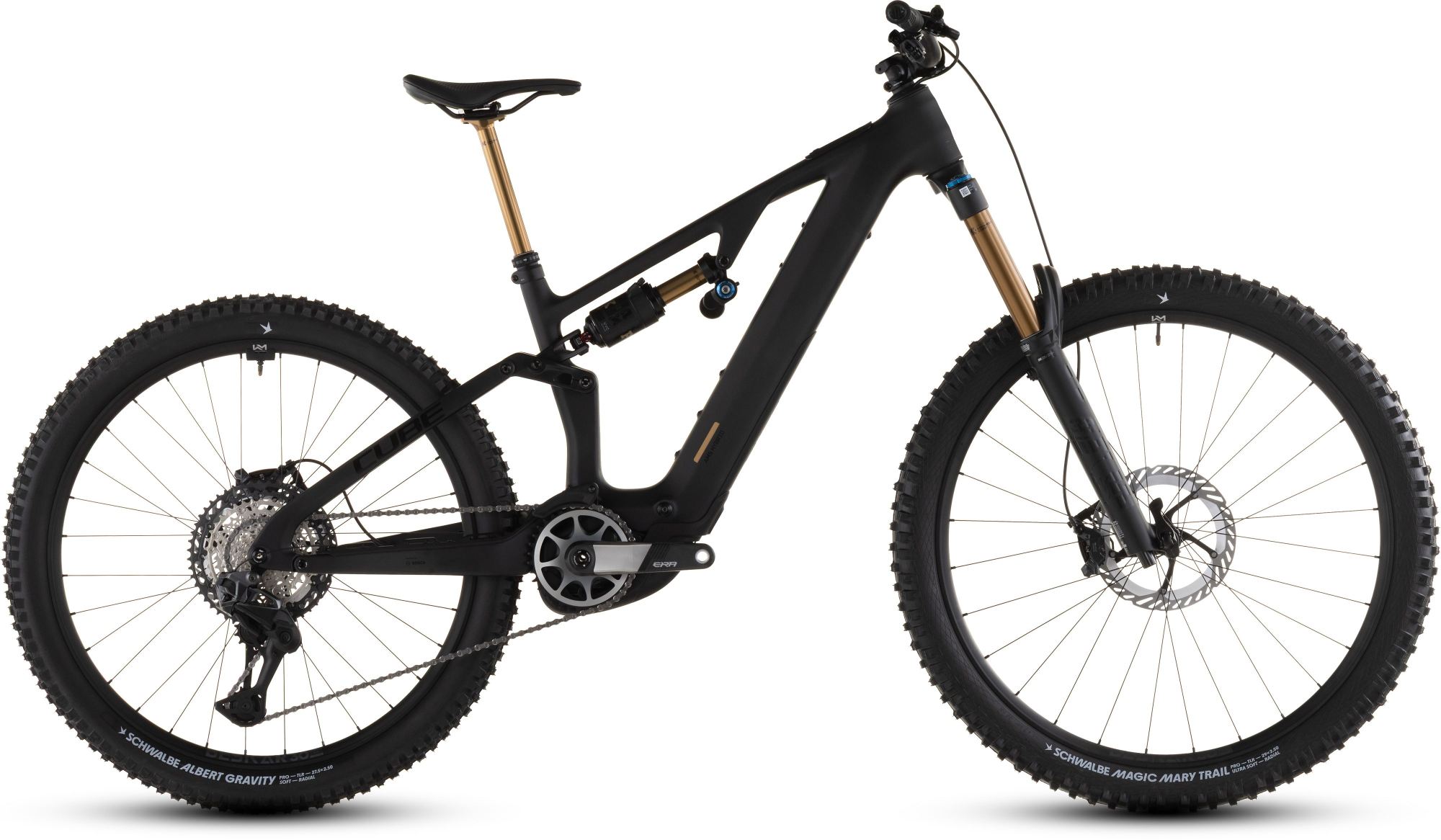

Cube 2026 Ams Hybrid One77 C:62 At 600X – Carbon/Gold

A bike fit for team riders needs components that’ll last the course – literally. That’s why, with the AMS Hybrid 177 C:62 AT 600X, they started with Fox’s smooth and versatile Fox 38 Float Factory fork and matching Float X2 Factory shock.

£7,499.00

Read Full Description | See Bike Specification
Compare

Add ons & Accessories

Below is a list of our most popular and best selling products bought by our customers.

  • Pannier Bag

    Weekend Pannier Rack Bag - Khaki

    Sale! Price range: £32.99 through £73.98
    Select options This product has multiple variants. The options may be chosen on the product page
  • Cargo Waterproof Pannier Luggage Bag, 20L - Black

    Cargo Waterproof Pannier Bag

    £49.99
    Add to basket
  • Raleigh Mission Pioneer Adults Helmet Navy

    Raleigh Mission Pioneer Navy

    Price range: £17.99 through £24.99
    Select options This product has multiple variants. The options may be chosen on the product page
  • Beto

    Beto 2 In 1 Mini Floor Pump

    Sale! Original price was: £17.99.Current price is: £14.99.
    Add to basket

Cube 2026 Ams Hybrid One77 C:62 At 600X – Carbon/Gold

A bike fit for team riders needs components that’ll last the course – literally. That’s why, with the AMS Hybrid 177 C:62 AT 600X, they started with Fox’s smooth and versatile Fox 38 Float Factory fork and matching Float X2 Factory shock. Shimano’s electronic XT Di2 1×12 gears – with a RaceFace Era carbon crank – transfer the combined power of your legs and the Bosch CX-R drive to the trail. There’s a Kiox 400C controller to put you in charge of the Bosch drive and 600Wh battery, of course. A dropper post, naturally. And powerful Shimano XT hydraulic disc brakes working with Schwalbe Magic Mary and Albert 2.5in tyres on Newmen Beskar 30 wheels to keep you on track and in control. The complete package, in other words, for big Alpine days out…

Frame description
They set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from Cube’s C:62 carbon and featuring Bosch’s BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-in 600Wh PowerTube battery. They’ve tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame’s clean aesthetic and, of course, there’s a UDH gear hanger and Direct Mount chain guard. Bring it on!

Specification

Battery

Bosch PowerTube 600

Battery Make

Bosch

Battery Size

16.7 Ah / 600 Wh

Body Size

1.78m – 1.89m, 1.68m – 1.80m, 1.57m – 1.70m, 1.87m – 2.00m

Brake Type

Hydraulic Disc

Brakes

Shimano XT BR-M8220, Hydr. Disc Brake (203/203)

Brand

Cube

Cassette

Shimano XT CS-M8200, 10-51T

Chain

Shimano XT CN-M8100

Chain guide

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Charger

Bosch 4A

Colour

Carbon/Gold

Crankset

Race Face ERA E-MTB, 36T

Crankset chainring sizes

36T

Display

Bosch Kiox 400C

Drive Type

Crank

Fork

Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm

Frame

C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link. Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing

Frame Size

L, M, S, XL

Frame Style

Frame Type

Crossbar

Front tire

Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5

Gears

12

Grips

ACID Disrupt, Soft Compound

Gross Weight (kg)

26.42

Handlebar

Race Face ERA 35

Headset

ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment

Material

Carbon

Max. rider weight (kg)

110

Max. system weight (kg)

135

Motor

Bosch Performance Line

Motor

Bosch Drive Unit Performance Line CX-R 100Nm (BDU38)

Motor Make

Net Weight (kg)

21.4

Pedals

ACID PP MTB

Rear derailleur

Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System

Rear tire

Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5

Remote

Bosch Mini Remote

Saddle

ACID Venec EMTB Trail 140

Seat Post Dropper

YES

Seatpost

Fox Transfer Factory 31.6mm, Kashima Coated

Shifters

Shimano XT Di2 SW-M8250-IR, Direct Attach

Shock

Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever

Shock hardware

Front: 30x8mm, Rear: w/o DU-Bushing 15 mm

Stem

Race Face Turbine R 35

Top Speed (mph)

Torque

Weight 26.42 kg
Wheel Size

29 in

Wheelset

Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready

Year

Extra Information:

  • This Electric Bike will be SUPPLIED ASSEMBLED complete with charger and everything you see included.
  • Upon arrival, simple attachment of the pedals and the straightening of the handlebar will be required.
