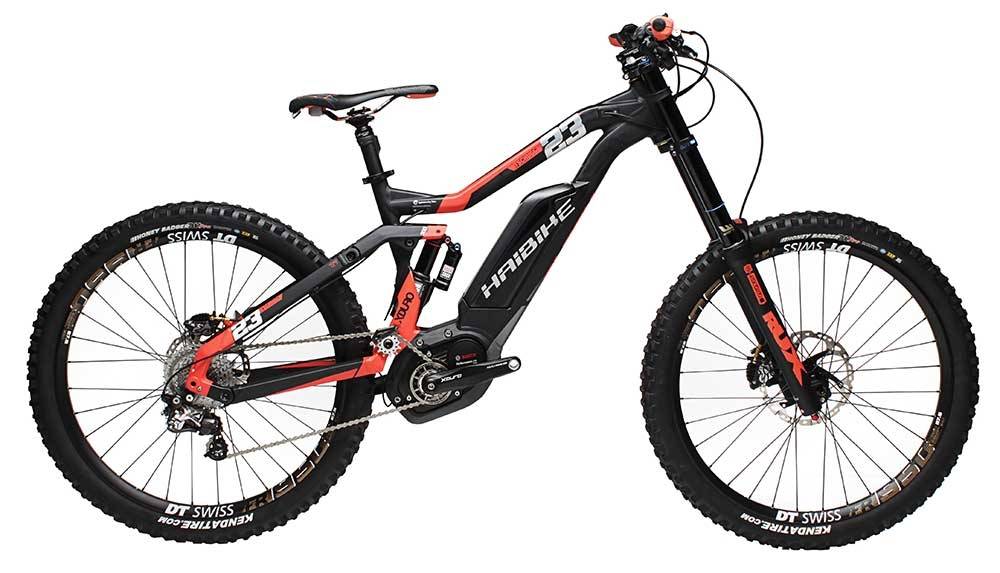

Haibike XDURO DWNHLL TSCHUGG 23 Electric Bike
Haibike XDURO DWNHLL TSCHUGG 23 Electric Bike - Image 2

Haibike XDURO DWNHLL TSCHUGG 23 Electric Bike

Now his signature model is available in very limited numbers, 100 to be exact!

£4,499.99

Read Full Description | See Bike Specification
Compare
Compare | 30 Day Returns | Be the First to Write a Review

Add ons & Accessories

Below is a list of our most popular and best selling products bought by our customers.

  • Raleigh Mission Pioneer Adults Helmet Navy

    Raleigh Mission Pioneer Navy

    Price range: £17.99 through £24.99     Select options This product has multiple variants. The options may be chosen on the product page
  • Beto

    Beto 2 In 1 Mini Floor Pump

    Sale! Original price was: £17.99.Current price is: £14.99.     Add to basket
  • Cargo Waterproof Pannier Luggage Bag, 20L - Black

    Cargo Waterproof Pannier Bag

    £49.99     Add to basket
  • Pannier Bag

    Weekend Pannier Rack Bag - Khaki

    Sale! Price range: £32.99 through £73.98     Select options This product has multiple variants. The options may be chosen on the product page

Haibike XDURO TSCHUGG 23 Electric Bike

Based on the DWNHLL PRO, the Haibike XDURO DWNHLL TSCHUGG 23 Electric Bike. This signiture custom piece hosts the spec list of choice of its namesake Guido Tschugg, one of Germany's most successful mountain biker. Along with Haibike, they have created a true eMTB wanting just about nothing. Just browse the spec sheet below.

Haibike XDURO DWNHLL TSCHUGG 23

A 63.5 degree head angle, low BB height and revolutionary short chanstay length don't leave any room for doubt about what this machine was developed for. The fastest down and the fastest back up. Turn EVERY trail into a DH run.

Haibike XDURO DWNHLL TSCHUGG 23

Key Features:

  • Motor: Bosch Performance CX, 250W, 75Nm, 25km/h (15mph)
  • Frame: aluminium 6061, hydroformed, Gravity Casting Interface, Tapered head tube, thru-axle M12 (1.75) x 157mm, disc brake Post Mount, Travel: 200mm
  • Front Forks: SR Suntour RUX, air, Travel: 200mm, aluminium steerer tube 1 1/8" – 1 1/2" tapered, thru-axle
  • Rear Fork: RockShox Vivid Air R2C, air, 70mm
  • Gears: Shimano Saint M820, 10 speed
  • Brakes: Shimano Saint M820, 203mm, hydraulic disc brakes
  • Wheels: DT Swiss FR1950
  • Tyres: Kenda Honey Badger DH Pro DTC, 55-584, Puncture protection
  • Battery: Bosch PowerPack, 500 Wh, with BMS Management (14Ah) – 30-140 Miles*

* This will vary depending on weight of user, terrain and mode of pedal assistance used.

Specification:

  • FRAME: aluminium 6061, hydroformed, Gravity Casting Interface, Tapered head tube, thru-axle M12 (1.75) x 157mm, disc brake Post Mount, Travel: 200mm
  • DRIVE UNIT: Bosch Performance CX, 250W, 75Nm, 25km/h
  • DISPLAY: Bosch Intuvia
  • BATTERY: Bosch PowerPack, 500 Wh
  • CHARGER: Bosch quick charger 4A
  • FORK: SR Suntour RUX, air, Travel: 200mm, aluminium steerer tube 1 1/8" – 1 1/2" tapered, thru-axle
  • DAMPER: RockShox Vivid Air R2C, air, 70mm
  • SHIFTING SYSTEM: Shimano Saint M820, 10 speed
  • GEAR LEVER: Shimano Saint M820, rapidfire
  • REAR SPROCKET: Shimano Deore XT M771, 11-36 teeth
  • CHAIN: Shimano HG95
  • CHAIN RING: Haibike CNC sprocket, 16, stainless steel
  • BRAKE LEVER: Shimano Saint M820, aluminium
  • FRONT BRAKE: Shimano Saint M820, 203mm, hydraulic disc brakes
  • REAR BRAKE: Shimano Saint M820, 203mm, hydraulic disc brakes
  • TYRES: Kenda Honey Badger DH Pro DTC, 55-584, Puncture protection
  • WHEEL SET: DT Swiss FR1950
  • HANDLEBAR: Thomson Downhill, aluminium oversize 780mm
  • GRIPS: SQ-lab 711 MX
  • STEM: Thomson Elite X4, A-head
  • HEAD SET: FSA No.57 Tapered, Cartridge
  • SADDLE: SQ-lab Guido Tschugg
  • SEAT POST: Kind Shock LEV-DX, telescope, 31.6mm
  • PEDALS: XDURO Freeride pedal
  • WEIGHT: 24.6kg
  • WHEEL SIZE: 27.5"
Battery Size

14 Ah / 504 Wh
Brand

Haibike
Colour

Black, Red
Drive Type

Crank
Frame Size

17.75 in / 45 cm
Gears

10
Material

Alloy
Range (miles)

Suspension

Full
Type

Weight

24.6 kg
Wheel Size

27.5 in
Year

,

Battery Specification:

  • Bosch PowerPack 500wh

Extra Information:

  • This Electric Bike will be SUPPLIED ASSEMBLED complete with charger and everything you see included.
  • Upon arrival, simple attachment of the pedals and the straightening of the handlebar will be required.
