Cyclotricity Pannier Rack Conversion eKit 36V

Cyclotricity Pannier Rack Conversion eKit 36V

1. Select your desired battery & wheel size variant

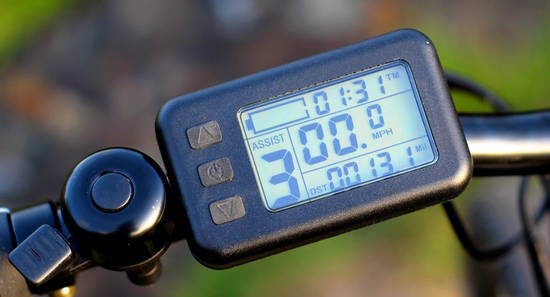

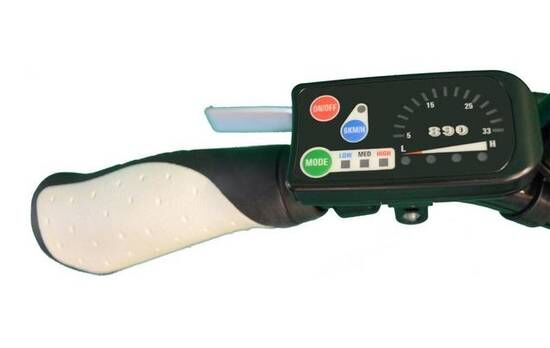

2. Select your display choice from the 'Add Ons & Accessories' drop down (located under the price)
3. Your complete eKit wil be dispatched
4. Install in as little as an hour
5. Enjoy your newly converted E-Bike!

Cyclotricity conversion kit Includes a 250W front motor, controller, optional LED / LCD display and a 36V Pannier Rack Battery.This is a complete kit which includes all that is needed to convert your bike to a pedal assist machine. (including the rear rack for the battery). The motor is available in a 20", 24", 26", 700c or 29er Wheel.

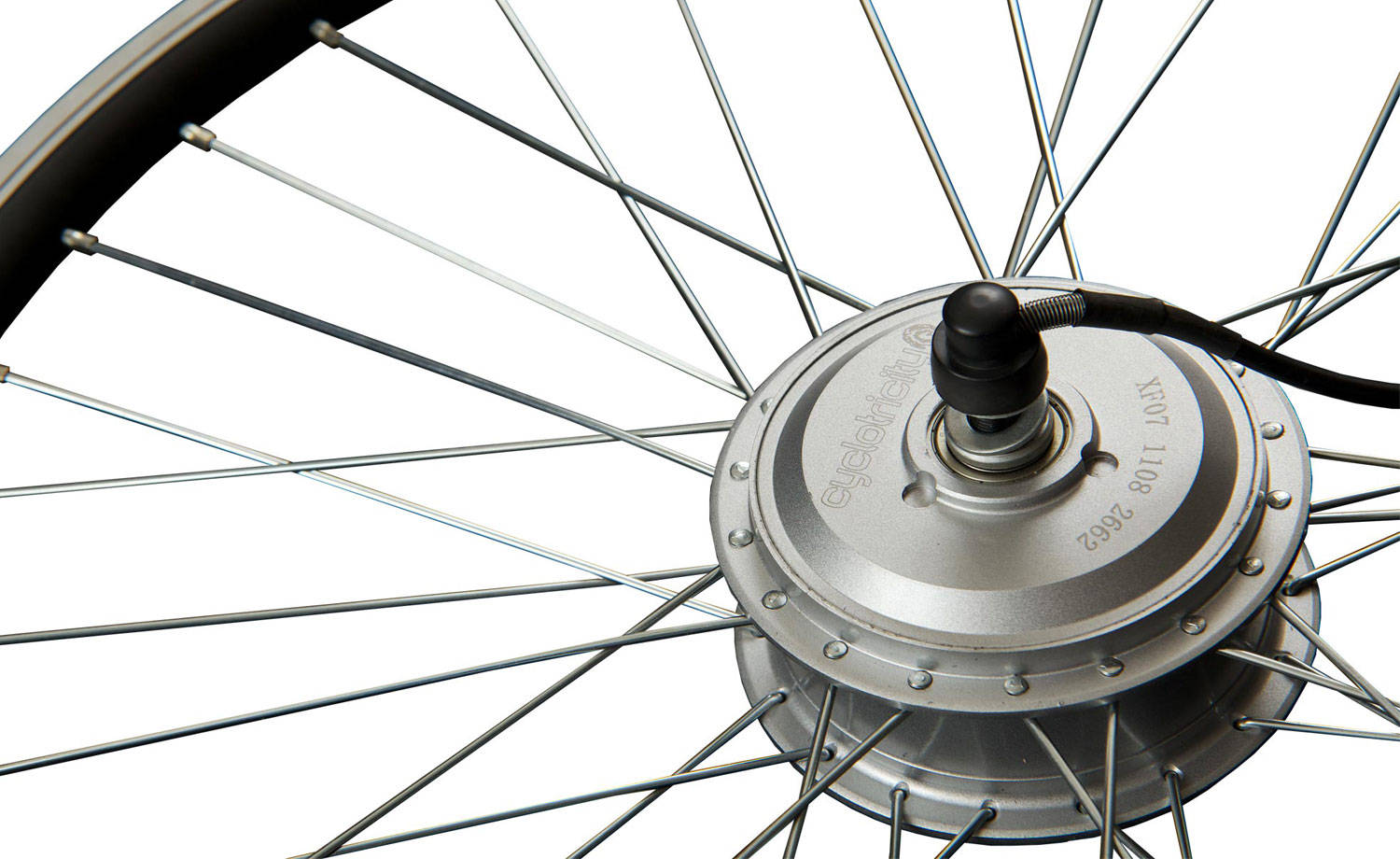

The Cyclotricity Pannier Rack front drive kit is a geared hub motor which means it is a lot smaller and lighter than either of its rear drive counterparts, in fact, it is barely noticeable as a motor once installed. In other words, if a lightweight and well disguised kit is of importance, this is a good option to consider.

Things to think about before purchasing this front drive conversion kit:

• The front forks on your bike need to have 100mm clearance between the drop-outs (which is the case with the vast majority of bikes).
• The fork drop-outs themselves need to be the standard 10mm size (this is also the most common size for fork drop-outs). If you happen to have the slightly smaller 9mm drop-out, you could file them down by 0.5mm on either side for the motor to fit. Please seek professional assistance for this part as doing it wrongly will be entirely at your own risk.
• The front motor is compatible with the majority of disc brakes. However, certain disc brake calipers are wider than usual which means they may block the hub motor from fitting inside the forks. Please refer to the motor dimensions on the motor tab and measure the clearance inside your forks.
• If the dimensions don’t fit, you can replace your disc rotor to a 180mm version to clear the space from the motor, your local bike shop can help with this and provide the relevant adapter to change to a larger disc rotor.

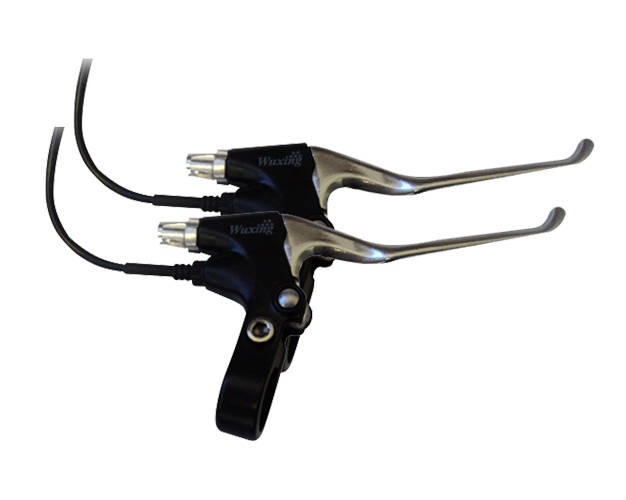

• The electric brake levers supplied with the kits are mechanical. i.e. they are not compatible with hydraulic brakes or brakes that are integrated with gear levers. However, installing the brake levers are not a necessity and the kit will work fine without them.

Key Features:

• Motor: 250w brushless front hub motor
• Forks Specification Required: 100mm clearance between the drop-outs (which is the case with the vast majority of bikes).
• Brakes: Disc Brake compatible – See notes above
• Wheels: 26", 700C, 28" or 29er available
• Battery: 36V/7Ah 16-29 Miles* / 36V/11Ah – 35-45 Miles* / 36V/17Ah – 55-65 Miles*
• Charger:  Included
