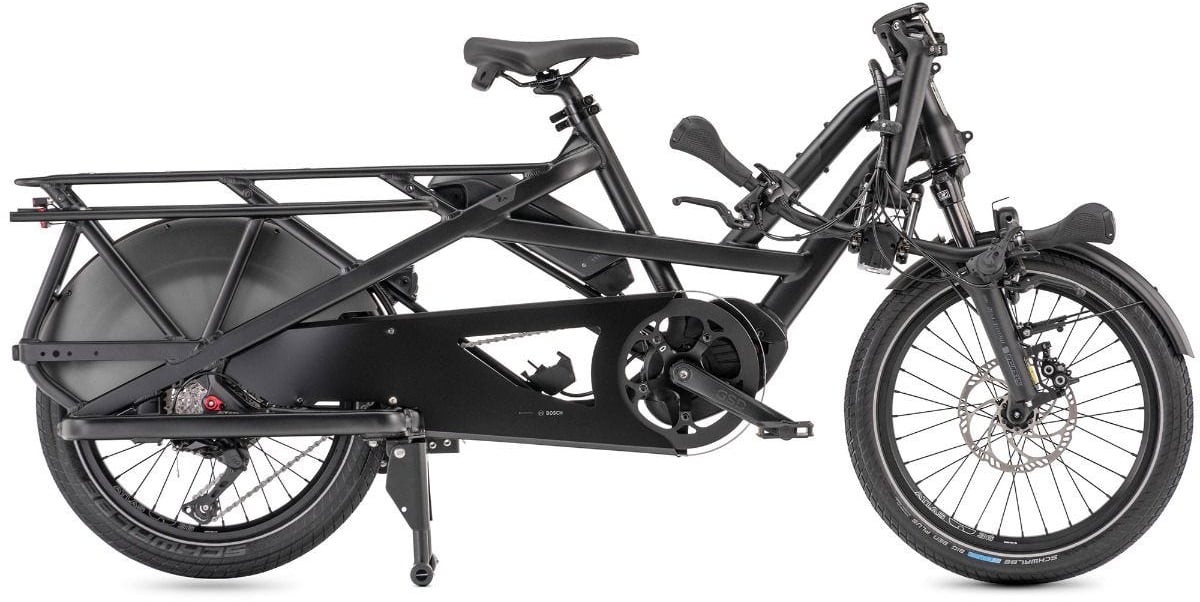

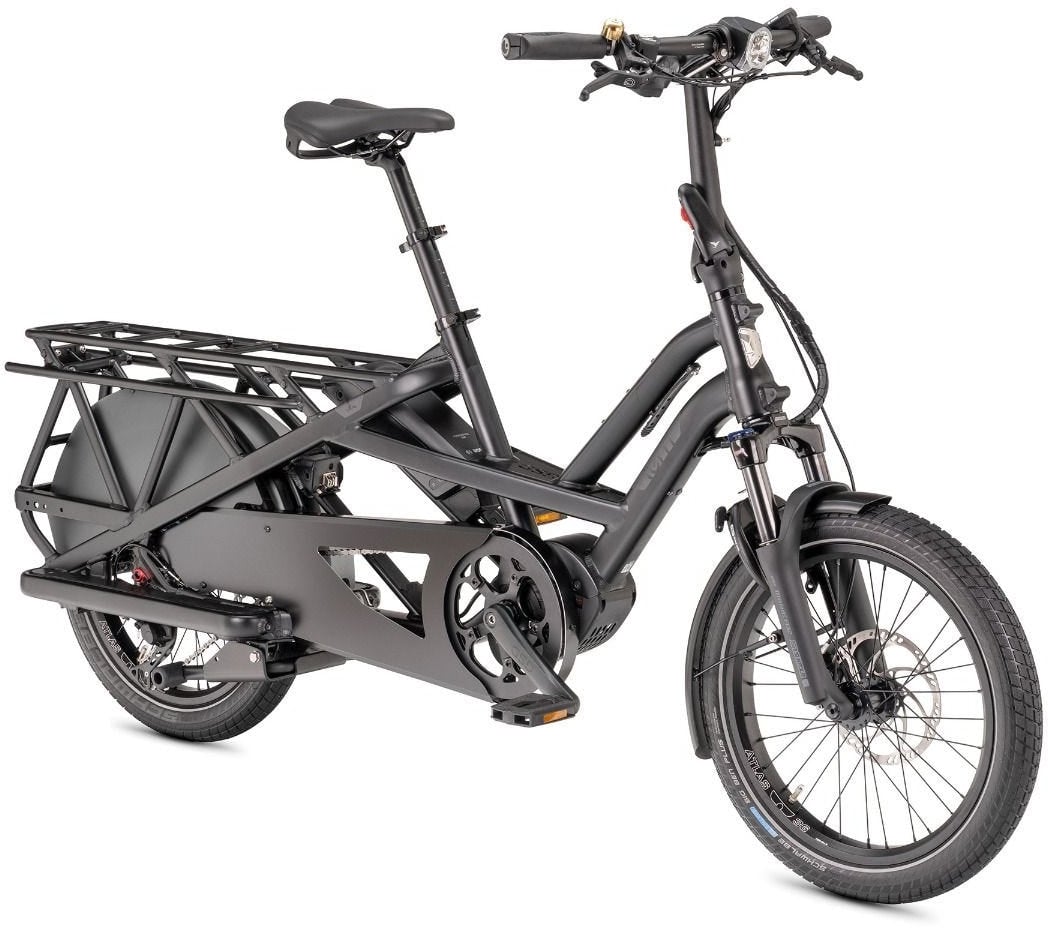

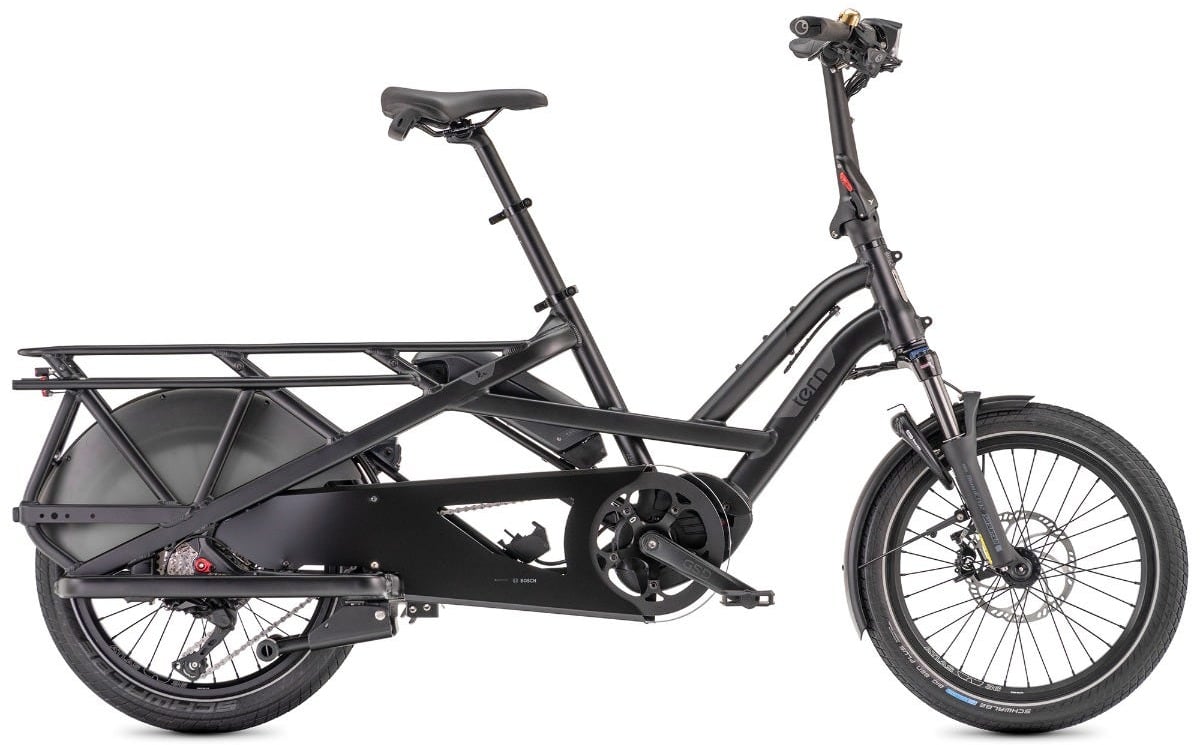

Tern GSD Gen 2 S10 LR Semi-Folding Cargo Electric Bike, BOSCH Cargo Line – Black

Tern GSD Gen 2 S10 LR Semi-Folding Cargo Electric Bike, BOSCH Cargo Line – Black

With a 200 kg (440 lb) Maximum Gross Vehicle Weight, the Tern GSD is ready to replace your car. It’ll let you carry two kids plus groceries, or a whole lot of cargo – but it’s the same length as a regular bike. Built-in dual-battery technology lets you ride all day, while space-saving features like FlatFold and Vertical Parking make the GSD incredibly easy to own and use.

Carries Your Family

Our ecosystem of passenger-carrying accessories fits your family – now, and five years from now. Carry two little ones in child seats and watch as they grow into (and out of) the Clubhouse. Give your spouse a lift on date night with the Captain’s Chair. Snap a photo of the day your teen graduates to carrying you.

One Size Fits Most

The GSD has an adjustable cockpit that resizes in seconds and without tools to fit riders 150 – 195 cm tall (4’11” – 6’5″), so you can easily share it with your family. The updated frame geometry with a slacker seat tube angle and higher handlebars also means the GSD doesn’t just fit – it’s more comfortable too.

Cargo-Ready

The GSD is made to fit your life, including all your stuff. Our ecosystem of accessories includes a wide range of cargo-carrying gear designed to keep your loads secure and stable for wobble-free hauling. You may not have thought of using a bike to pick up groceries, home improvement supplies, or plants for your garden – but now you will.

Easy to Manage

The GSD’s unique geometry makes for super stable riding, no matter what you’re hauling (or how wiggly your kids are). The low center of gravity lets even smaller riders confidently manage heavy loads, and the step-thru frame makes getting on and off the bike a breeze. Plus, we’ve made it easier for the rider’s feet to reach the ground at stops.

Key Features:

• Wheel Size: 20″
• Speed: 10 Speed
• Frame Size: One Size
• Max Weight: 200 kg (440 lb)
• Frame: Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
• Fork: Suntour custom for Tern, 1.5″ tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
• Stem: Tern Andros, adjustable, forged construction, patented technology
• Headset: Tern Flux Pro Taper, 1.5″, angular contact bearings, Physis integrated
• Handlebars: Tern Sweep, 6061-AL, Tern Andros adapted
• Bar Tape/Grips: Ergon

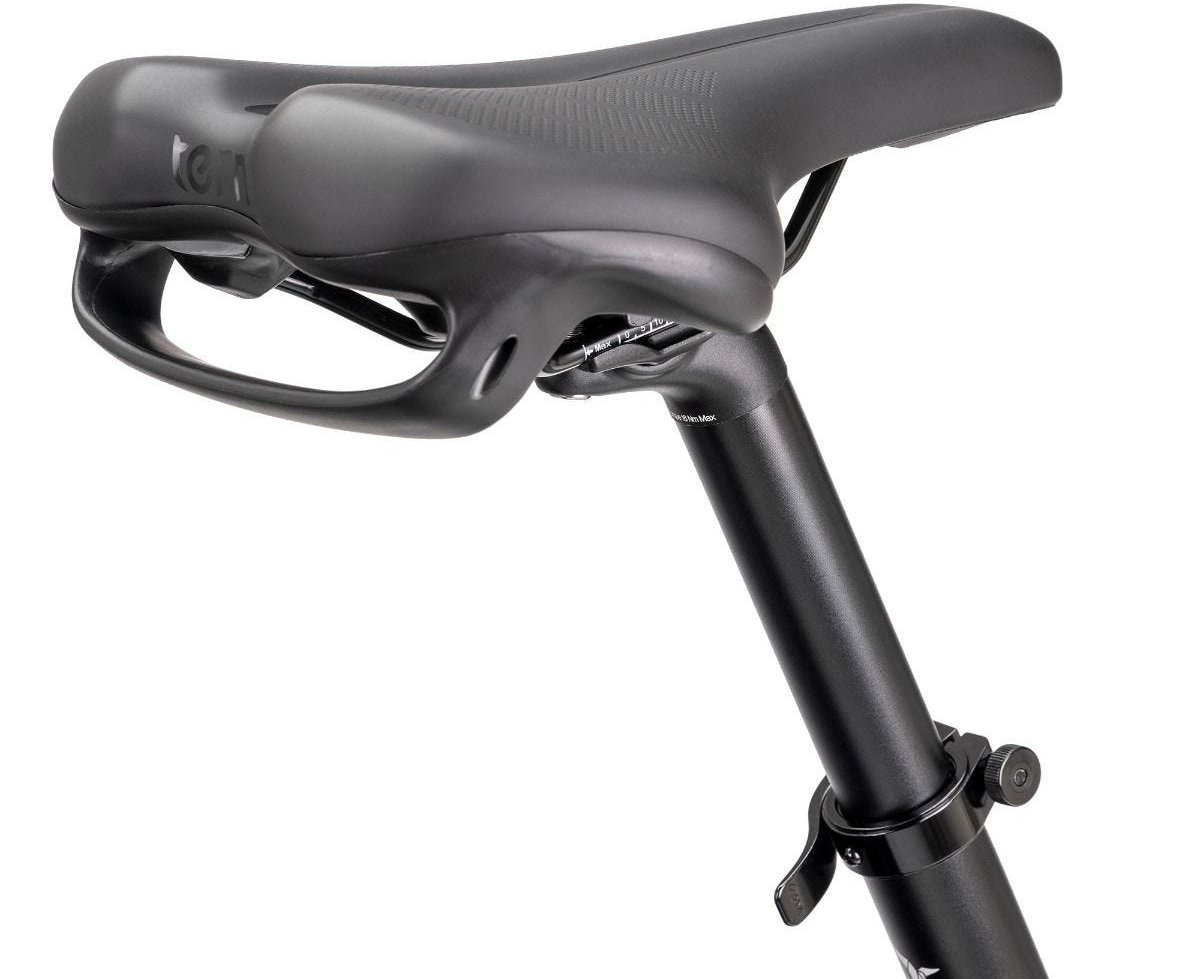

• Saddle: Tern GSD by Velo, with rear handle
• Seat Post: Tern Telescope, 34.9/30.9 mm, 2014-AL
• Seat Clamp: Tern Collar, 6061-AL, 2pc
• Spokes: Stainless steel, 13G
• Rims: Tern Atlas, ultra wide 36 mm, dual reinforced joint
• Tyres Front: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex Rear: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
• Shifters: Shimano Deore, 1 x 10 spd
• Rear Derailleur: Shimano Deore Shadow+
• Crankset: Tern GSD custom, forged 6061-AL DH crankarm
• Cassette/Freewheel: Shimano 11-36T, 10 spd
• Bottom Bracket: Motor integrated
• Chain: 10 spd, DHT for eBike, GST corrosion resistant coating
• Pedals: Urban with non-slip surface, sealed bearings
• Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph
• Battery: Bosch Dual Battery system, 400 Wh

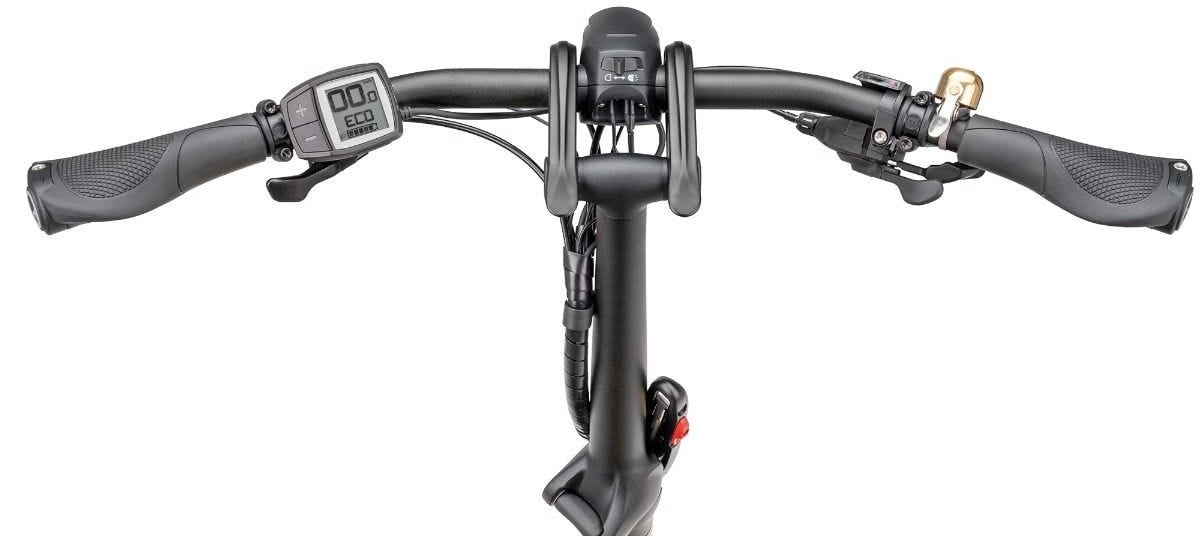

• Display: Bosch Purion
• Range: 400 Wh: (26-53 mile) 42-85 km)
• Bell: Type Pitch Plus, brass
• Kickstand: Atlas Lockstand, w/ remote unlock, patented technology

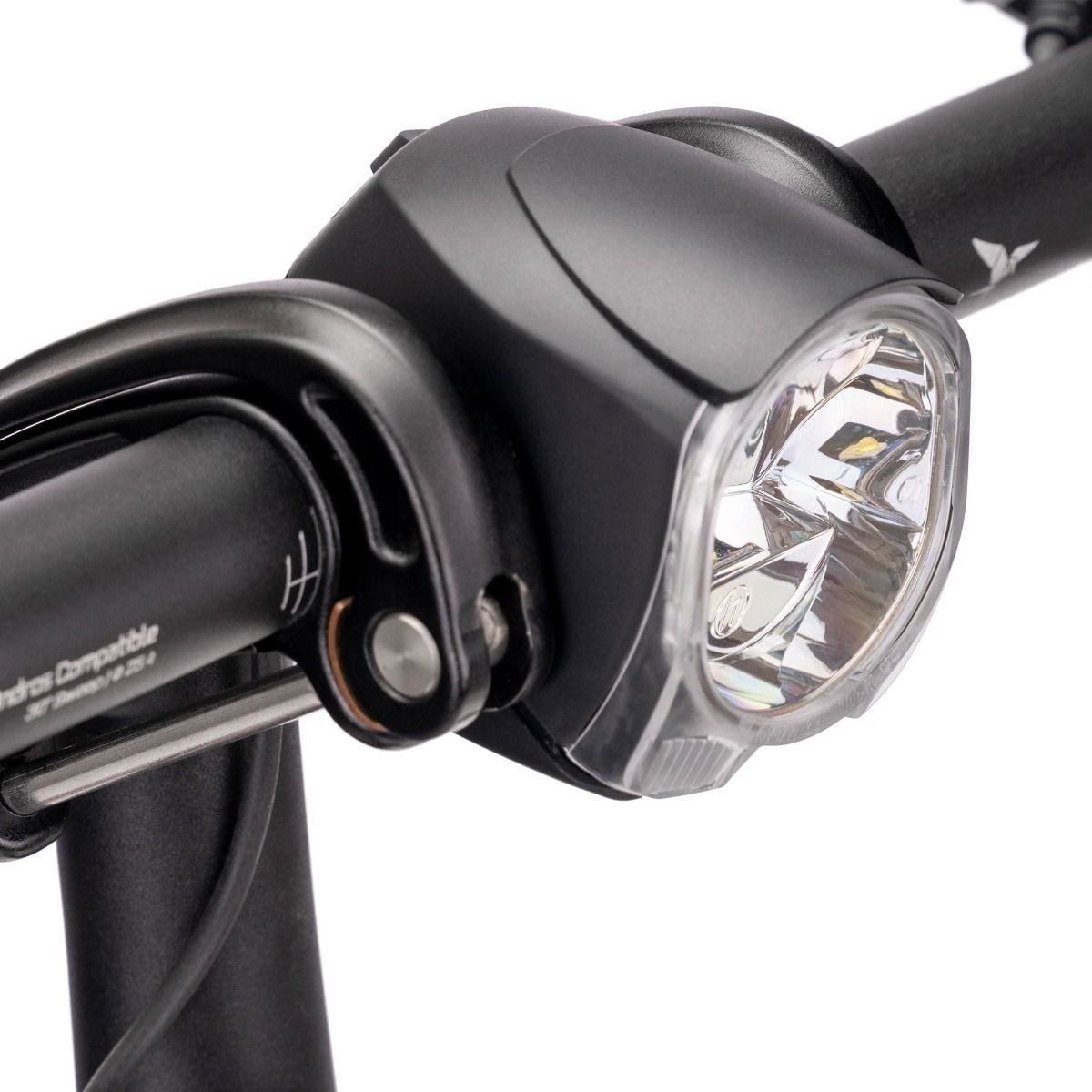

• Front Light: Tern Valo Direct, 190 lumens
• Rear Light: RearStop Brake Light, Always on brake light
