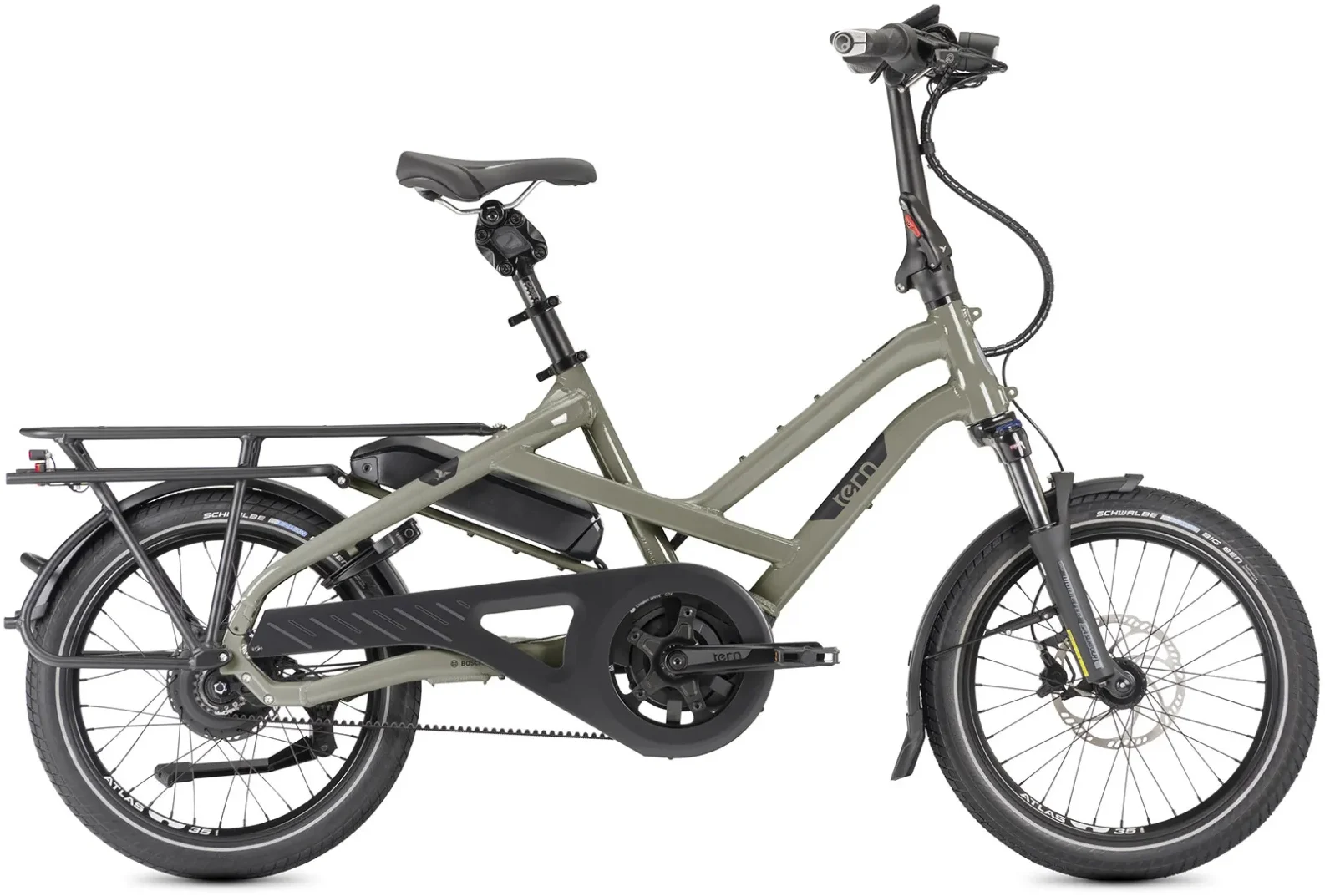

Tern HSD S00 Electric Cargo Bike, 545Wh – Dark Sage

Tern HSD S00 Electric Cargo Bike, 545Wh – Dark Sage

The Tern HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.

Key Features:

• Battery: Bosch PowerPack 545
• Motor: Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
• Display: Bosch Kiox 300 with LED remote, Flow app connectivity, electronic bike lock
• Security: Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
• Frame: Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved 180 kg
• Fork: Suntour custom for Tern, 1.5″ tapered Chromoly steerer, 32 mm stanchions, thru-axle, 70 mm travel, EFBE approved 180 kg
• Rear Cassette: Gates CDX precision CNC machined cog
• Chainset: Tern HSD custom, Gates CDX CNC machined beltring
• Chainrings: Gates CDX
• Chain: Gates Carbon Drive CDX belt
• Gear Shifters: Enviolo twist shifter
• Number of Gears: Enviolo continuously variable transmission
• Brakes: Magura MT4 hydraulic discs, 180 mm front rotor, 160 mm rear rotor
• Bottom Bracket: Motor integrated
• Pedals: Urban with non-slip surface, sealed bearings
• Rims: Tern Atlas H, wide 35 mm
• Front Hub: Novatec, thru-axle, sealed bearings
• Rear Hub: Enviolo Heavy Duty, 380% continuously variable range
• Front Tyre: Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certified
• Rear Tyre: Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certified
• Handlebars: Tern Sweep, 6061-AL, Andros adapted
• Handlebar Grips: Ergon
• Headset: Tern Flux Pro Taper by FSA, 1.5″, angular contact bearings, Physis integrated
• Stem: Tern Andros adjustable, forged construction
• Saddle: Tern Upright by Velo
• Seatpost: Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
• Extras Bell: Pitch Plus, brass Chainguard: Tern Custom, full chain cover Kickstand:Ursus, rear mount Luggage Socket: Combo Mount Front Light: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo BeamRear Light: RearStop Brake Light, Always on Fenders: SplashGuard, stainless hardware Rack(s):Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity Frame Lock: ABUS, keyed-alike with Bosch battery
