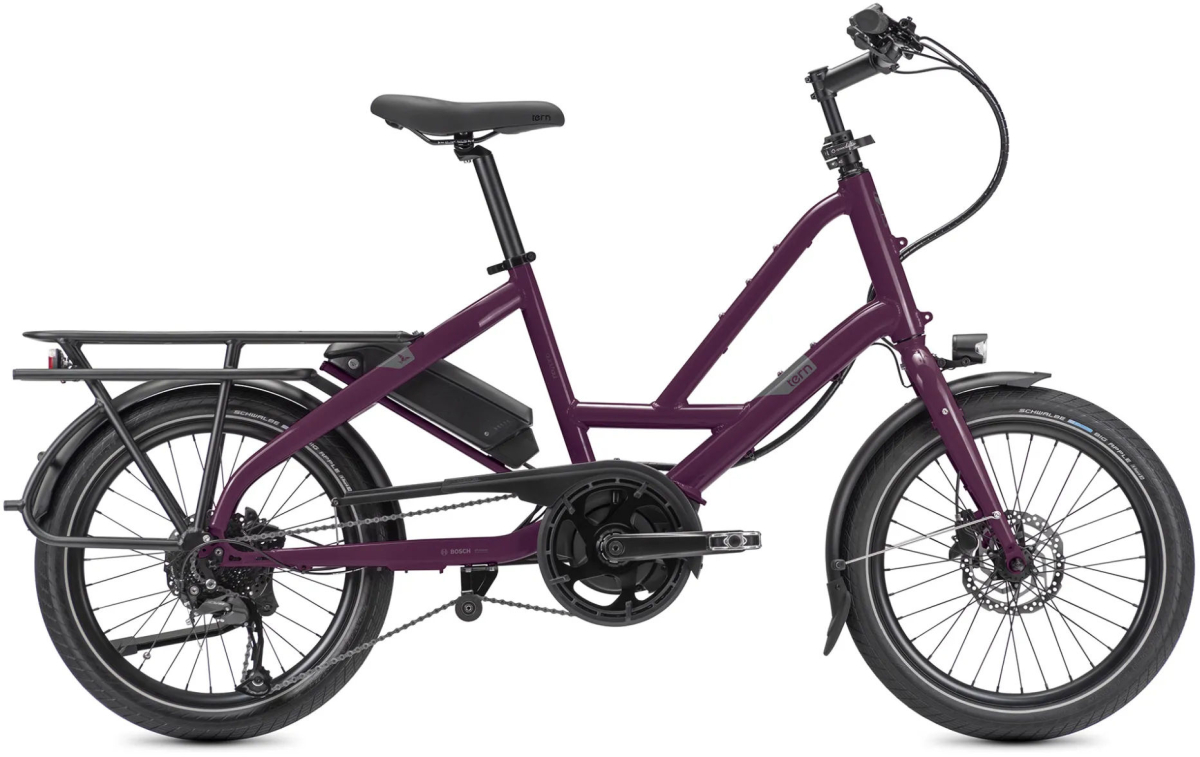

Tern Quick Haul P9, Bosch Performance, 400Wh – Merlot

Tern Quick Haul P9, Bosch Performance, 400Wh – Merlot

The Tern Quick Haul P9 is a compact and versatile e-bike designed for urban riders who need a reliable and adaptable commuting and cargo solution. Weighing 22.9 kg (50.5 lbs), it balances performance and portability, featuring a powerful Bosch Performance motor with 300% assist, 65 Nm of torque, and a max speed of 15 mph. Paired with a Bosch PowerPack 400 battery, the P9 offers a range of 53-105 km (32.9-65.2 miles), making it ideal for daily city commutes.

Equipped with a 9-speed Shimano Alivio Shadow derailleur and a wide gear range (31″ – 95″), the Quick Haul P9 smoothly tackles urban terrain. Hydraulic disc brakes by Shimano ensure reliable stopping power, while Schwalbe Big Apple tires with puncture protection provide grip and comfort on various surfaces.

Built for durability, the frame and fork are EFBE-approved, supporting a max gross weight of 150 kg (330.7 lbs) and a rider weight up to 120 kg (264.6 lbs). Designed to fit riders between 160-195 cm (63-76.8 in), the adjustable Speedlifter stem and Velo Comfort saddle offer flexibility and ergonomic comfort.

Practical features enhance the Quick Haul’s utility, including a 50 kg-capacity Atlas Q rear rack with an UpperDeck Mount System, Herrmans front and rear lights, full fenders, and a Pletscher rear-mount kickstand. Its SKS Chainblade chainguard and integrated luggage socket make it perfect for carrying loads while keeping a clean and stylish look.

Key Features:

• Speeds: 1 x 9
• Weight: 22.9 kg (50.5 lb)
• Gear Inches: 31″ – 95″ (2.45 – 7.57 m)
• Distance: Seatpost to Handlebar: 60 – 64 cm (23.6 – 25.2 in)
• Distance: Saddle to Pedal: 68 – 110 cm (26.8 – 43.3 in)
• Suggested Rider Height: 160 – 195 cm (63 – 76.8 in)
• Max Gross Vehicle Weight: 150 kg (330.7 lb)
• Max Rider Weight: 120 kg (264.6 lb)
• Frame: Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
• Fork: Cargo, steel, EFBE approved: 150 kg
• Stem: Speedlifter, 150 mm extension, 3D Forged stem, 31.8
• Headset: TH, cartridge bearings
• Handlebar: Low riser, 31.8, 6061-AL
• Grips/Bar Tape: Velo ergonomic, lock-on
• Saddle: Velo Comfort
• Seatpost: 31.6 mm, 6061-AL, micro-adjust clamp
• Seatpost Clamp: Tern Collar
• Front Brake: Shimano, hydraulic disc
• Rear Brake: Shimano, hydraulic disc
• Brake Levers: Shimano, hydraulic disc
• Brake Cable & Housing: Shimano, hydraulic disc
• Front Hub: Shimano disc
• Rear Hub: Shimano disc
• Spokes & Nipples: Stainless steel
• Rims: Kinetix Comp, for disc
• Tyres: Schwalbe Big Apple, 55-406, puncture protection, Reflex
• Shifter(s): Shimano Alivio, 1 x 9 spd, trigger
• Rear Derailleur: Shimano Alivio Shadow
• Crankset: Tern custom, forged 6061-AL crankarm
• Cassette/Freewheel: Shimano 11-34T, 9 spd
• Bottom Bracket: Motor integrated
• Chain: KMC for eBike, 9 spd
• Pedals: Urban with non-slip surface
• Shifter Cable & Housing: SP
• Motor: Bosch Performance, 300% Assist, 65 Nm Torque, max speed 15 mph
• Battery: Bosch PowerPack 400
• Display: Bosch Purion
• Range: 400 Wh: 53 – 105 km (32.9 – 65.2 mi)
• Charger: Compact Charger, 100-240V, 2A
• Bell: Aluminum
• Chainguard: SKS Chainblade
• Kickstand: Pletscher design, rear mount
• Luggage Socket: Combo Mount
• Front Light: Herrmans, 120 lumens
• Rear Light: Herrmans
• Fenders: Chromeplastic, stainless hardware
• Rack(s): Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
