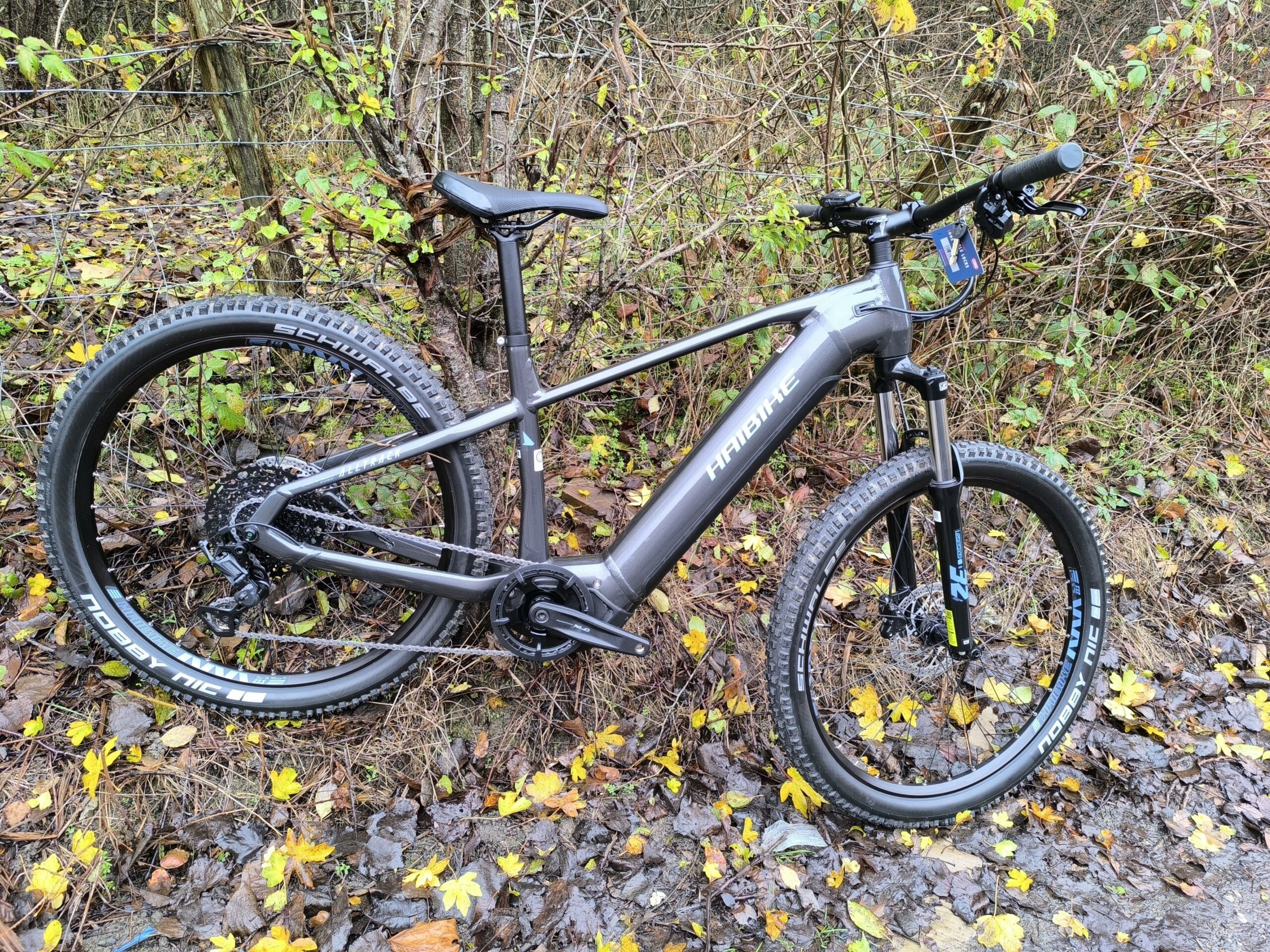

Ex Demo Haibike AllTrack 5 Hardtail Electric Mountain Bike 45cm Frame, Yamaha PW-S2 – Metallic Dark Graphite
Ex Demonstration: This very clean bike has 19 miles on the clock, and has been dry stored in our warehouse. We recently serviced the bike and checked it over, and can confirm that it’s in full working order.
6 month warranty.
Asphalt or off-road? With the Haibike ALLTRACK 5 you don’t have to choose! This hardtail eMTB is your ideal companion for on, and off-road, adventures. The SR Suntour suspension fork with 120 mm travel and the hydraulic disc brakes from Shimano ensure safety and comfort even on rough terrain. The new Yamaha PW-S2 motor with 75 Nm of torque and 720 Wh battery supports you on steep climbs and the reliable Shimano Deore 10-speed rear derailleur ensures smooth riding fun. The ALLTRACK 5 is available in frame sizes S and M with 27.5″ wheels and sizes M to XL with 29″ wheels.
Yamaha PW-S2
Developed with the philosophy that ‘less is more’ the PWseries S2 drive unit is significantly lighter and smaller while delivering more torque than its predecessor, the best-selling PWseries ST. With a long list of features, the new PWseries S2 elevates the riding experience to another level – making this multi-role drive unit ideally suited to everything from commuting and general daily usage through to countryside trekking, weekend touring and mountain trail riding.
Key Features:
- Frame: Haibike AllTrack, Yamaha PW-S2 Int. Aluminium – 45cm
- Motor: Yamaha PW-S2, 75Nm
- Battery: Yamaha InTube 720Wh

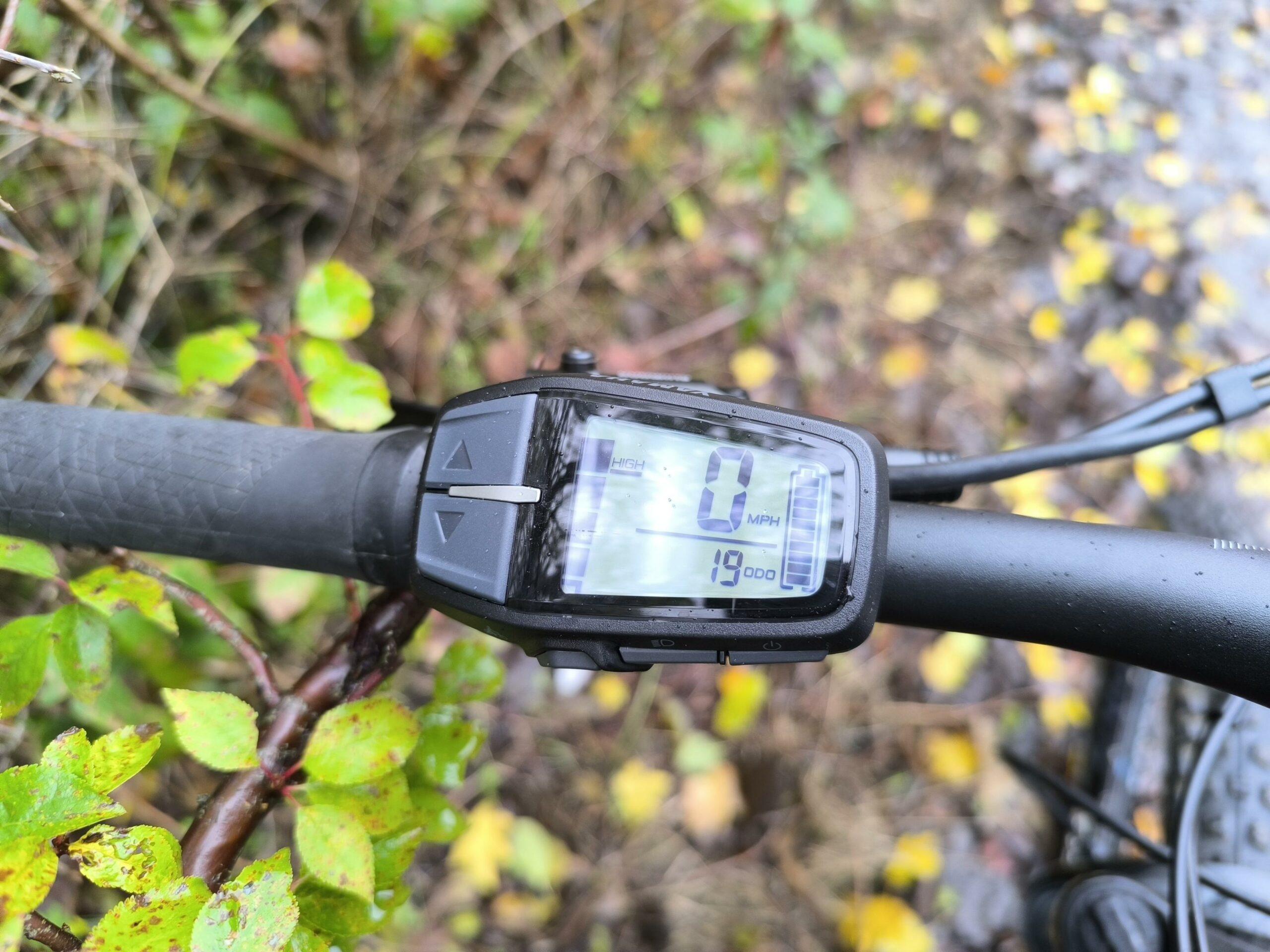

- Display: Yamaha Side Switch, 1.7″ LCD, 7 Function
- Suspension Fork: SR Suntour, XCM32 Boost DS, Steel spring/oil, 120mm Travel
- Handlebars: XLC, 720mm
- Stem: XLC, A-Head, A-head, 31.8mm
- Brakes: Alhonga HT472 Hydraulic Disc, 2 Piston
- Gearing: Shimano Deore 10s
- Shifters: Shimano Deore M4100, Trigger Switch, Nexus Gear Shift
- Wheels: 27.5″ / 29″ Rodi, Tryp 30 Rim x Shimano MT400-B Hubs
- Front Tyre: WTB Ranger, 27.5″/29″ x 2.3″
- Rear Tyre: WTB Ranger, 27.5″/29″ x 2.3″
- Battery Range: Yamaha PowerTube 720Wh – 30-130 Power Assisted Miles*
- Ex Demo
*As provided by Haibike UK. This will vary depending on weight of user, terrain and mode of pedal assistance used
Ex Demo Haibike AllTrack 5 Hardtail Electric Mountain Bike 45cm Frame, Yamaha PW-S2 – Metallic Dark Graphite
- Frame: Haibike AllTrack, Yamaha PW-S2 Int. Aluminium – 40cm,45cm
- Motor: Yamaha PW-S2, 75Nm
- Battery: Yamaha InTube 720Wh
- Display: Yamaha Side Switch, 1.7″ LCD, 7 Function
- Suspension Fork: SR Suntour, XCM32 Boost DS, Steel spring/oil, 120mm Travel
- Handlebars: XLC, 720mm
- Stem: XLC, A-Head, A-head, 31.8mm
- Brakes: Alhonga HT472 Hydraulic Disc, 2 Piston

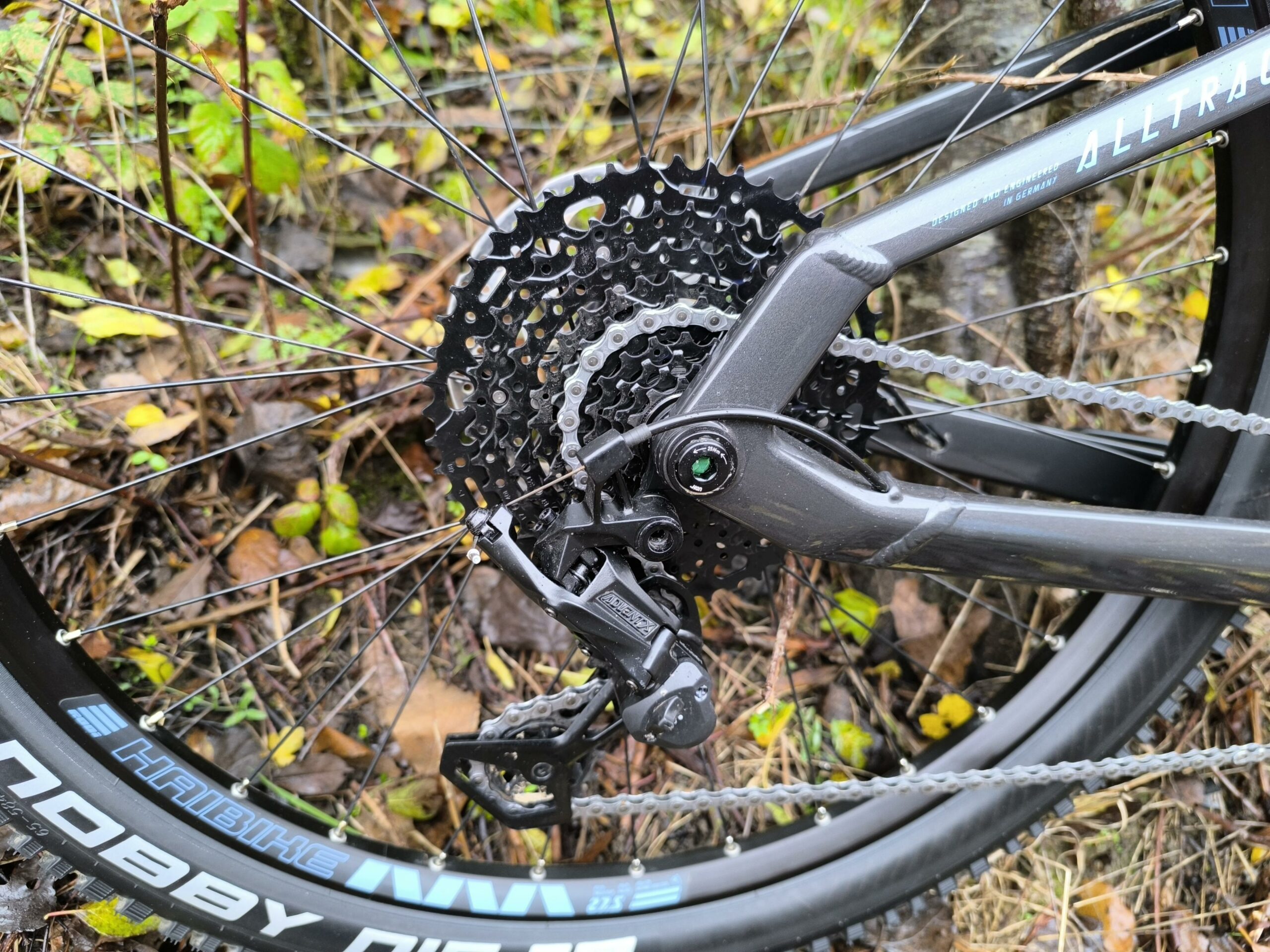

- Gearing: Shimano Deore 10s
- Shifters: Shimano Deore M4100, Trigger Switch, Nexus Gear Shift
- Cassette: Shimano HG41, 11-46T
- Chainring: Steel, 38T
- Crank: Miranda Kies, Alloy
- Saddle: XLC, MTB
- Seatpost: Aluminium, Patent, 34.9mm
- Wheels: 27.5″ / 29″ Rodi, Tryp 30 Rim x Shimano MT400-B Hubs
- Front Tyre: WTB Ranger, 27.5″/29″ x 2.3″
- Rear Tyre: WTB Ranger, 27.5″/29″ x 2.3″
- Battery Range: Yamaha PowerTube 720Wh – 30-130 Power Assisted Miles*
*As provided by Haibike UK. This will vary depending on weight of user, terrain and mode of pedal assistance used
| Battery Size |
20 Ah / 720 Wh
|
| Wheel Size |
27.5 in
|
| Range (miles) |
100, 120+, 80
|
| Top Speed (mph) |
15.5
|
| Frame Style |
Crossbar
|
| Colour |
Grey
|
| Brake Type |
Disc
|
| Suspension |
Front
|
| Material |
Alloy
|
| Gears |
10
|
| Drive Type |
Crank
|
| Battery Make |
Yamaha
|
| Motor Make |
Yamaha
|
| Brand |
Haibike
|
Yamaha PW-S2
Increased torque-to-weight ratio
The compact new PWseries S2 drive unit maximum torque of 75Nm is over 7% higher than the PWseries ST, and weight has been cut to just 2.85 Kg – 16% less than the previous design – making it one of the lightest in its class. This highly desirable combination of increased output with reduced mass and a 20% decrease in volume ensures that the new PWseries S2 achieves one of the highest torque-to-weight ratios in the multi-role segment – giving strong, instant and user-friendly performance.
Greater freedom in frame design
The smaller dimensions of the new unit offer bike manufacturers even greater freedom to produce new generation frame designs with features such as increased ground clearance for improved performance on technical terrain.
The 20% more compact PWseries S2 layout also makes it possible for bike manufacturers to develop idealized frame designs with shorter chain-stays that can potentially increase overall rigidity to give enhanced maneuverability and increased rear wheel traction.
From an aesthetic point of view the reduced size of the PWseries S2 drive unit also offers Yamaha’s partner bike manufacturers the opportunity to achieve a clean and minimalist look when designing the next generation of Sport and Trail models.
Improved pedaling efficiency and feel
The new PWseries S2 features a narrow bottom bracket axle length of 128mm – 22.8mm less than the PWseries ST – which make possible the application of narrow Q-factor, and therefore improved pedaling efficiency and feel can be expected. This feature, together with the Automatic Support Mode, ensures an extremely easy and enjoyable riding experience.
The new ISIS bottom bracket axle interface delivers increased rigidity, making this new mid-class drive unit ideally suited to the needs of e-MTB riders – and, being fully compatible with a front double chainring, the compact new drive unit opens up greater possibilities for bike manufacturers.
Automatic Support Mode for all-round Sports and Trail
It’s no simple feat to shift gears, adjust seat height, and change ride modes at roughly the same time. The Automatic Support Mode for the PWseries S2 selects the right amount of assist based on riding conditions. Whether you’re starting from a stop, accelerating, braking, riding on a level surface, or climbing a hill, you can leave ride mode changes to the system and focus on shifting and braking.
