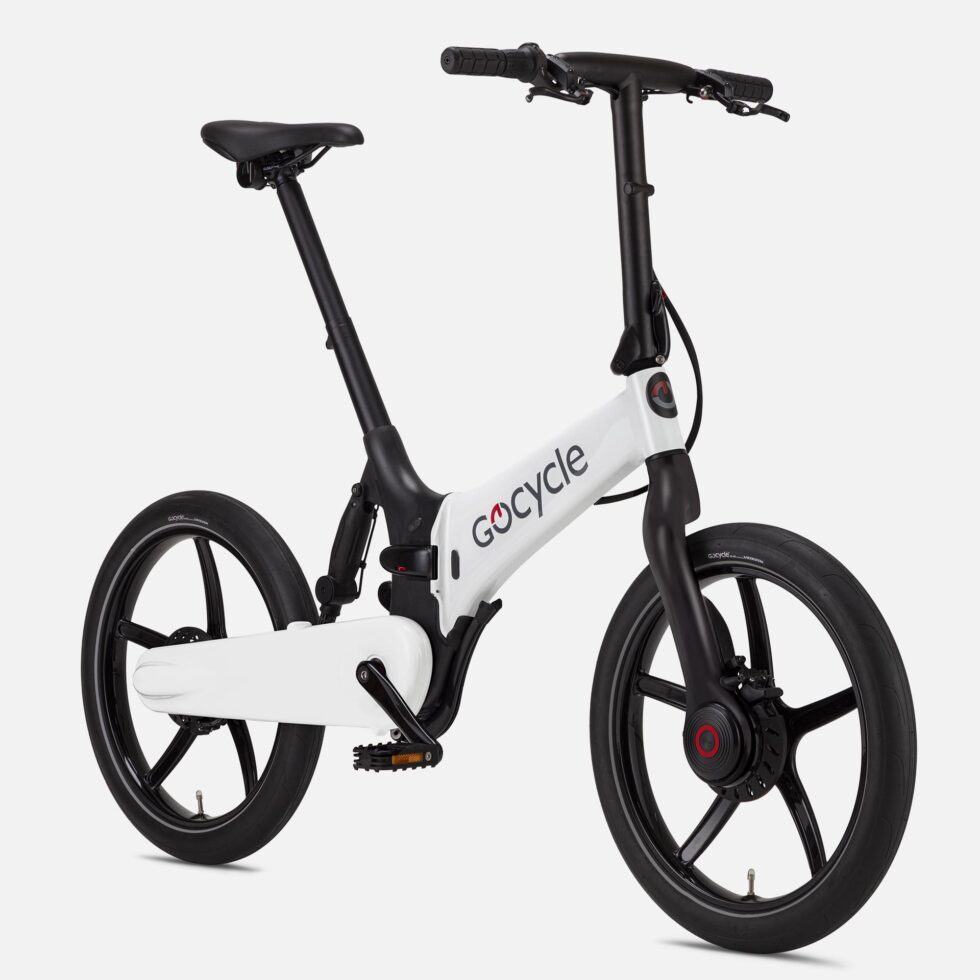

Gocycle G4 Folding Electric Bike, 8.1Ah Battery – White

Gocycle G4 Folding Electric Bike, 8.1Ah Battery – White

Gocycle G4 is powered by the all-new G4drive electric motor. The G4drive provides a smooth and quiet ride, while delivering more torque and low-speed start capability – all within a class-leading compact package. The proprietary G4drive and gearbox has been in development for a number of years and subject to many, many test miles at Gocycle’s research and development facility to ensure it performs to the G4’s high standards of reliability.

An all-new single-sided carbon fibre front fork houses the fully-integrated G4drive electric motor and links the Gocycle G4 chassis to the road. Its smooth and flowing lines provide a pure aesthetic while helping to reduce stress and overall weight. It’s been engineered with more vertical compliance for improved comfort whilst maintaining directional stiffness for sure footed steering through the corners.

The monocoque chassis of the G4 features a new automotive-inspired injection moulded composite mid-frame. The innovative mid-frame forms the G4’s strong core and represents the latest evolution of Gocycle’s automotive design philosophy. It’s produced using an advanced automotive manufacturing technique that delivers automated precision, low weight, and class-leading stiffness.

It has the important job of connecting the hydroformed aluminium front frame and Gocycle’s patented magnesium Cleandrive. Three different components, three different materials, each optimised for three different roles. The Gocycle G4’s removeable powerful Lithium-Ion battery is seamlessly integrated into the G4’s hydroformed aluminium frame. It provides a range of up to 40 miles (65km).

Key Features:

• Frame Material – Hydro-formed 6061 T6 alloy front frame, matte black injection moulded composite mid-frame and injection moulded magnesium Cleandrive
• Motor Drive Control – Pedal Torque Sensing
• Smart Device Connectivity – GocycleConnect App via wireless Bluetooth
• Riding Modes – City, Eco, On-Demand, Custom. Multiple, programmable through GocycleConnect® App
• Electric Drive Speed – 15.5 mph
• Range – Up to 65km (40 miles), depending on pedal input
• Motor – Gocycle proprietary front hub motor, G4drive with traction control 250 watt EU continuous
• Battery – Quick removable lithium ion: 8.1Ah, 36V, approx 300 Wh
• Charging Time – 3 hours
• Motor Controller – Gocycle proprietary
• Handlebar Display – LED Fuel Gauge or with Smart Device and GocycleConnect App
• Shifting – Mechanical Microshift
• Transmission – Patented Cleandrive® Shimano Nexus 3-speed
• Brakes – Hydraulic disc, front and rear
• Tyres – Gocycle Tyre (406-60, 20 x 2.25 in)
• Front Motor Fork – Gocycle proprietary, single-sided, Carbon Fibre, fixed
• Rear Suspension – Gocycle Lockshock 25mm (1 in) travel
• Saddle – Velo Sport
• Seat Post – 34.9 mm Aluminium
• Pedals – Gocycle Folding Standard
• Grips – Gocycle Sport Ergo
• Minimum Saddle Height – 880mm (34.5″)
• Handlebar Stem – Quick Folding
• Head Angle – 70°
• Seat Tube Angle – 68°
• Wheelbase – 1065mm (42 in)
• Bottom Bracket Height – 275mm (11.5 in)
• Folding Method – Fast Folding frame and handlebar
• Stowable Dimensions – Kickstand down: L830mm x W390mm x H750mm (L32.7in x W15.3in x H29.5in) with folding pedals folded. Kickstand up: L880mm x W390mm x H615mm (L34.6in x W15.3in x H24.2in) with folding pedals folded
• Approximate Weight – 17.6kg (38.8 lbs) including kickstand & including pedals
• Maximum Rider Weight – 100kg (220 lbs), including clothing and luggage
