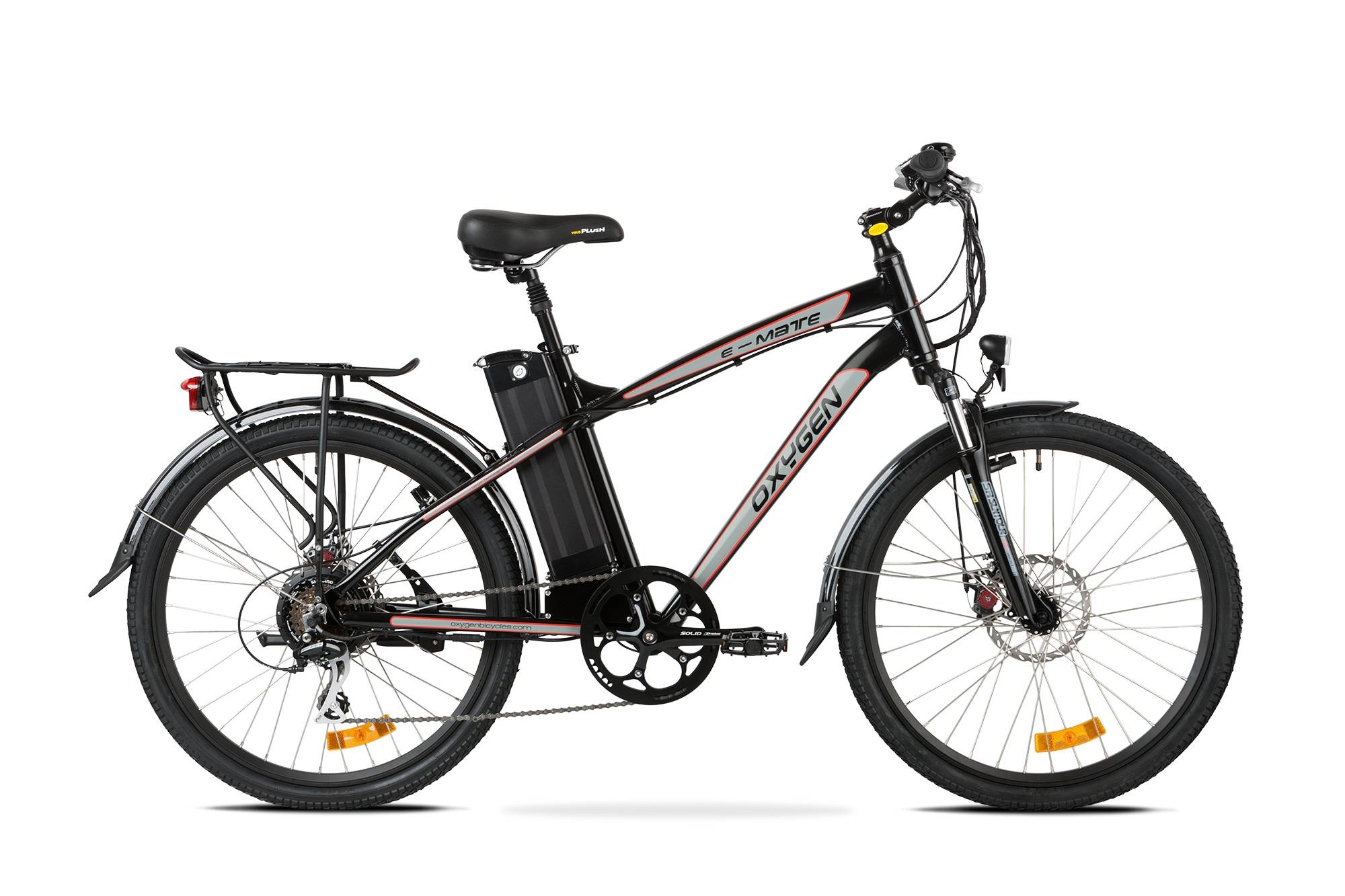

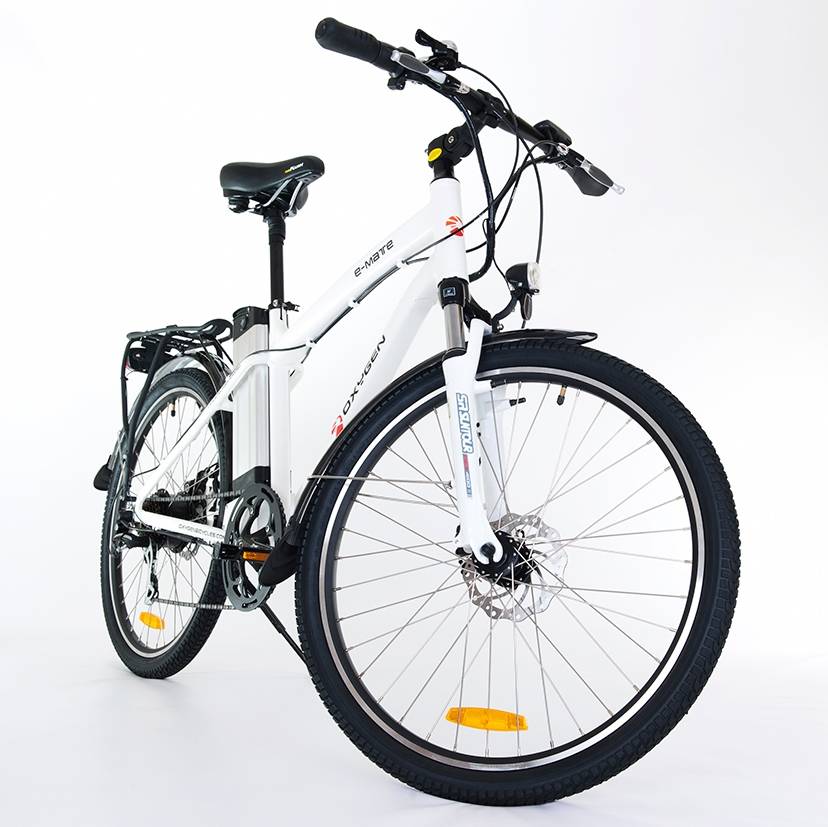

Oxygen E Mate Electric Bike

Frameset

Size

19" (48 cm)

Frame

Alloy 6061 T4 & T4 treated

Front Suspension

SR Suntour Nex V2 with disc brake adaptor, adjustable with 63mm travel

Rear Rack

Massload disc super carrier, heavy duty 25kgs

Electric Drive

Motor

Oxygen Dapu cassette motor 36V 250W

Battery

Lithium Polymer 37V 15.5Ah

Controller

Oxygen 36V 15A, intelligent controller with Controlled Power Flow

Throttle

Wuxing – twist and go

Pedal Assist

5 power modes + mode 0 (throttle only), power on/off, lights on/off LCD panel

Charger

HP intelligent 42V 3A CE compliant

Performance

Range

Assisted up to 70 miles with Pedal Assist, Throttle only 35 miles, Combined 47 miles

Maximum Speed

15.5mph or 25km/h

Maximum Power

576W (peak only during climibing or start) 489W incl efficency @ 85%

Weight

Bike excluding the battery 19.7 kg, incl 13Ah battery 23.4kg

Max Payload

130kg (20.5 stones) Rider, 15kg luggage

Wheels

Rims

Oxygen double walled

Spokes

12G Stainless Steel spokes

Hubs

Joytech Disc 36 holes with Quick Release

Tires

Kenda City 26*1.95''

Drivetrain

Shifter

Oxygen Twist Shift and go

Rear Derailleur

Shimano Acera

Chain

Shimano UG51

Crank

Prowheel with CNC machined chainguard 52T

Cassette

Shimano 7 speeds 12-34T

Pedals

VP Platforms with reflectors

Components

Saddle

Velo Plush

Seat Post

Suspension alloy 27.2mm

Handlebars

A-one oversize 31.8mm superwide 650mm

Stem

Ahead Promax adjustable 110mm, 31.8mm oversize

Headset

Neco – frame integrated ahead with sealed cartdrige bearings

Brakes

Front & Rear- Avid BB7 with 180mm rotor,

Accessories

Lighting

Full LED lighting powered from the main battery with handlebar switch
