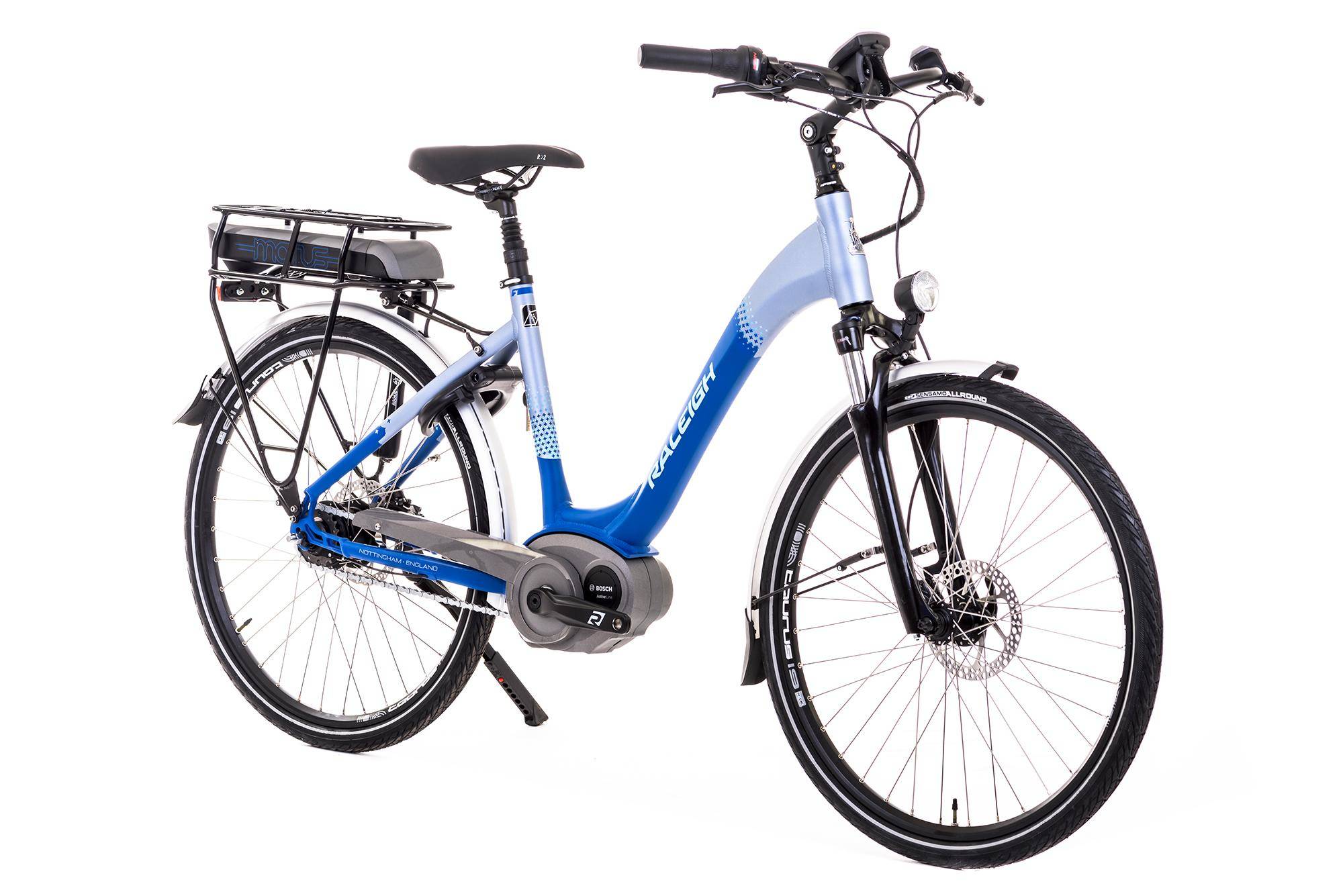

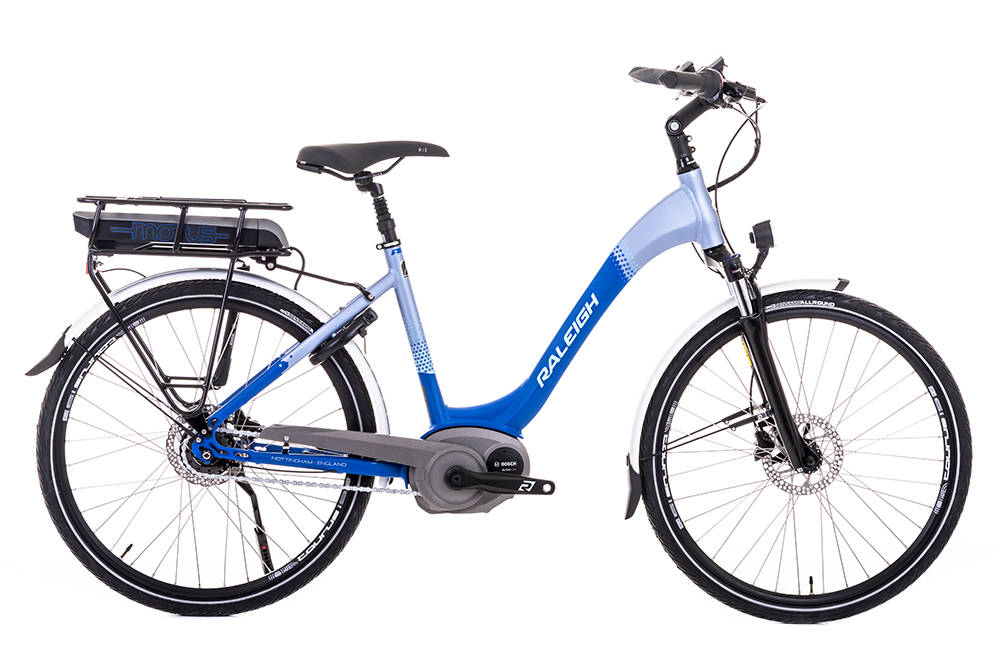

Raleigh Motus Blue Step Through Bosch Geared 26" Wheel Electric Bike 46cm
The Raleigh Motus Blue Step Through Bosch Geared 26" Wheel Electric Bike incorparates the new generation 2 BOSCH Active Line system with smoother acceleration whilst shifting gear to create the perfect combination of mechanical and electrical pedelec technology, up to an amazing 112 mile range from Eco mode, and a super low profile and exceptionally quiet middle motor.

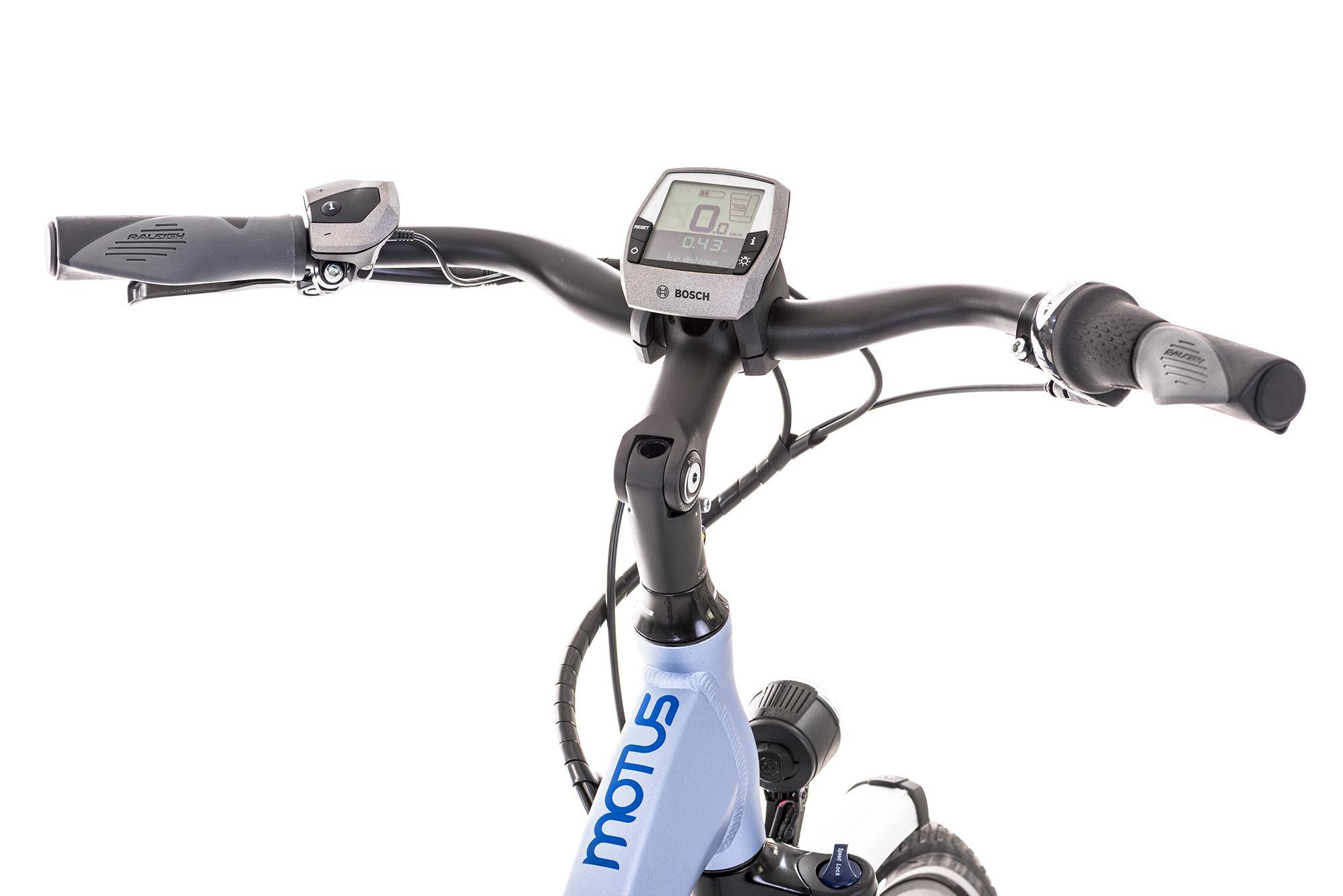

The Intuvia on-board computer allows you to switch between four different levels of support; Eco, Tour, Sport & Turbo, as well as displaying information like speed, battery level, distance travelled and approximate range available. Plus the handy 'walk' button delivers a low power output from the motor for those occasions where you need to push your bicycle up some steps or a short slope.

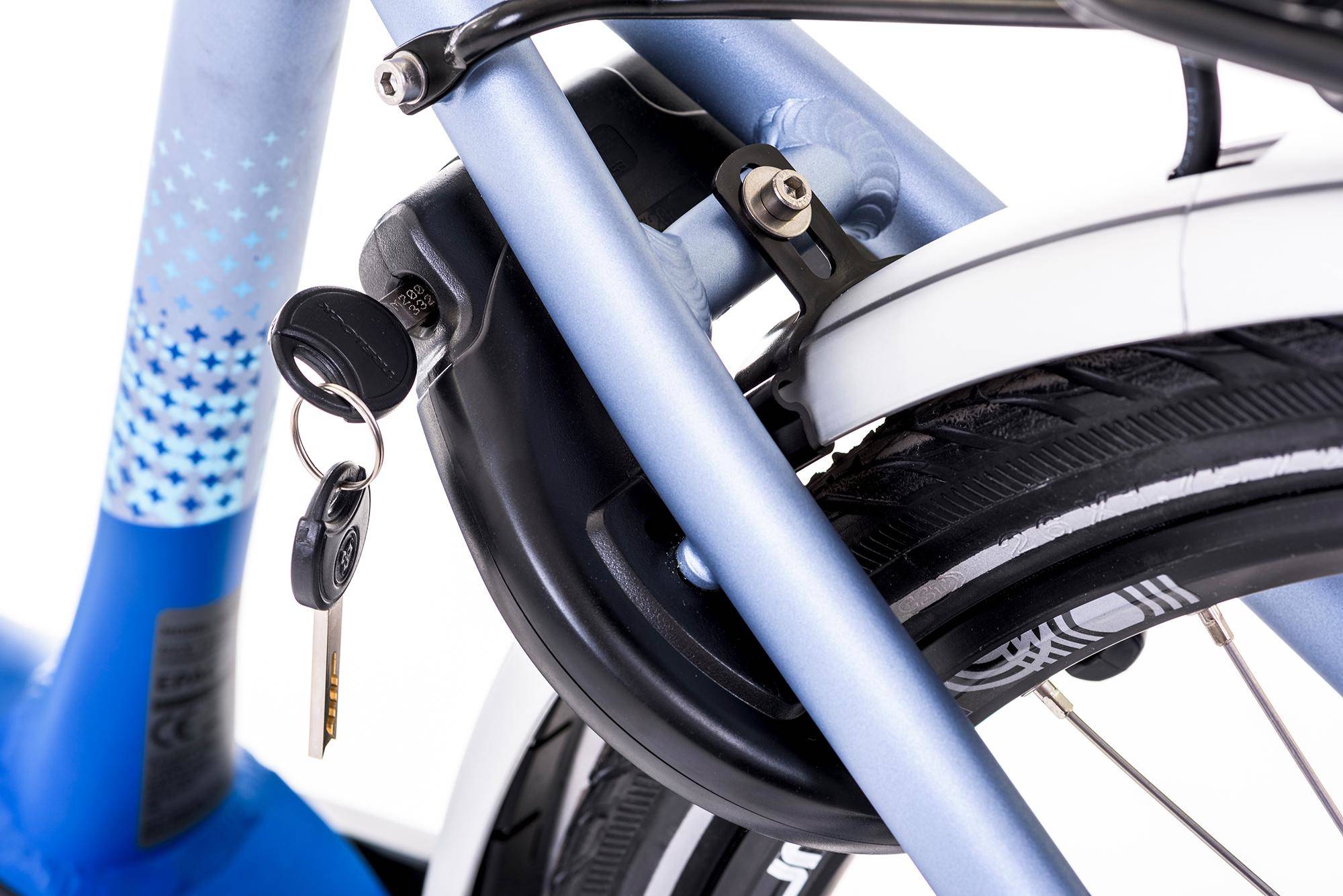

The Raleigh Motus comes fully equipped with a kickstand, mudguards and a rear pannier rack. Additional features include high quality lights which are integrated into and powered by the motor system and a clever rear wheel lock which can be quickly applied while you pop into the shops. Braking is covered by new Shimano hydraulic disc brakes, whilst CST e-bike specific Zeppelin tyres keep your wheels firmly planted to the road. The 60mm travel Suntour suspension fork, suspension seatpost, ergonomic grips, adjustable stem and oversize hybrid handlebar all provide the highest levels of comfort over any distance. Plus the Motus is fitted with a high end Selle Royale Scientia R2 saddle for the utmost luxury and a low step frame design allows you to more easily mount and dismount the bike. If you're looking for a high quality bike that has the power to let you explore even the most demanding terrain without breaking a sweat then the Motus is the bike for you.
The hub version of the Motus is equipped with 8 speed Shimano Nexus hub gears which are perfect if you want to minimise the maintenance requirements of your new bike as all of the component parts are safely sealed away in the hub, protecting them from ingress of dirt, water and grease.
Key Features:
- Motor: 250w Bosch Active Line
- Frame: 46cm Alloy low step frame
- Forks: Suntour Nex suspension fork 63mm travel
- Gears: Nexus 8 Speed hub
- Brakes: Shimano M315 hydraulic disc brake
- Wheels: 26in Alloy Double wall with Schwalbe Energizer Life, 26" Reflex
- Battery: 36V 11Ah - up to 112 Miles from Eco mode*
* This will vary depending on weight of user, terrain and mode of pedal assistance used.
Specification:
Accessories
- Mudguards - set: SKS Full Mudguards with Cable guide

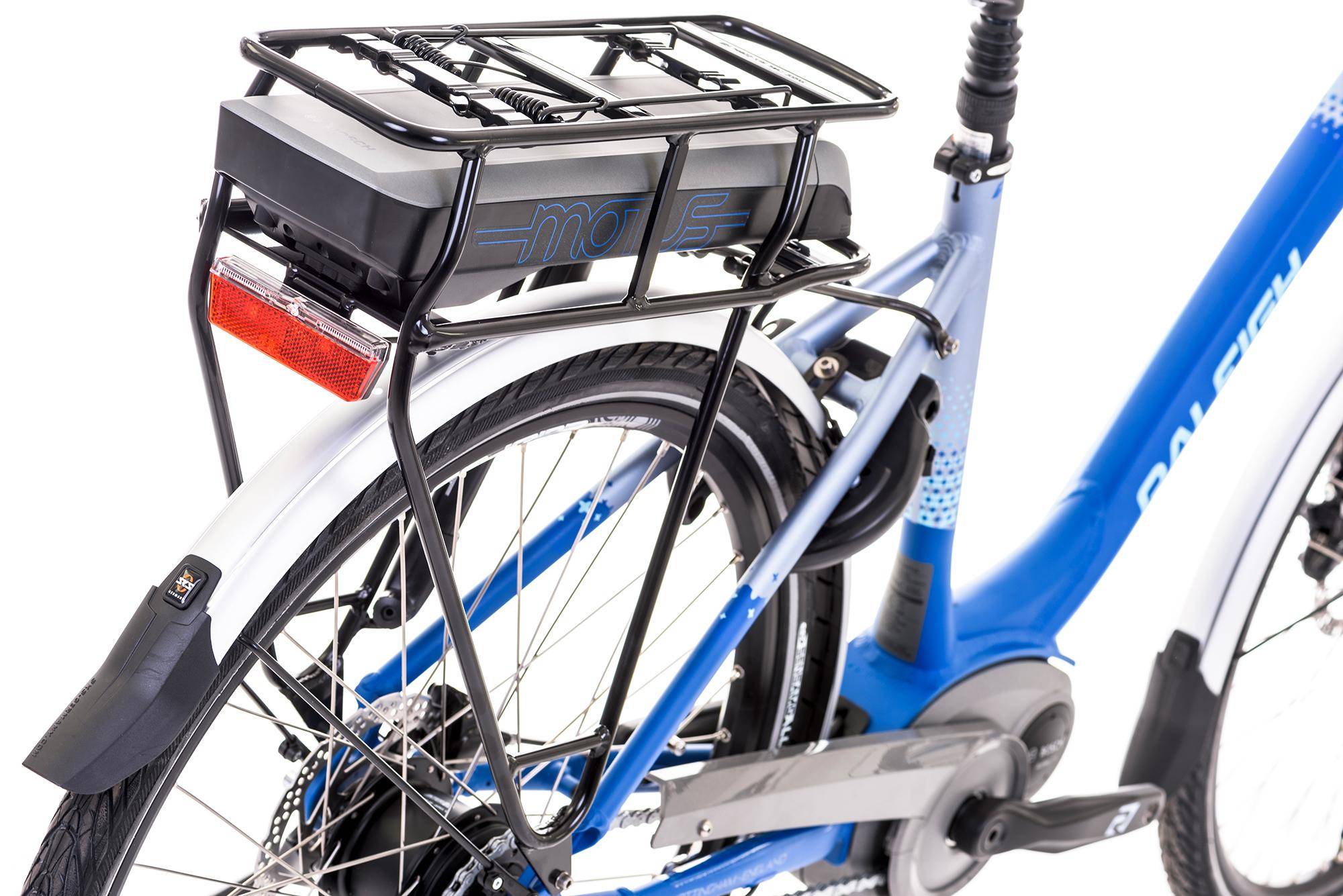

- Rear carrier: Alloy Rack
- Lighting: Trelock Front and rear Dynamo lights
Components
- Stem: Adjustable angle Alloy
- Handlebars: XLC Evo Ergobar
- Grips: Ergonomic Comfort Grip
- Saddle: Selle Royal Scienta R2
- Seatpost: Alloy Seatpost 30.9
- Seat clamp: Quick Release Alloy Clamp
Electrical
- Motor: Bosch Active Line
- Battery: Bosch Power Pack 400Wh (11Ah), 36V
- Display: Bosch Intuvia display Featuring: Eco, Tour, Sport and Turbo modes. Range, Speed, and Time information Walk button allows 6km/h assist function to allow easy pushing over obstacles etc
- Range: up to 112 Miles from Eco mode
Frameset
- Frame: Alloy low step frame
- Fork: Suntour Nex suspension fork 63mm travel
- Headset: Low Stack semi integrated
Groupset
- Shift levers: Nexus 8 Speed revoshift
- Brake levers: Shimano M315 Hydraulic Disc brake
- Rear derailleur: Nexus 8 Speed hub
- Front brake: Shimano M315 hydraulic disc brake
- Rear brake: Shimano M315 hydraulic disc brake
- Crankset: Raleigh Alloy BOSCH
- Chain ring: Bosch Sprocket 18T
- Bottom bracket: Bosch Integrated motor
- Freewheel/cassette: Nexus 8 Speed Hub Gear
- Chain: KMC Single Speed
- Pedals: Comfort Pedals with Anti Slip
Wheelset - 26"
- Front wheel: Alloy Double wall, 36 spoke, 26" on Alloy disc hub
- Rear wheel: Double Wall rim 36 hole 26" on Nexus 8 speed disc hub
- Front hub: Alloy 36 hole black disc QR
- Rear hub: Shimano Nexus 8-speed disc
- Rims: Black 36 hole disc brake compatible
- Front tyre: Schwalbe Energizer Life, 26" Reflex
- Rear tyre: Schwalbe Energizer Life, 26" Reflex
- Inner tubes: 26"X 1.5"presta
Battery Size | 11 |
Brake Type | Disc |
Colour | Blue |
Drive Type | Crank |
Frame Size | 46cm |
Gears | 8 |
Gender | Men & Unisex |
Material | Alloy |
Motor | 250 |
Range | 112 |
Suspension | Front |
Top Speed | 15.5 |
Type | Step Through |
Wheel Size | 26 |
Year | 2017 |
Battery Specification:
- Bosch Power Pack 400Wh, 36V
Extra Information:
- This Electric Bike will be SUPPLIED ASSEMBLED complete with charger and everything you see included.
- Upon arrival, simple attachment of the pedals and the straightening of the handlebar will be required.
- Mini Pump, Kick Stand. Charger Included
L
lesleyskylark1
Bike is great without the battery it rides like a dream a great plus with the battery fantastic.
Great amount of information given as well as list of what should be with the bike only thing weird was that the info said there was a small tool kit for putting up the bike but no tool kit had to find some tools out of my husbands tool kit. he was not a happy bunny. I thought the bike came put together. handle bars and peddles need work done and the paper work from raleigh said there should have been a pre sale check could see no proof of the check beging done it said that the battery should have been charged this was not done also. Service record book is great i filled it the bit that was to be done by Ebikes had not. bike is great though
