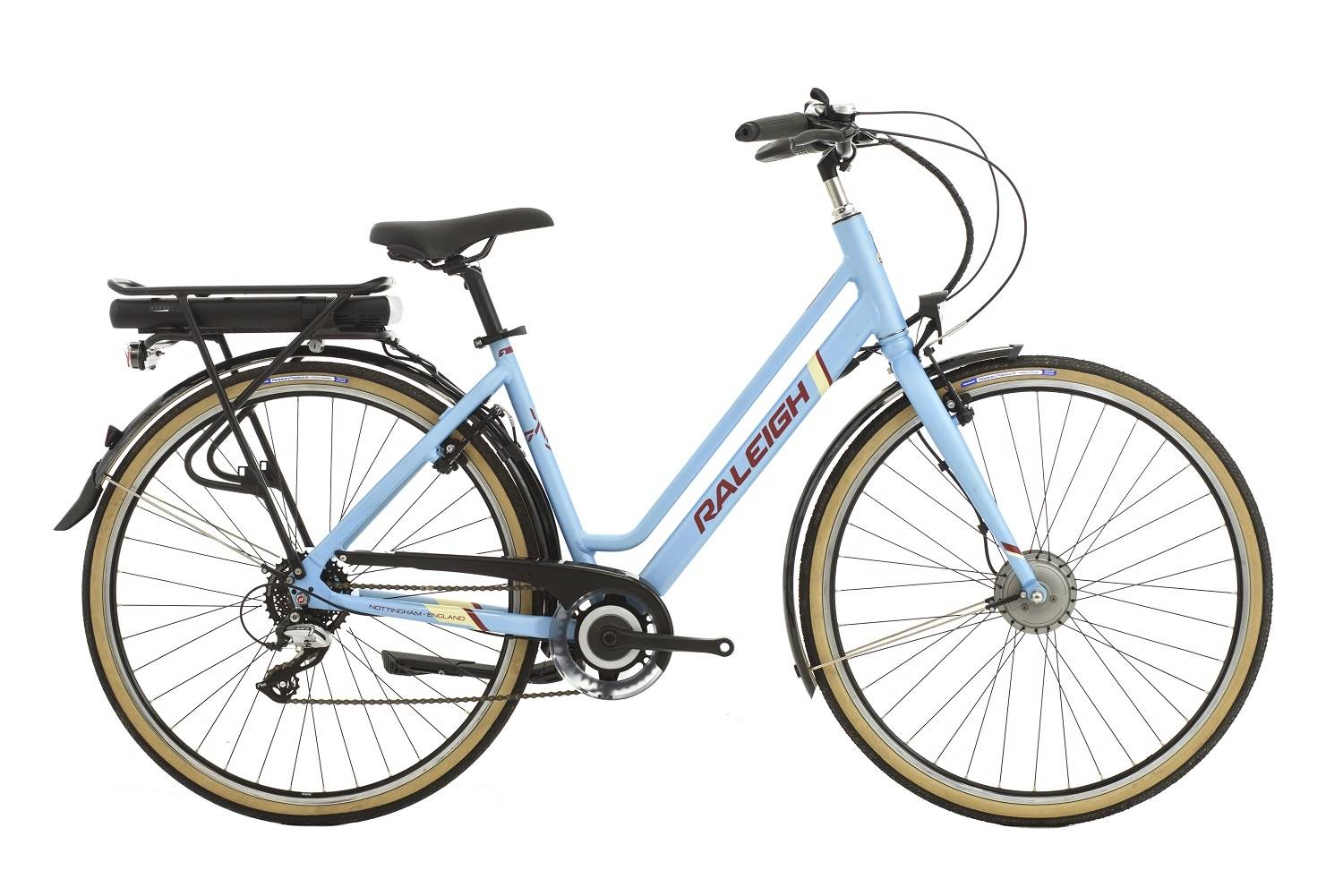

Raleigh Array Step Through Emotion Electric Bike Denim Blue

Raleigh designed the Array to be the best looking ebike on the market and we think they delivered. Great looks, comfortable riding position and smooth power delivery from the Emotion motor.

Raleigh Array Step Through Emotion Electric Bike Denim Blue Raleigh Array Step Through Emotion Electric Bike Denim Blue Thumbnail
  • £1,045.00
  • Save: £55.00
    Extra 5% OFF
  • Enter your email address below to be notified when this product is back in stock.

    Remind me

    Raleigh Array Step Through Emotion Electric Bike Denim Blue

    The best looking electric bike on the market? Raleigh certainly designed it to be! With great looks, a comfortable riding position, this e-bike delivers a smooth power curve as it accelerates on the road with style.

    Raleigh Array features

    The denim blue Raleigh Array Step Through’s all-new E-motion motor and software built into the Emotion system ensures that the Array has a smooth and progressive acceleration to ensure you have a comfortable, controlled journey. With enough torque to give you a kick as you need it, the 250 Watt motor is designed to improve road safety and speed compared to traditional bikes.

    The 8.2 amp hour, 36 volt battery can allow you do do up to 60 miles on a ride, which is more than enough for a regular commute to work or while you are dashing about town all day. You can put as much or little effort as you like into your running around through the Shimano 7 speed gear system, that with its 32 tooth big rear cog can see you ride up even the steepest hills without breaking into a sweat, while the twist shift gear selector ensures you’re in the right gear all the time.

    The bike rolls smoothly on the road with its CST Zeppelin high volume tyres that have puncture protection and reflective stripe make your ride more comfortable and safely.

    Beauty in engineering and appearance - with its great looks and performance to match, this electric bike is very much one that practices on the road what it preaches in appearance!

    Key Features:

    • Motor: E Motion 36v 250w
    • Frame: Aluminium 6061
    • Forks: Raleigh E bike trekking fork
    • Gears: Shimano 7 speed gear
    • Brakes: Raleigh V-Brake
    • Battery: E Motion 300Wh (8.3Ah) up to 68 Miles*


    • Rims: Double Wall rim 36 hole 700c
    • Tyres: CST 700 x 40c with relective stripe and Tan side wall

    * This will vary depending on weight of user, terrain and mode of pedal assistance used.


    Stem: Alloy quill stem

    Handlebars: Riser bar

    Grips: Selle Royal soft grip

    Saddle: Selle Royal Milo + Womens

    Seatpost: Alloy micro adjust

    Seat clamp: 31.8 seat clamp


    Motor: E Motion 36v 250w Motor

    Battery: E Motion 300Wh (8.2Ah), 36V

    Display: E Motion Display, 5 assist levels

    Range: Level 1 Eco Mode 30-68 Miles Level 5 Boost 14-22 Miles


    Frame: Aluminium 6061

    Fork: Raleigh E bike trekking fork

    Headset: Semi-Integrated


    Shift levers: Shimano Revoshift 7 Speed

    Brake levers: Raleigh V-Brake

    Rear derailleur: Acera 7 speed

    Front brake: V-Brake

    Rear brake: V-Brake

    Crankset: Alloy forged 170mm, 38T

    Bottom bracket: 120mm square taper

    Freewheel/cassette: 7 speed 12-32 cassette

    Chain: KMC Z51 7 speed

    Pedals: Comfort Pedals with Anti Slip


    Front wheel: Double Wall rim 36 hole 700c on E Motion Motor hub

    Rear wheel: Double Wall rim 36 hole 700c on Cassette hub

    Front hub: E Motion Motor Hub

    Rear hub: Raleigh 7 speed cassette hub with Raleigh Dome nuts

    Rims: Double Wall rim 36 hole 700c

    Front tyre: CST 700 x 40c with relective stripe and Tan side wall

    Rear tyre: CST 700 x 40c with relective stripe and Tan side wall

    Inner tubes: 700x40c presta

    Battery Type8
    Brake TypeV Type
    Charge Time3-5
    Drive TypeFront Hub
    GenderMen & Unisex
    Womens Specific
    MotorE Motion
    Top Speed15.5
    Wheel Size700c

    E Motion 300Wh (8.2Ah) 36V

    Charger included.
