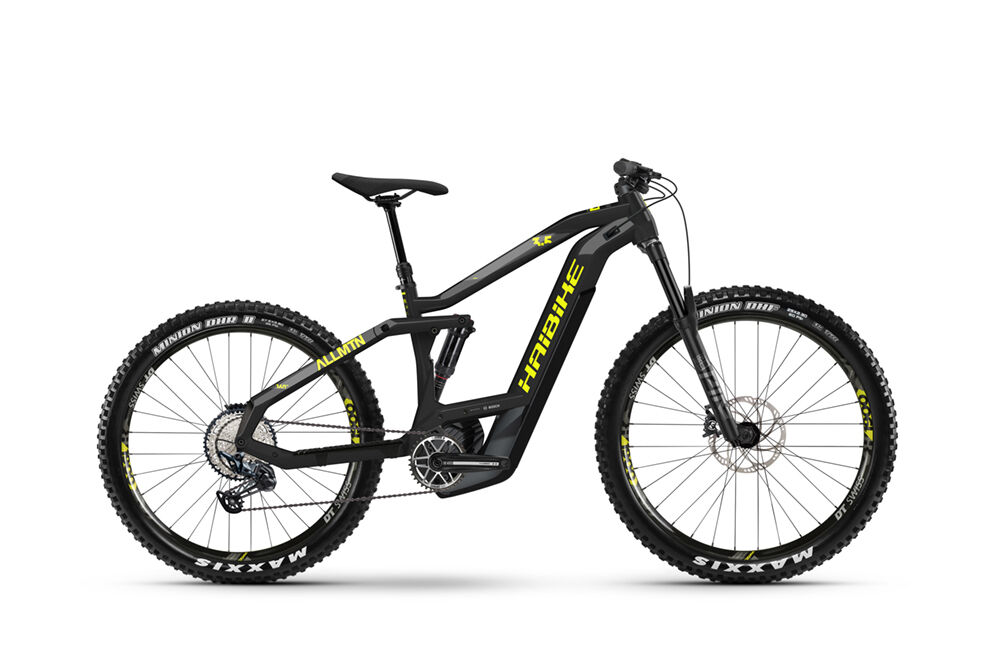

Haibike XD AllMtn 3.5 2020 Electric Mountain Bike
While both machines have been upgraded on last year’s editions, not least with their new-for-2020 Bosch Performance CX motors, the XDURO MTN 3.5 is a definite step up on its slightly smaller brother.
Both have 625Wh batteries that will give around 60 miles of mixed riding and both have the new Performance CX motor that is smaller and lighter than the version used for years before. The 3.5 though has better brakes, gears and shocks.
ALLMTN range of e-bikes
Built for extreme riding, the Haibike ALLMTN range of extreme e-MTBs are capable of almost anything you can chuck at it. Magazine reviewers consistently write in superlatives about this range of e-MTBs and have been known to put them through tough tests only for the bikes to be intact and ready for the next run. Where interests you that you couldn’t handle before? If that’s a place other eMTB riders don’t go then you probably can on the ALLMTN range of e-MTBs.
Bosch Performance CX
Updated for 2020, the Bosch Performance CX gives a real kick when asked for yet can read your riding so it doesn’t spin out when pulling away. Torque is where this is at, pulling at up to 75Nm, and delivering a performance curve that allows for blistering acceleration when you need or just helping you up those hills as you let the machine take the strain. A 625Wh in-tube battery is just where the weight is needed, yet also can give you 60 miles of mixed riding - more than enough for a day in the saddle! The Bosch Purion controller/display will show you just the parameters you need, including speed and estimated battery distance.
Key Features:
- Motor: Bosch Performance CX
- Battery: I625WH
- Suspension Fork: RockShox Pike Select RC air/oil 160
- Wheel: 27 inch
- Display: Bosch Purion
- Gears: 12 Speed
Specification
Frameset
- Frame: Aluminium 6061, Integrated Motor, SkidPlate, thru-axle M12 (1.75) x 148mm, disc brake Post Mount. Travel: 150mm
- Rear Suspension: Sram RockShox Deluxe Select Plus Air
- Suspension Fork: RockShox Pike Select RC air/oil 160
- Headset: A-Head TaperedaluminiumFeimin FP-H858 Alloy 1,5"
Components
- Stem: Haibike ComponentsTheStem 2A-headJD-ST202A
- Handlebars: Haibike ComponentsTheBar ++780JD-MTB463A
- Grips: HaibikeMTB gripsVLG-1751 AD2
- Saddle: Selle RoyalVivo1216HRN
- Seatpost: Haibike ComponentsDropper-Post Remote 31.6aluminiumtelescopeHodaka
Electrical
- Motor: Bosch Performance CX
- Battery: I625WH
- Display: Bosch Purion
Groupset
- Shift Levers: Shimano Deore SLX M7100
- Brake Levers: MaguraMT7 HC-leveraluminiumcarbotecture
- Rear Derailleur: Shimano XT M8100 12 Speed
- Front Brake: Magura MT7
- Rear Brake: Magura MT7
- Crankset: Haibike ComponentsThe Crank ++HB25
- Chain Ring: Haibike Components The Chainring aluminium 38
- Bottom Bracket: Integrated In Motor
- Freewheel/Cassette: Shimano SLX M7100 10 51
- Chain: ShimanoSLX M7100
- Pedals: Freeridepedalaluminiummit ReflektorVPE-527
Wheelset
- Front Wheel: DT SwissH1900
- Rear Wheel: DT SwissH1900
- Front Tyre: MaxxisMinion DHF II65-622
- Rear Tyre: MaxxisMinion DHR II71-584
Accessories
- Extras: BoschStandard Charger 4A
Battery Size | I625WH |
Brake Type | Disc |
Colour | Black Yellow |
Frame Size | 41cm 44cm 47cm 50cm |
Gears | 12 |
Gender | Men & Unisex |
Material | Alloy |
Motor | Bosch Performance CX |
Suspension | Full |
Type | Mountain Bike |
Wheel Size | 27 |
Tell me more?
To hit the dirt running, the ALLMTN 3.5 has a Shimano Deore SLX M7100 gearing system that runs over a 10-51t rear sprocket. This offers better ratios than the 3.0.
Brakes are Magura MT7 on 203mm rotors, front and rear.
Front shocks are air/oil sprung, 160mm travel RockShox Pike Select RC, supported with the 65mm travel, air sprung RockShox Deluxe Select Plus rear damper.
Though the three points above are improvements on the 3.0, you still have the same great 27.5” wheels and Maxxis Minion DHF II / Maxxis Minion DHR front and rear tyres. There’s also the Haibike Components Dropper-Post for different postures in different terrains.
